12.4. LED Status Display
The LED status display indicates the bus status (LED green and red).
Bus LED green
Bus LED red

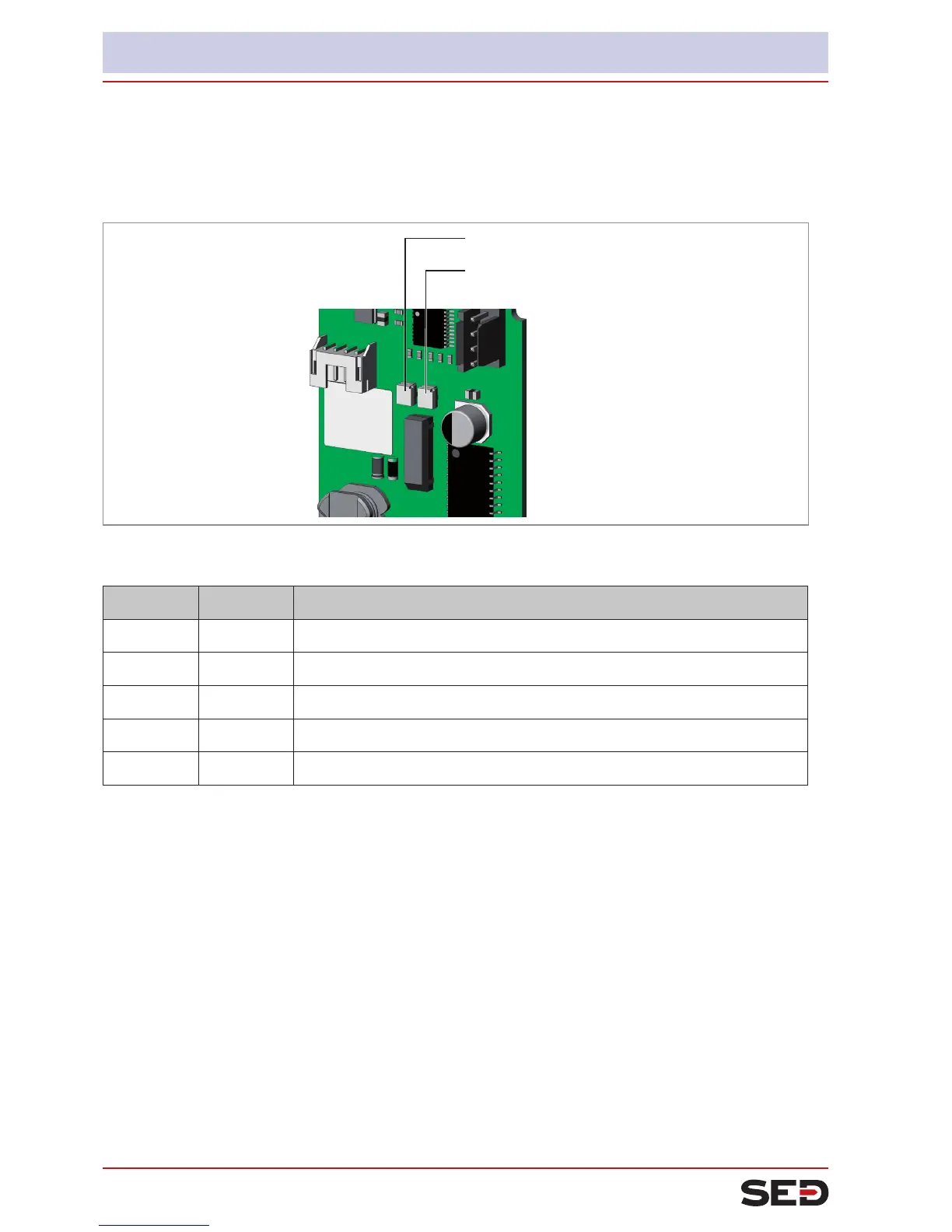

Fig. 28: LED status display AS Interface
LED green LED red
off off POWER OFF
off on Nodatatrafc(expiredWatchDogatslaveaddressdoesnotequal0)
on off OK
ashing on Slave address equals 0
off ashing Sensor supply overloaded (periphery error, manual actuation activated)
Table 22: LED Status Display AS Interface
