Installation
Type 024.16.720
9.3. Rotating the positioner for
process valves
Iftheconnectingcablesorhosescannotbe tted properlyfollowinginstallation of the processvalve, the
positioner can be rotated contrary to the actuator.
Fastening screw (2x)
Fluid connection
Positioner
Actuator

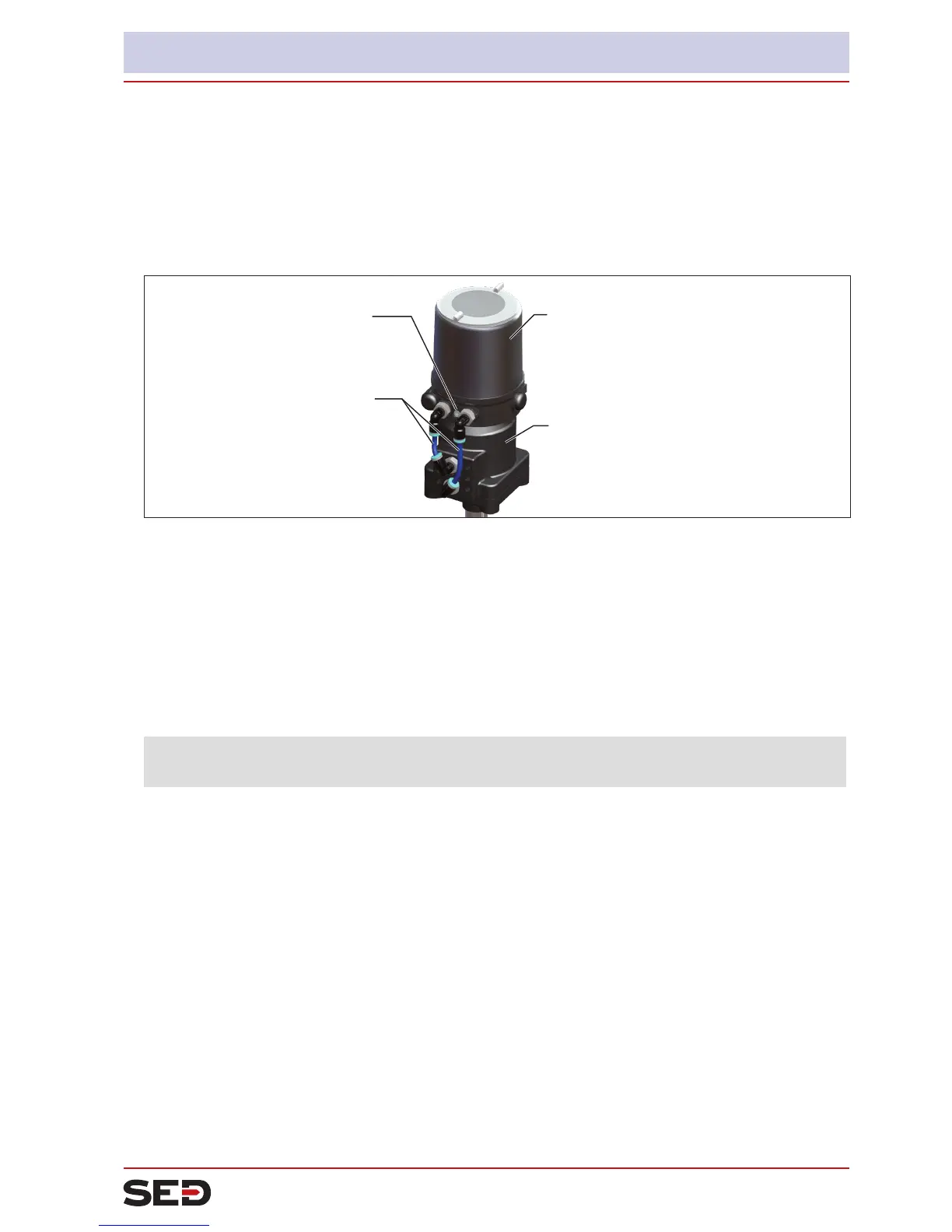

Fig. 24: Rotating the positioner
Procedure
→ Loosentheuidconnectionbetweenthepositionerandtheactuator.
→ Loosen the fastening screws countersunk in the side of the body (hexagon socket wrench size 2.5).
→ Rotate the positioner into the required position.
NOTE!
Too high torque when screwing in the fastening screw does not ensure protection class IP65 / IP67!
The fastening screw may be tightened to a maximum torque of 0.5 Nm only. •
→ Tighten the fastening screws hand-tight only (maximum torque: 0.5 Nm).
→ Re-attachtheuidconnectionsbetweenthepositionerandtheactuator.Ifrequired,uselongerhoses.
