Operation and function
Type 024.16.720
14.1.1. DIR.CMD -
Effective Direction of the Position Controller Set-Point Value
You can use this function to adjust the effective direction between the input signal (INPUT) and the nominal
position of the actuator.
Factory setting: DIP switch set to OFF (ascending)
DIP Switches Position Function
1 ON
Reversal of the effective direction of the set-point value (DIR.CMD)
(set-pointvalue20–4mAcorrespondstoposition0–100%),fall
OFF Normal effective direction of the set-point value
(set-pointvalue4–20mAcorrespondstoposition0–100%),rise
Table 26: DIP switch 1
The effective direction (DIR.CMD) can only be changed via DIP switch 1 in the positioner.
Nominal position
Input signal
(INPUT)
rise
fall

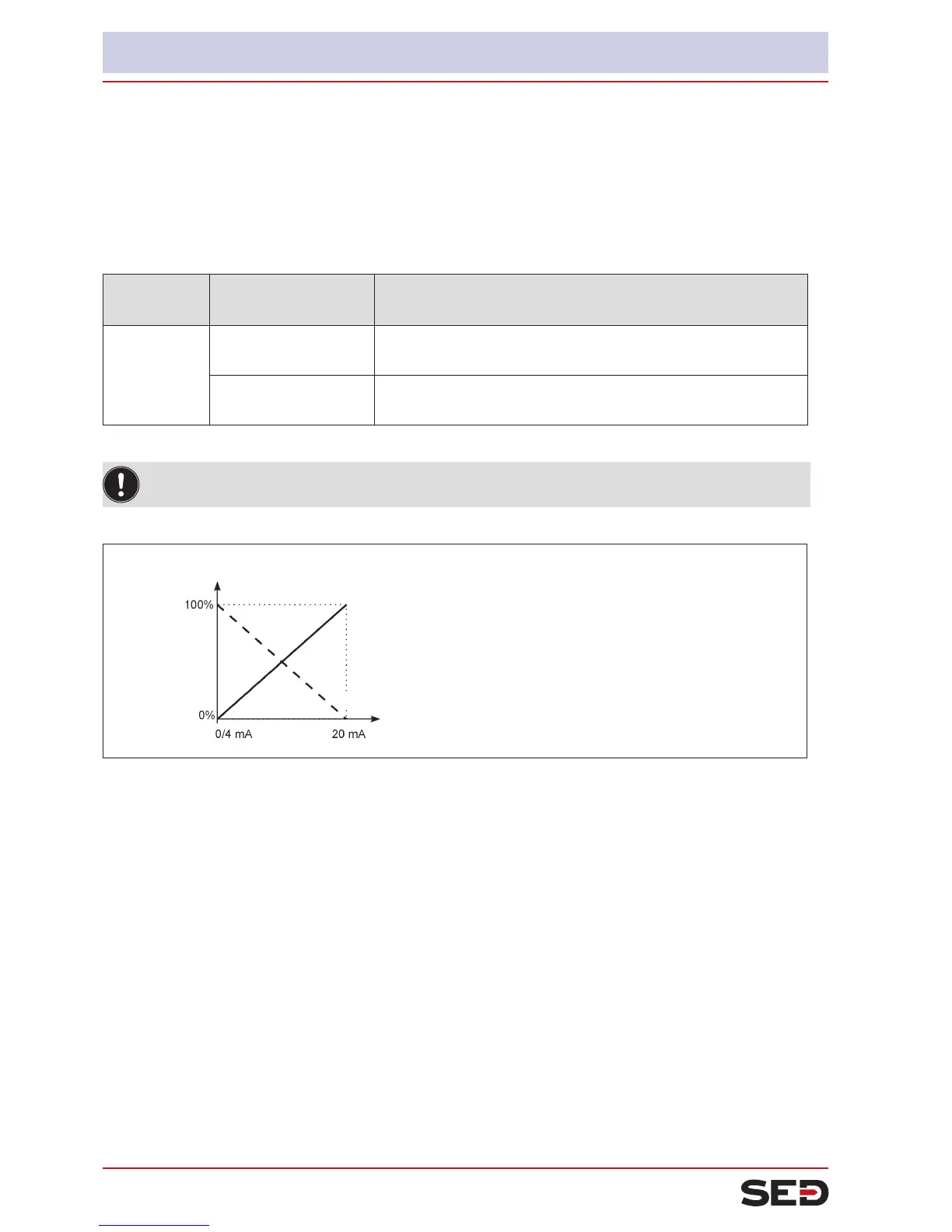

Fig. 33: DIR.CMD graph
