30
Control and display elements
Type 024.16.720

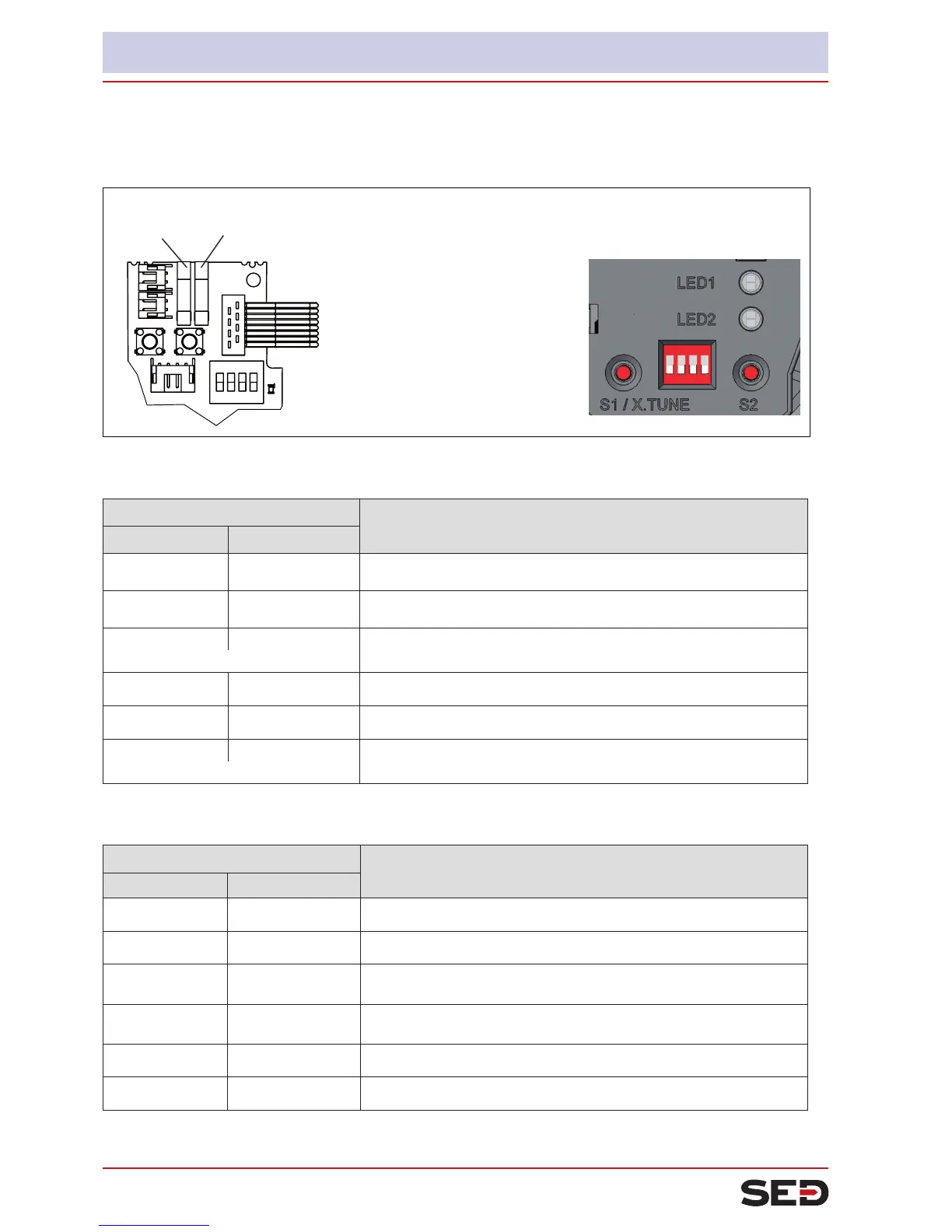

8.5. Display of the LEDs
Version 1 Version 2
LED 1 LED 2
LED 1
(green /
red)
Display of mode
statuses
AUTO, MANUAL,
X.TUNE and FAULT
LED 2
(green /
yellow)
Display of the
actuator status
(open, closed, opens
or closes)
Fig. 11: LED display
LED1(green/red)
LED statuses
Display
green red
on off Acceleration phase when Power ON
ashesslowly off Operating status AUTO (AUTOMATIC)
ashing ashing MANUAL operating status
alternating
ashesquickly off
X.TUNE function
off on
ERROR (see chapter entitled “8.6. Error Messages”)
ashing ashing AUTO operating status for sensor break detection
slow
Table 9: Display LED 1
LED2(green/yellow)
LED statuses
Display
green yellow
on off Actuator closed
off on Actuator open
ashesslowly off
remaining control deviation
(actual value > set-point value)
off ashesslowly
remaining control deviation
(actual value < set-point value)
ashesquickly off Closing in MANUAL operating status
off ashesquickly Opening in MANUAL operating status
Table 10: Display LED 2
