Electrical Installation 24 V DC
Type 024.16.720
Powersupply(circularplugM12,8-pole)
Pin Wire color
1)
Conguration External circuit
4
3
yellow
green
+ 24 V
GND
4
3
24 V DC ± 10 %
max. residual ripple 10 %

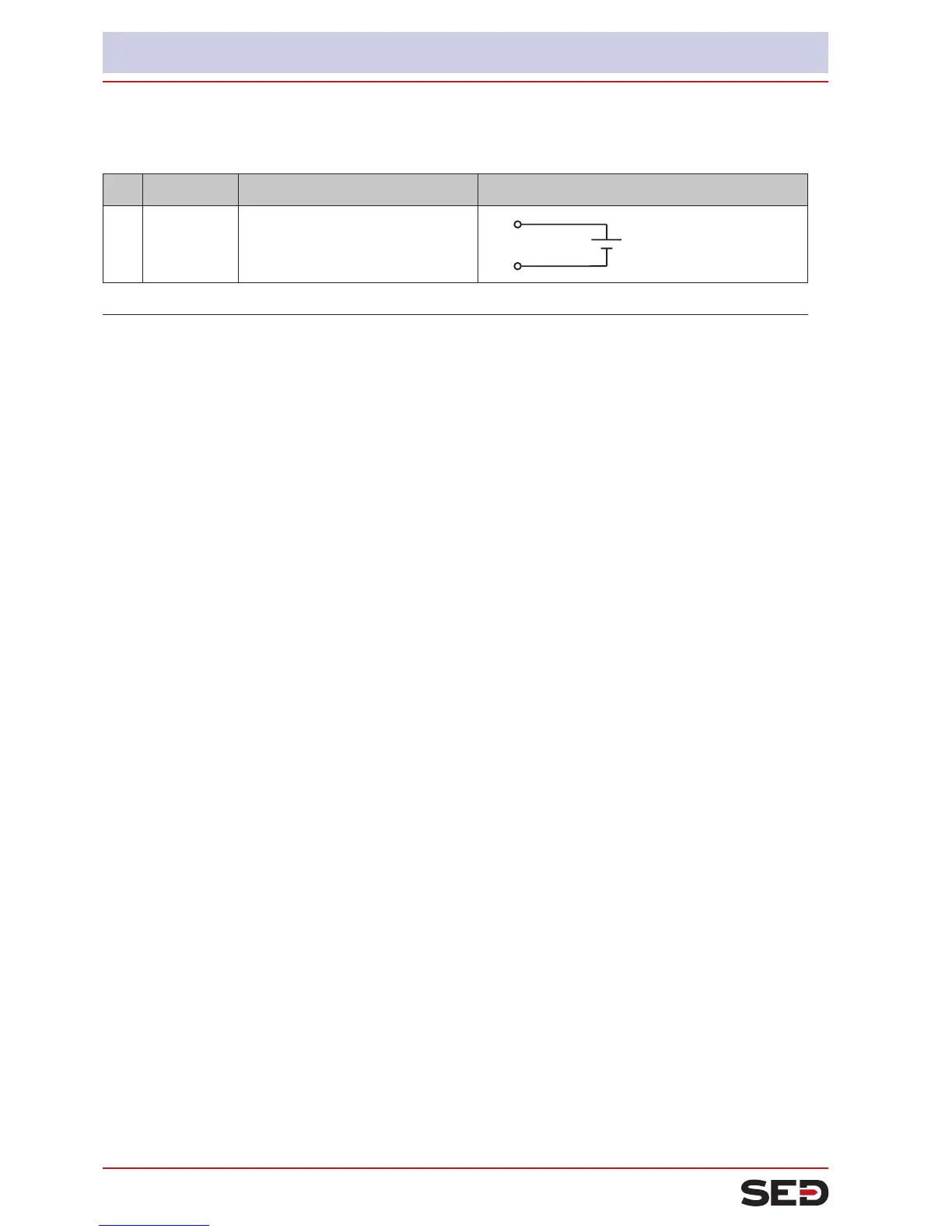

Table 16: Pin assignment - power supply (circular plug M12, 8-pole)
1)
The indicated colors refer to the connecting cable available as an accessory (919061)
When the power supply is applied, the positioner is operating.
→ Make the required basic settings and actuate the automatic adjustment of the positioner, as described in
the chapter entitled “13. Start-Up”.
