Fastening in the installation location (adjustment of the adjusters)
Make sure all adjusters touch the oor. If they do not, the cabinet could move and
cause an accident.
There are four casters and four adjusters on the bottom of the cabinet. Once the installation position is determined,
move the adjusters down to the ground and adjust them so that this product is level.
1
Move the machine to the installation position.

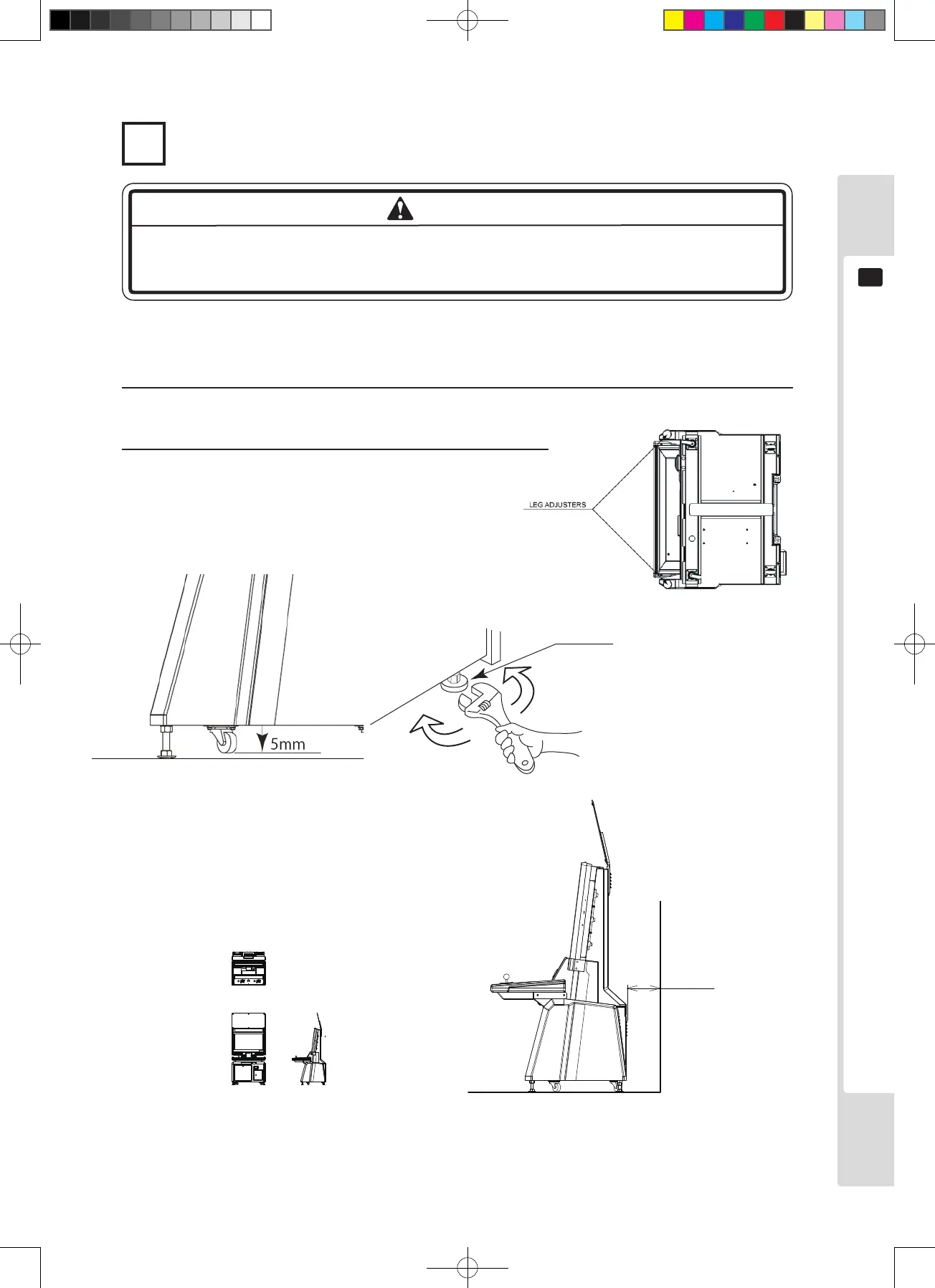

Figure6.1c Underside plan
Figure 6.1e
1/100 scale.
Refer to the layout leading to
the installation position.
Figure 6.1f
Allow space for air movement on
the side with ventilation openings.
2
Bring the adjusters into contact with the ground. Use a spanner to
adjust the four adjusters so that the product is held level.
Figure6.1c Underside plan
