Sega Lindbergh Universal - Replacing the design components

Replacing the game board
47
13
Replacement may be required for some game titles.
Basically, replace the billboard sheet, the instruction sheet and the sub-instruction sheet.
Refer to “9-2” for replacement of the instruction sheet.

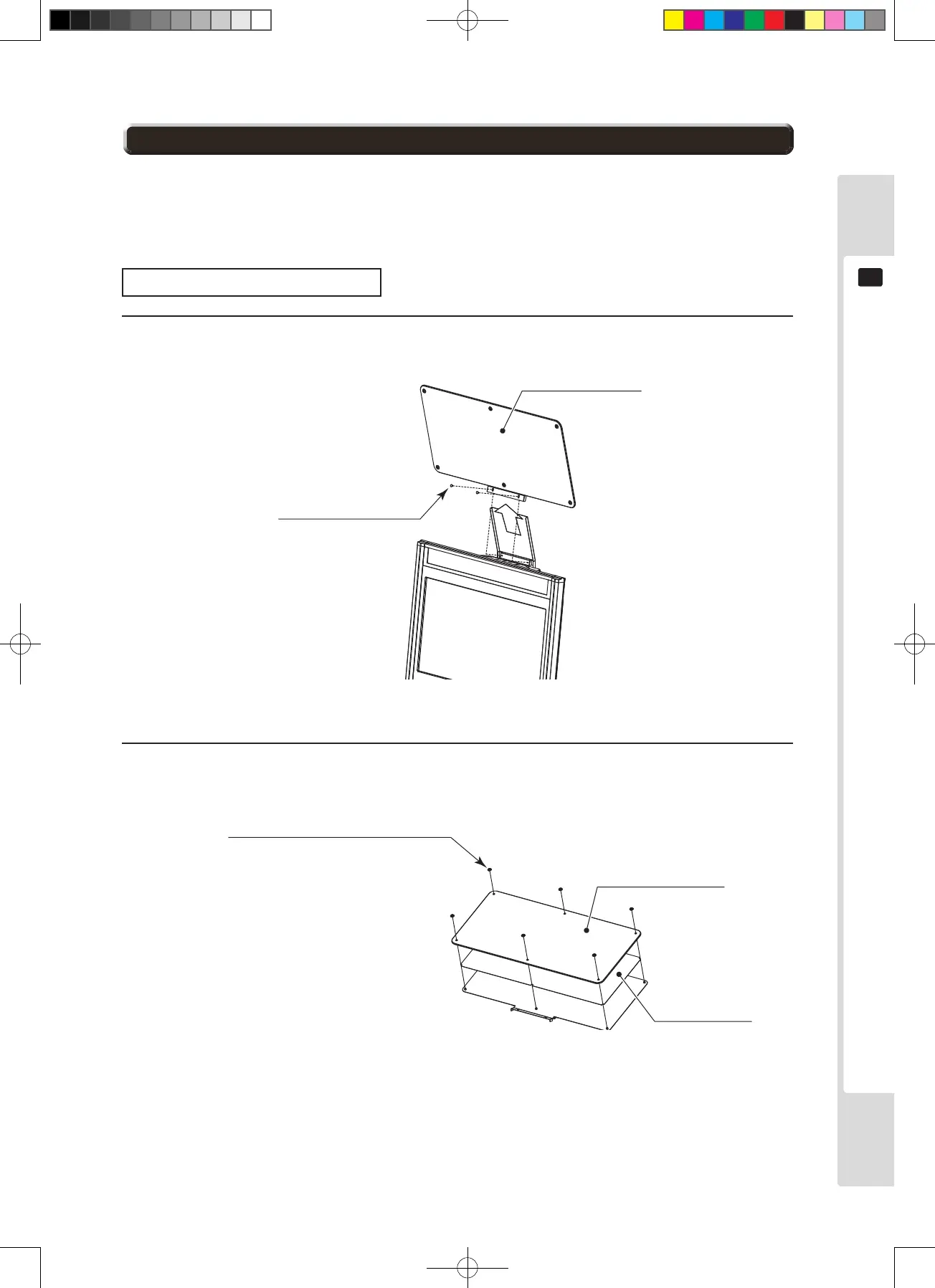

Replacing the billboard sheet
1
Remove the two truss screws and lift the billboard assembly up to remove it.
Billboard assembly
Truss screw (black) x 2
M4 x 8
Figure 13.2a
2
Remove the six Allen screws and the billboard front plate to replace the billboard sheet.
Billboard sheet
Billboard front plate
Allen screw x 6
M4 x 6, using special dished washer
Figure 13.2b
13-2 Replacing the design components
