Wire color reference table
16

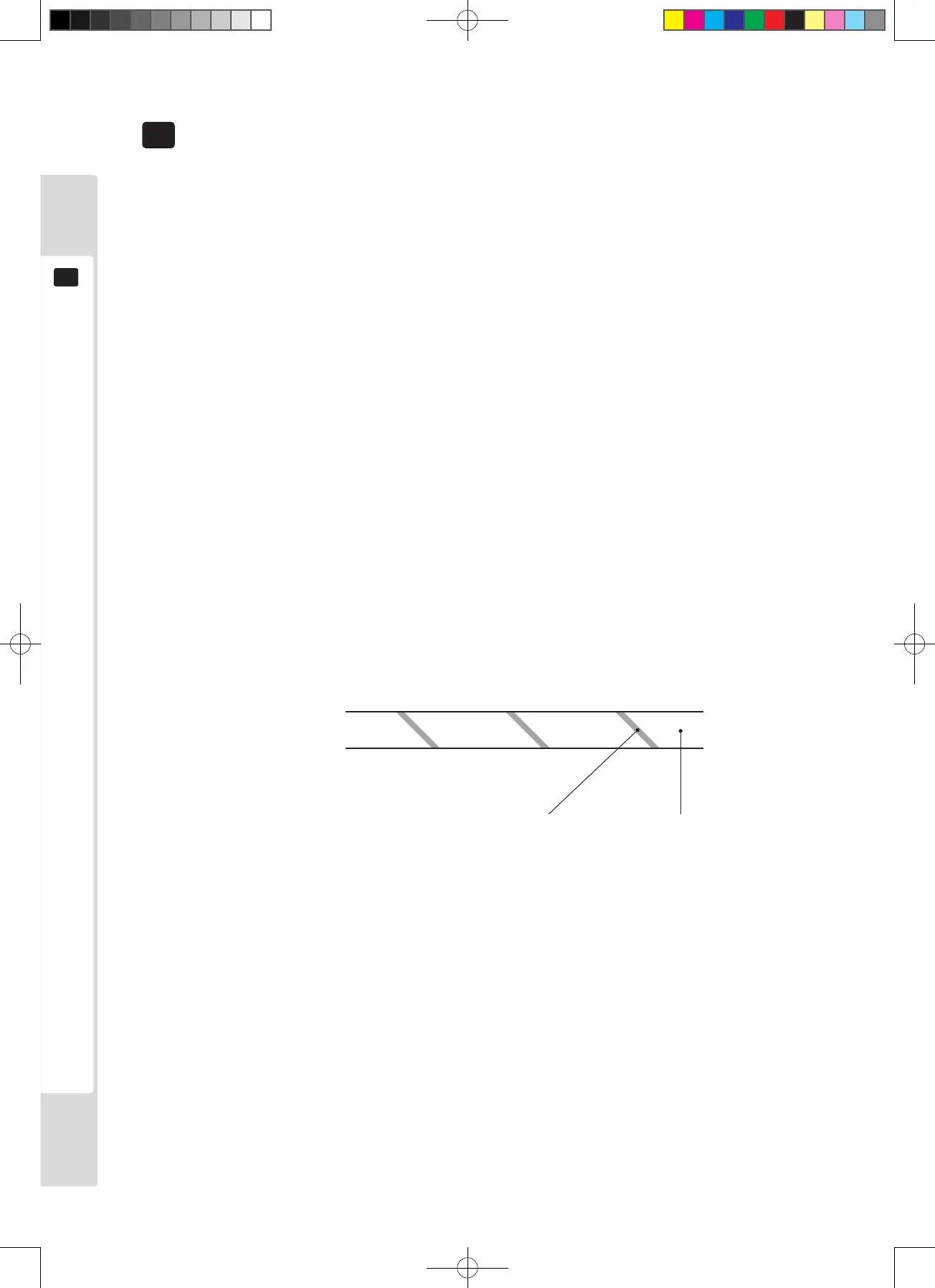

Note 1 If the units digit of the code is non-zero, the tens digit indicates the background color and the
units digit indicates the spiral color.
E.g. 51... White/Red
Note 2 The letter after the wire color code indicates the thickness of the wire.
U: AWG16
K: AWG18
L : AWG20
None: AWG22
The wire color codes used in the overall wiring diagrams in the next chapter are as stated below.
CODE WIRE COLOR
10 RED
20 BLUE
30 YELLOW
40 GREEN
50 WHITE
70 ORANGE
80 BLACK
90 GRAY
A PINK
B SKYBLUE
C BROWN
D PURPLE
E LIGHT GREEN
RED WHITE
Wire color reference table
16
