Sega Lindbergh Universal - Replacing the fluorescent lamp

44
Replacing the uorescent lamp
12
3
Remove the 6screws and the light box lid assembly to replace the uorescent lamp.

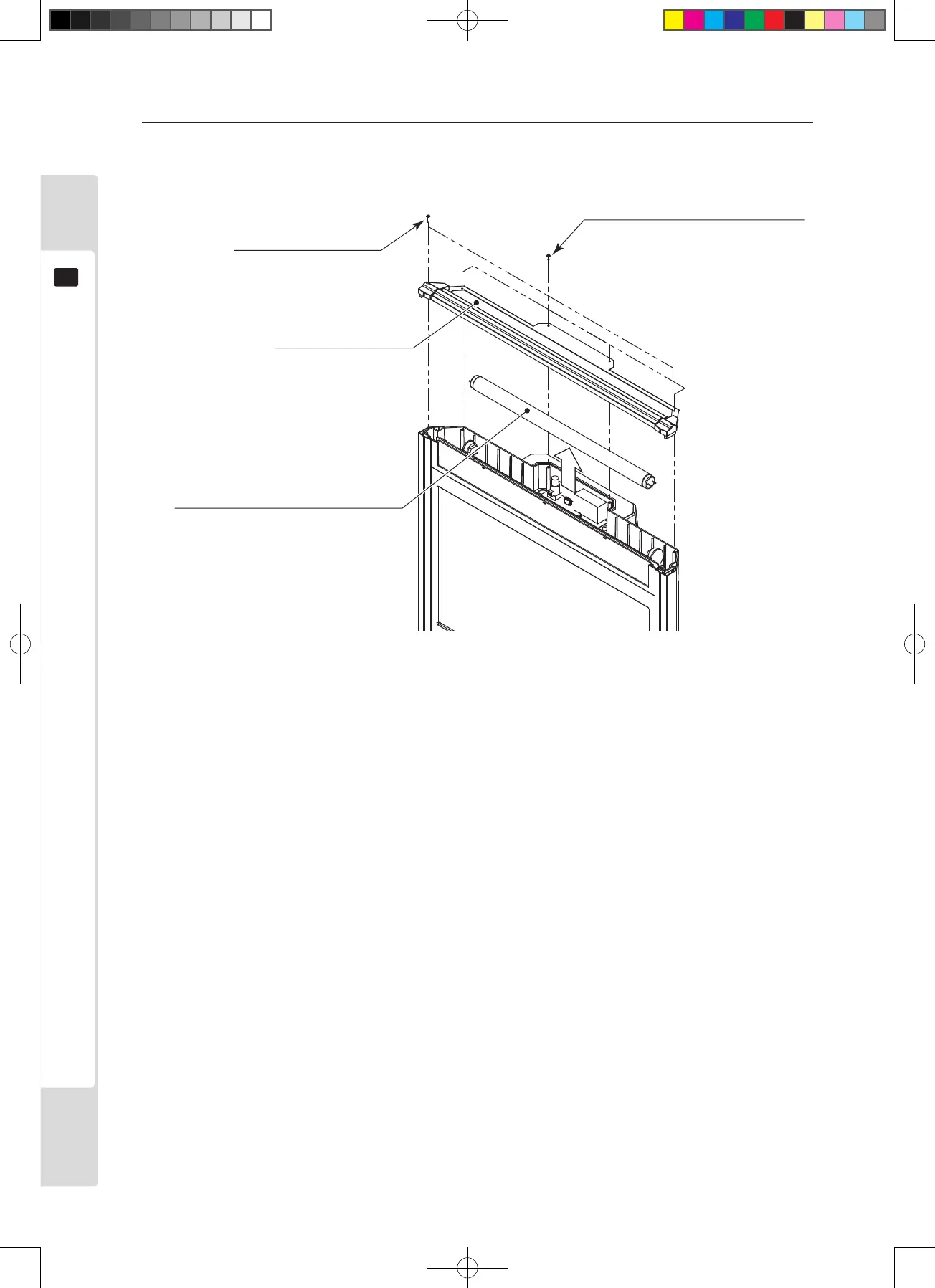

Figure 12b
S-tight screw x 2
M3 x 16, with flat washer
Light box lid assembly
FL TUBE
18W T8 600MM (390-0100-18DUK)
ASSY FL TRAY
LCB 100V 18W (390-0100-18XUK)
Screw (black) x 4
M3 x 12, with flat and spring washer
