Sega TARGET BRAVO OPERATION GHOST - REMOVING THE CONTROLLER SUPPORT

CONTROL UNIT
69
10
1
Refer to 10-1“REMOVING THE CONTROL UNIT “ and take o the control unit.
2

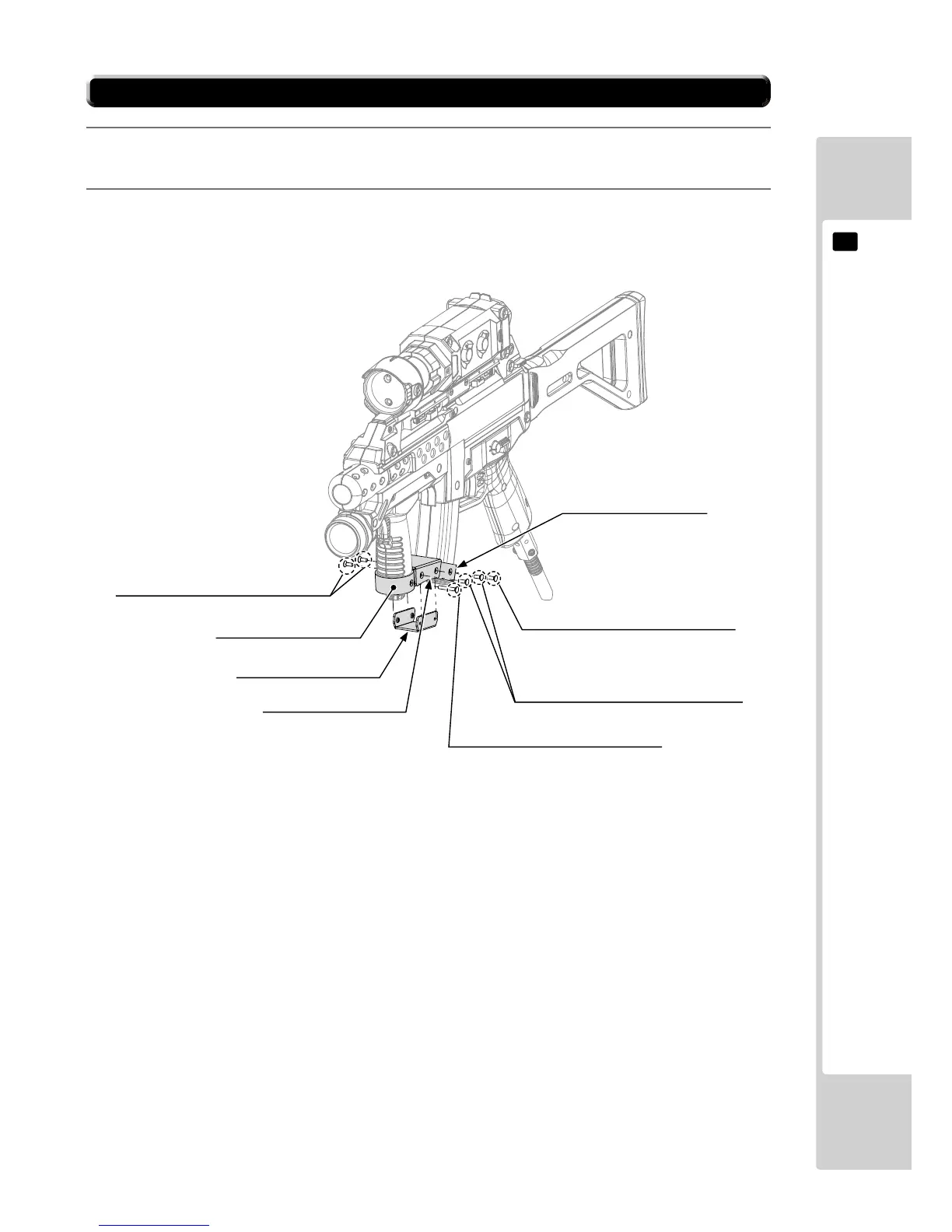

Using an Allen wrench, remove the 6 hexagon socket head screws, and take o the 4 controller supports.
NOTE: When reattaching reinforcement parts, always refer to the ture to ensure that screws are not put into the
wrong places. Also, regularly check that the screws have not loosened over time.
M3x8
HEXAGON SOCKET HEAD SCREW (1)
HEXAGON SOCKET HEAD SCREW (1)
M3x16
M3x20
CONTROLLER SUPPORT
CONTROLLER SUPPORT
CONTROLLER SUPPORT
CONTROLLER SUPPORT
HEXAGON SOCKET HEAD SCREW (2)
HEXAGON SOCKET HEAD SCREW (2)
M3x8
10-2 REMOVING THE CONTROLLER SUPPORT
