11-3 ADJUSTMENT METHOD
All adjustment values are set accurately at the time of shipping from the
factory. Do not re-adjust these values needlessly or apply adjustments not
specied in this manual. The display may not appear properly if the values
are incorrect.
CONTROL - ADJUSTMENT PROCEDURE
This sections explains basic control procedures for making adjustments using the buttons on the 'Monitor Adjustment
Board'
This Adjustment Board and Monitor Power Supply are located behind the Rear Door.
Procedures herein are to be carried out by site maintenance personnel or other
qualied professionals. Work should not be carried out by personnel without the
necessary skill or technology. Work carried out by unqualied persons may cause
serious accidents, including electrocution.

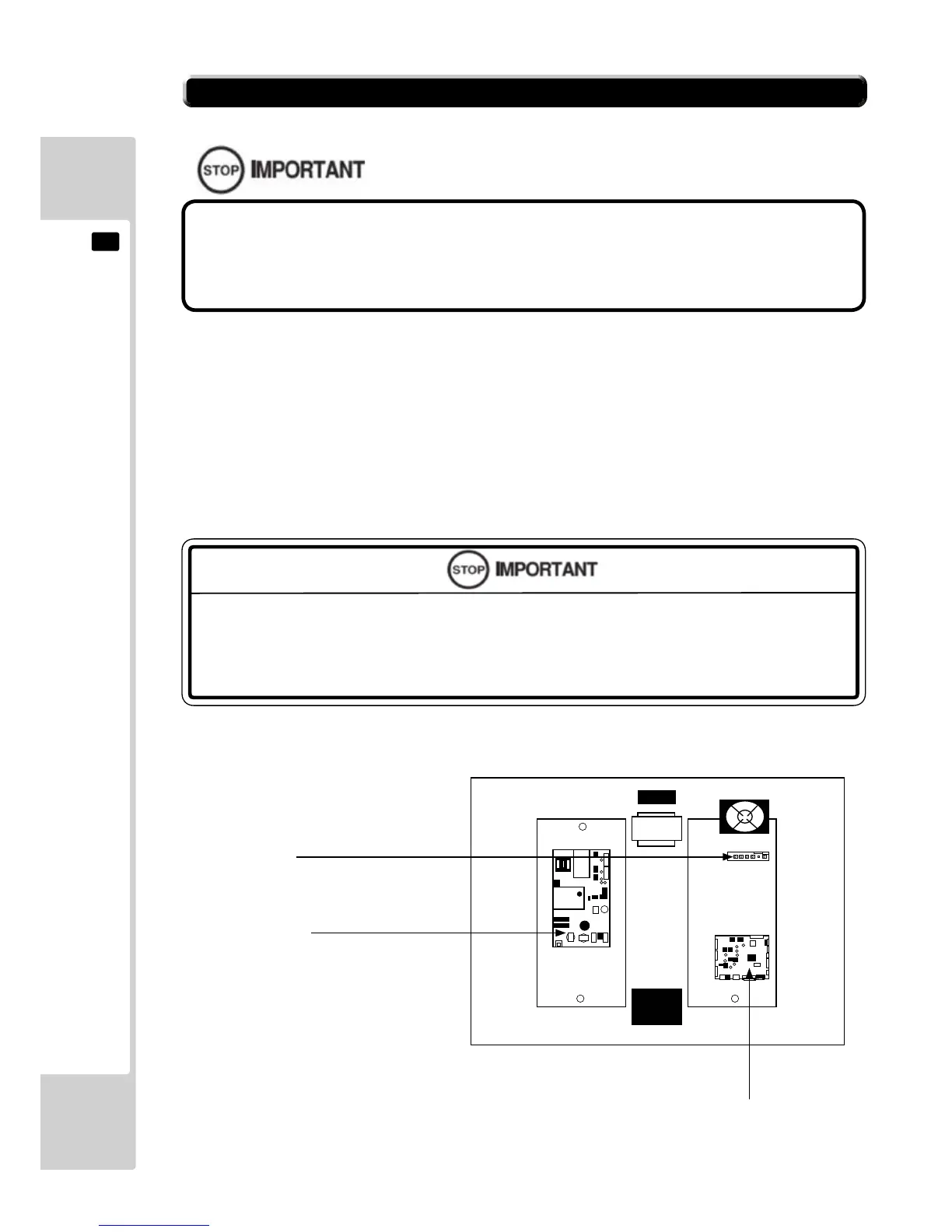

42” LCD Panel
Power Supply
LCD Controller PCB
On-screen display controls
