55” LCD Panel
On-screen display controls
Power Supply
LCD Controller PCB
11-3
ADJUSTMENT METHOD
Button Names and Functions
MENU: Turn the Picture Menu display ON and OFF.
SELECT: Gains entry to the Item selected in the menu (highlights in yellow when selected).
Exits the Item adustment. Any changes made during this operation are actioned.
DOWN: Moves the cursor (Black Bar) down to select a menu item.
Decrease the value of, or change, a selected menu item.
UP: Move the cursor (Black Bar) up to select a menu item.
Increase the value of, or change, a selected menu item.
LED: LED illuminates green: Monitor is operating.
LED ashes red: Power is o.
POWER: Turns the LCD Display ON and OFF (usually, it’s not necessary to operate).

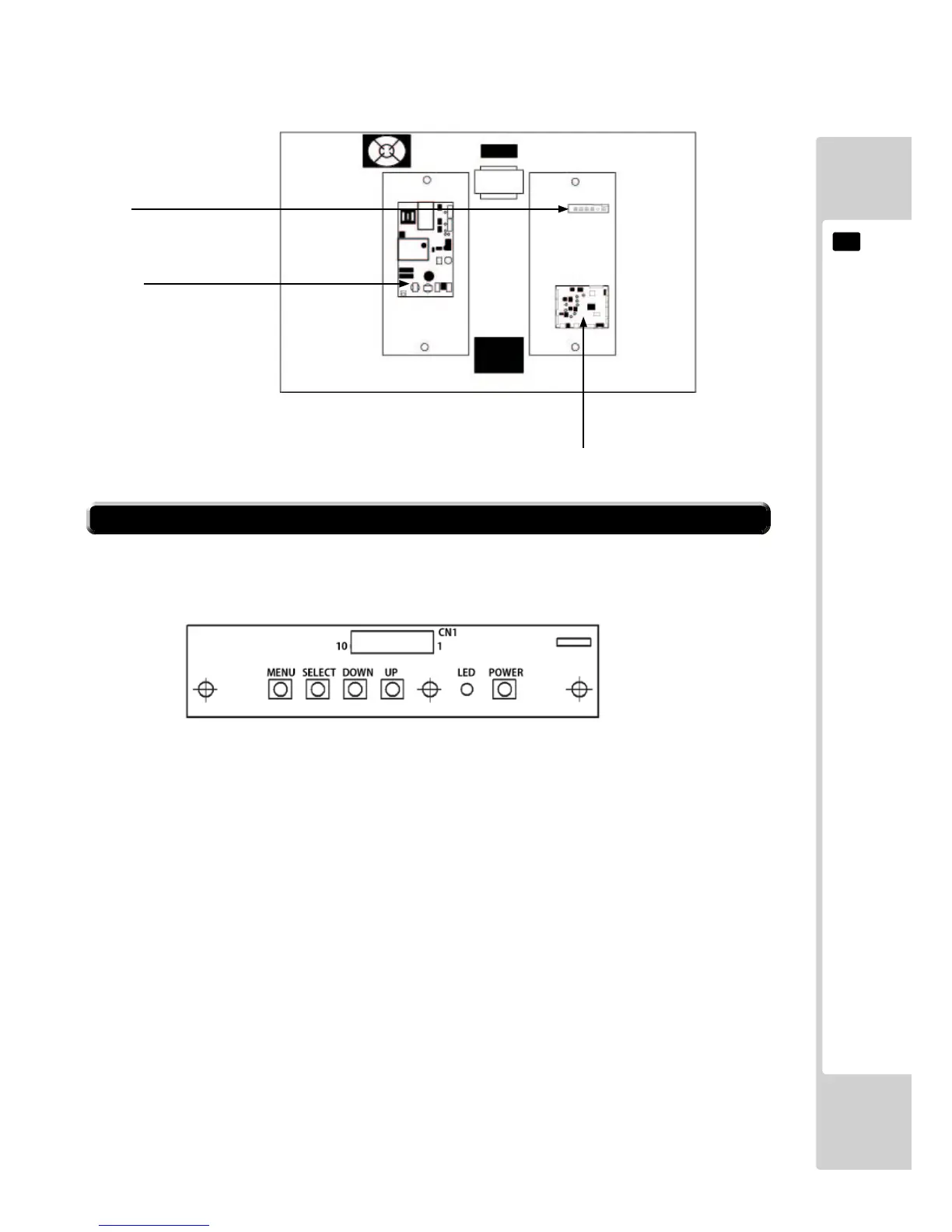

11-3 Fig. 03
To Next Page
