89
3
Lift the Control Panel to reveal the Star Button Lamp Housings. Hold the housing and gently pull to
disengage the lamp housing from the button. The Bulb is a “push to t” bulb and is removed by pulling the
bulb from within the housing.
Note:
Do not twist the bulb - twisting the bulb will cause it to break.
1
Before replacing any lamp, TURN THE POWER OFF.
2
To gain access to the Start Lamps, rst remove the Control Panel by unscrewing the 4 M4x16 Socket Cap
Screws (4) tted at each corner.

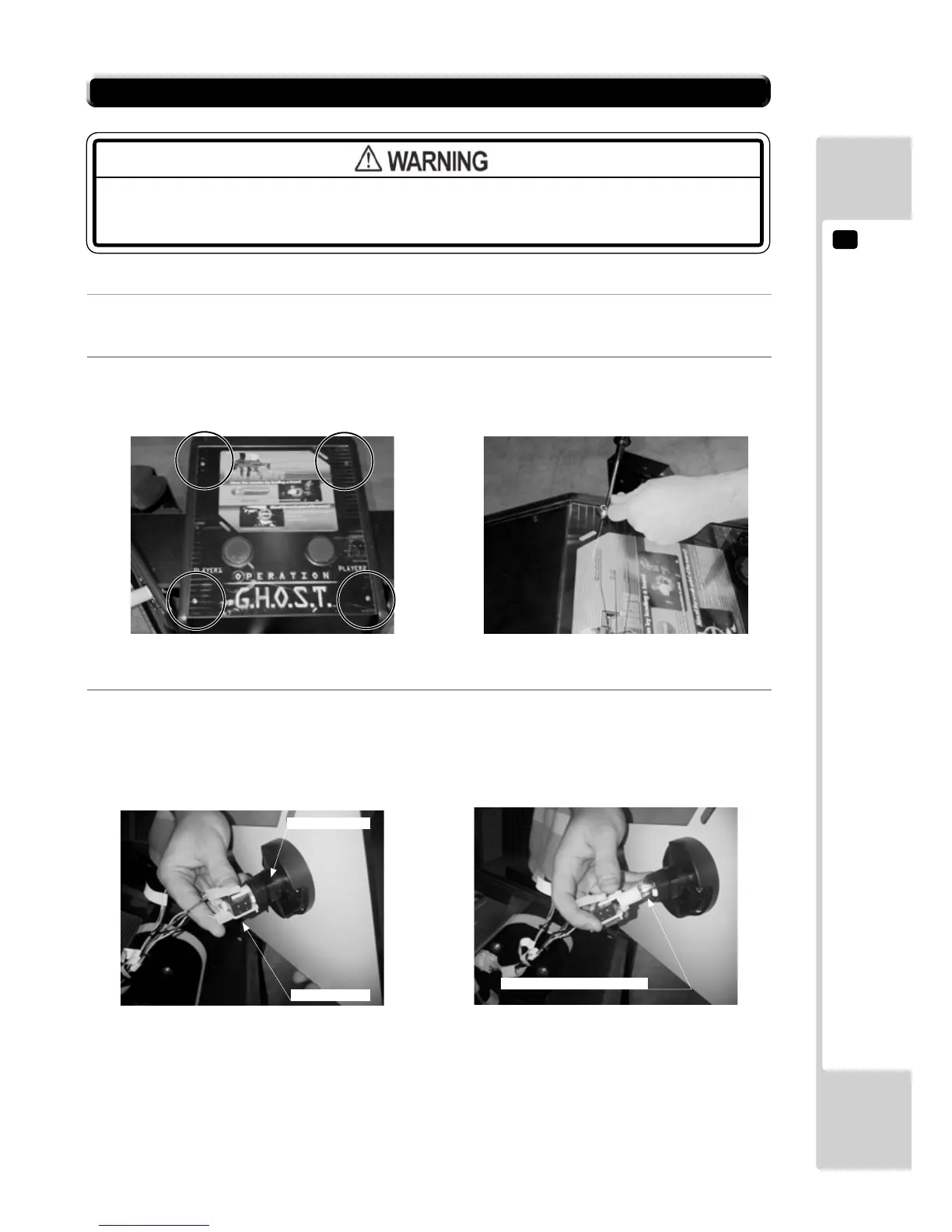

13-2 START BUTTON LAMP REPLACEMENT
MAKE SURE THAT THE MAIN SUPPLY VOLTAGE TO THE MACHINE IS SWITCHED OFF
BEFORE ATTEMPTING TO CARRY OUT THIS WORK
Button housing
Bulb 12v 1.2x Wedge type
Lamp housing
