MAINTENANCE,S
T
ORA
GE AND TRANSPOR
T
A
TION
LIFTING AND
SUPPOR
TING THE VEHICLE
Place v
ehicle on a flat non slippery ground.
Eng
age the 4WD
mode.
Ensur
e vehicle shift lev
er is set to P
ARK.
When lifting the front
or re
ar of the v
ehicle,
place the jack in the
left and right cent
er of the fr
ont or r
ear of the v
ehicle,
as shown in
the figur
e below
：

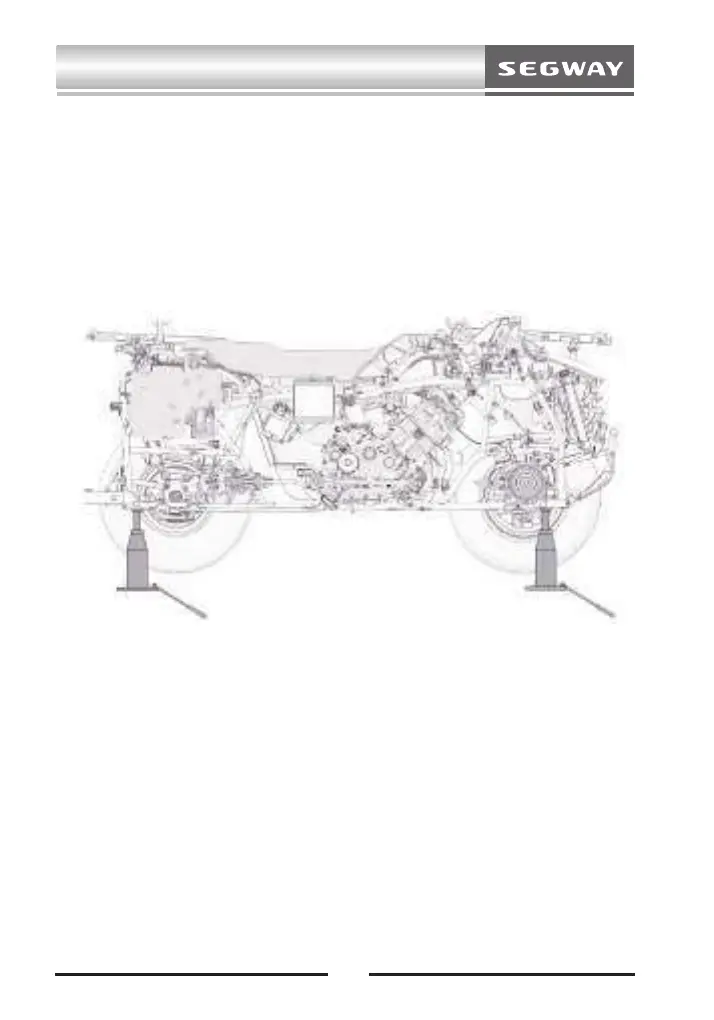

Schematic diagram o
f jack support position
99
