MAINTENANCE,STORAGE AND TRANSPORTATION
BATTERY DISASSEMBLY
NOTICE
If the electrolyte overflows, immediately wash it off with a solution of
1 tablespoon baking soda and 1 cup water to prevent damage to the
vehicle.
1
2
3
5
4
3

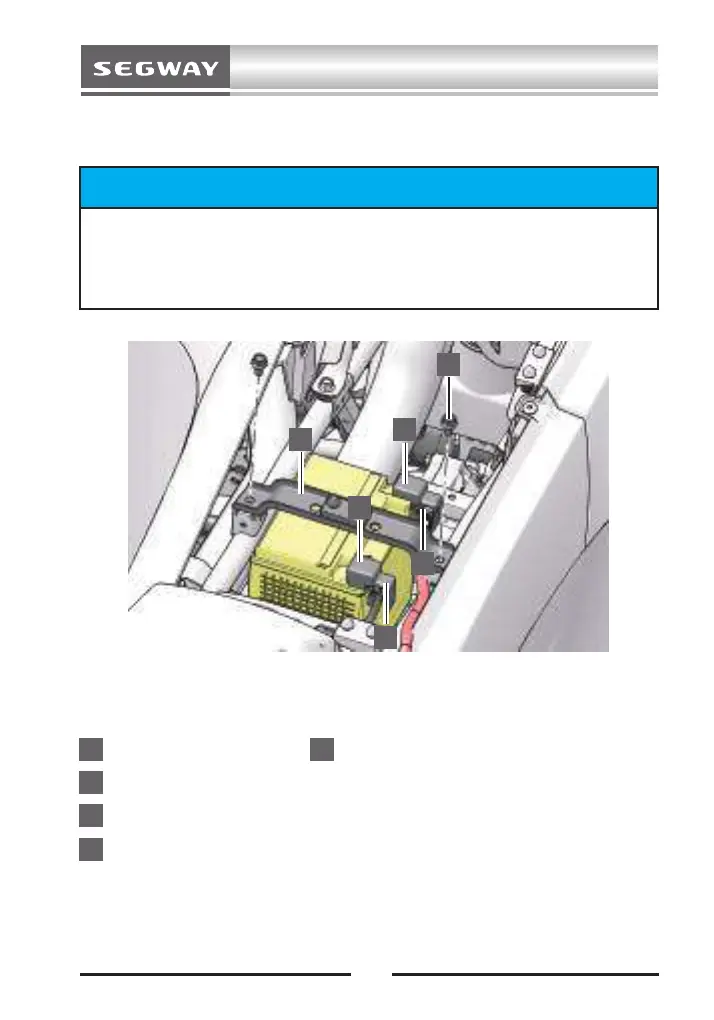

The battery is located below the cushion.
Cut off the power before removing battery
.
1
Bolt M8*12 (2 PC)
2
Battery plate
3
Protective rubber sleeve
4
Positive and negative anchor bolt cable
5
Positive and negative anchor nuts for cable
1. Use a tool to remove the battery cover bolt M8×12.
2. Remove the battery pressure plate.
