MAINTENANCE,STORAGE AND TRANSPORTATION

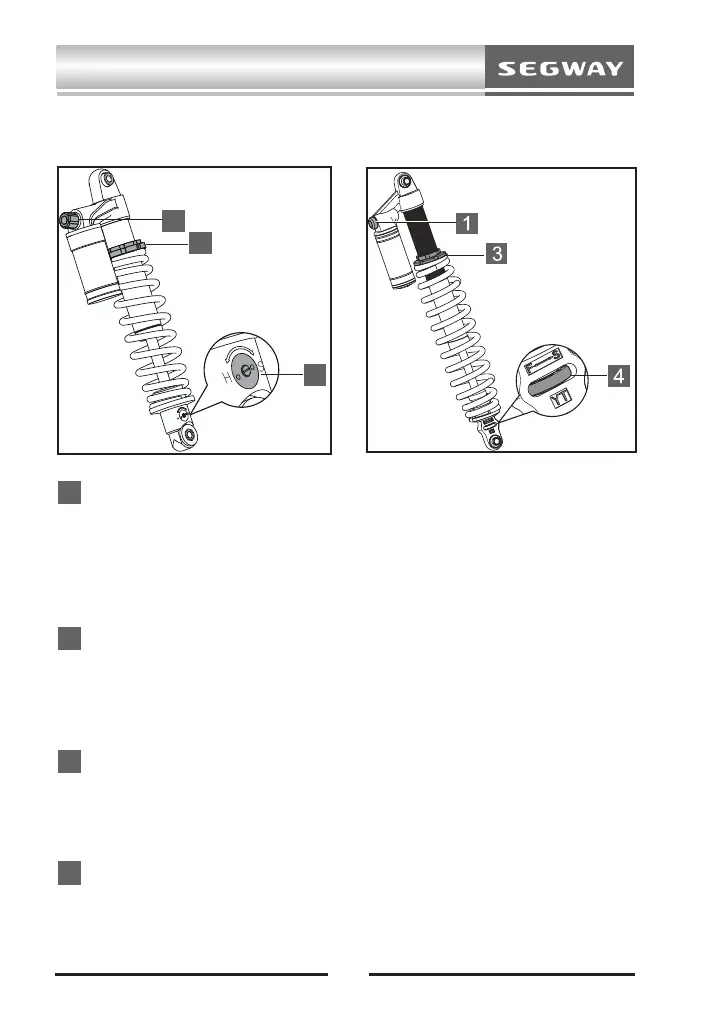

ADJUSTABLE AIR SHOCK ABSORBER
1
Compression damping adjustmen knob
• Turning the knob clockwise increases the shock's compression
damping
.
• Turning the knob counterclockwise reduces the compression
damping of the shock absorber.
2
Recovering the damping adjusting valve.
Use flat screwdriver to adjust the valve.
• Turning to the "H" direction, the return damping increases.
• Rotating in the “S” direction reduces the return damping.
3
Spring adjusting cap. Adjust spring top end cap with special tool.
• Adjust the end cover spring preload downward to increase.
• Upward adjustment of end cover spring preload decreases.
4
Recovering the damping adjusting valve.
• Rotational recovery damping increases in the direction of “S”.
• Turning in the “F” direction reduces the return damping.
1
3
2
H
S
H
S
OR
