Views onto the device/Scope of delivery

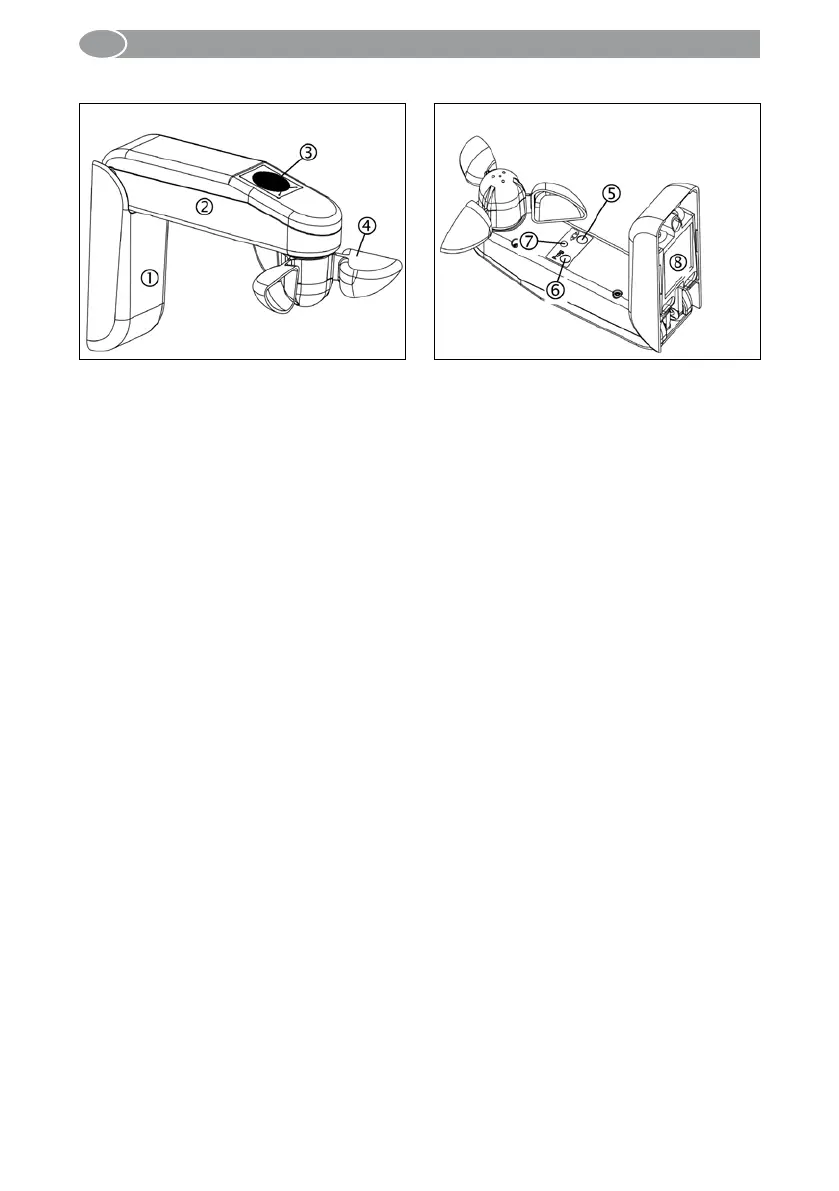

3. Views onto the device
Front view (above) View from behind (below)
1 Rear device part with cover for power
supply
2 Upper device part with electronics
3 Rain sensor (WSRF only)
4 Wind wheel
5 Toggle button (UP/STOP/DOWN/
STOP button)
6 Programming button (PROG)
7 LED (signals operating status)
8 Terminal box with screw holes and
type plate
4. Scope of delivery
The cardboard packaging includes the following parts:
• 1 commeo Sensor WS/WSRF
• 1 operating instruction
• 3 fixing screws DIN 7981 – Ø 4.2 x 50 mm (Torx 20) and expansion anchor S8
Required tools:
• Screwdriver Torx T10 (power supply covering), it is recommended: with torque control
• Screwdriver Torx T20 (fixing screws) and drill Ø 8 mm (for expansion anchors S8)
• Screwdriver, 3 mm (electrical terminals)
