OmniHub CMP201– User Manual
Page 100 of 103
Input 4 channels via 4 HDMI female connectors
(HDMI 1.4)
Video H.264 / AVC MP/HP@L4.2
H.265 / HEVC MP@L4.1
Resolution HD: 1080p-29.97 / 30 / 50 / 59.94 / 60
1080i-29.97 / 30 / 50 / 59.94 / 60
720p-50 /59.94 / 60
SD: 576i-50
576p-50
460i-59.84 / 60
460p-59.84 / 60
*Output supports progressive only, and
resolution support up to 1080p30
Bitrate Control CBR
Video Bitrate 600 ~ 20,000Kbps
GOP Structure IPPP
GOP Size 1~60
Aspect Ratio Automatic or Manual
Audio MPEG-1 Layer II, AAC, AC3
Audio Bitrate 32~192Kbps
Audio Mode Stereo 2.0
Audio Sampling Rate 48KHz
Audio Volume Leveling -20dB~20dB
OSD overlay Text, Image, QR Code

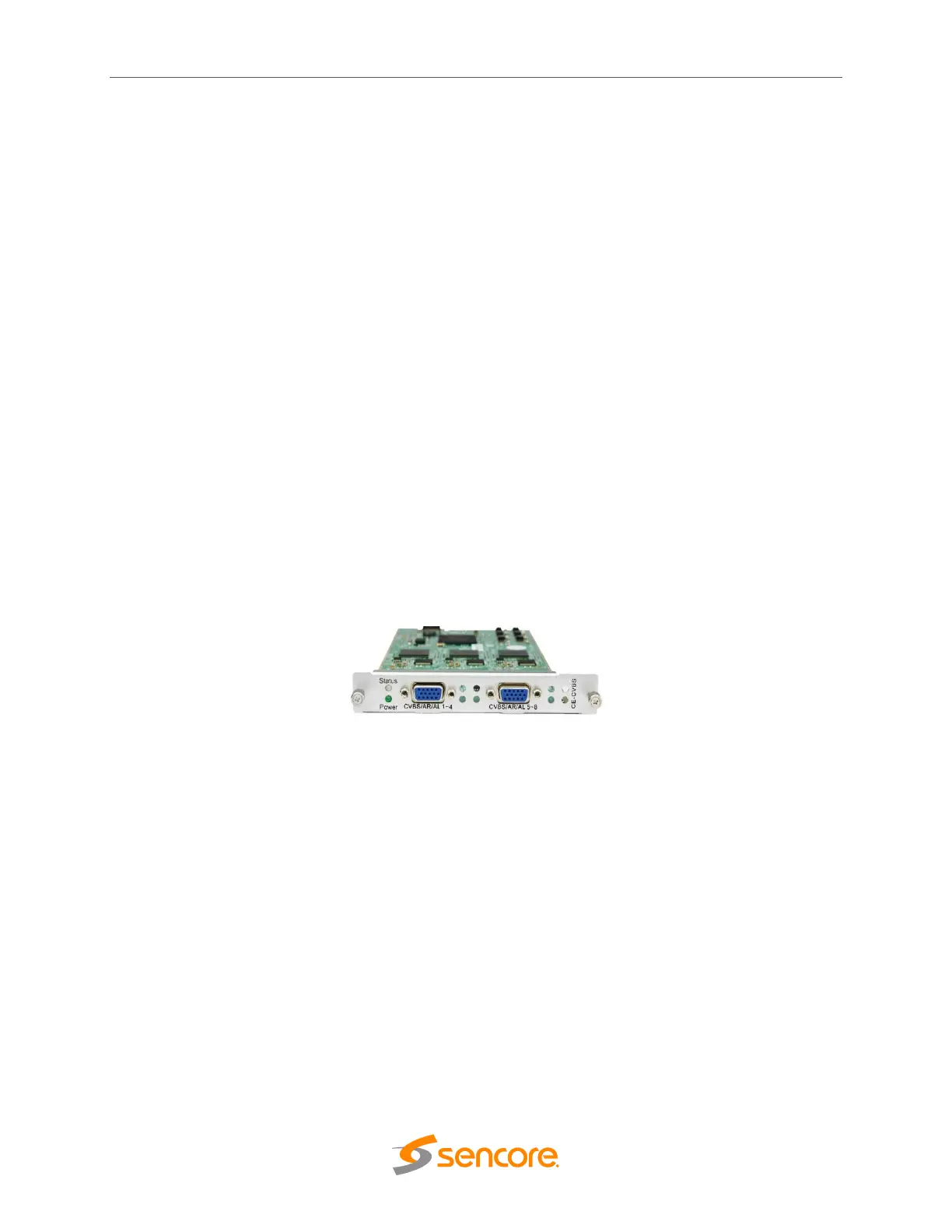

CVBS Encoder (Commercial)
Input 8 channels via 2 DB15 connectors, each
DB15 for 4 channels
2 x RCA-DB15 adaptor cables come along
with the module.
Video H.264/AVC SD: MP/HP@L3.0/3.1/3.2
Resolution SD: 576i50, 480i59.94
Bitrate Control CBR
Video Bitrate 600 ~ 6,000Kbps
GOP Structure IPPP
GOP Size 1~99
Aspect Ratio Automatic or Manual
Audio MPEG-1 Layer II
Audio Bitrate 32~384Kbps
Audio Mode Stereo (2.0, including downmix)
Audio Sampling Rate 48KHz
Audio Volume Leveling -20dB~20dB
OSD Overlay Text, Image, QR Code
