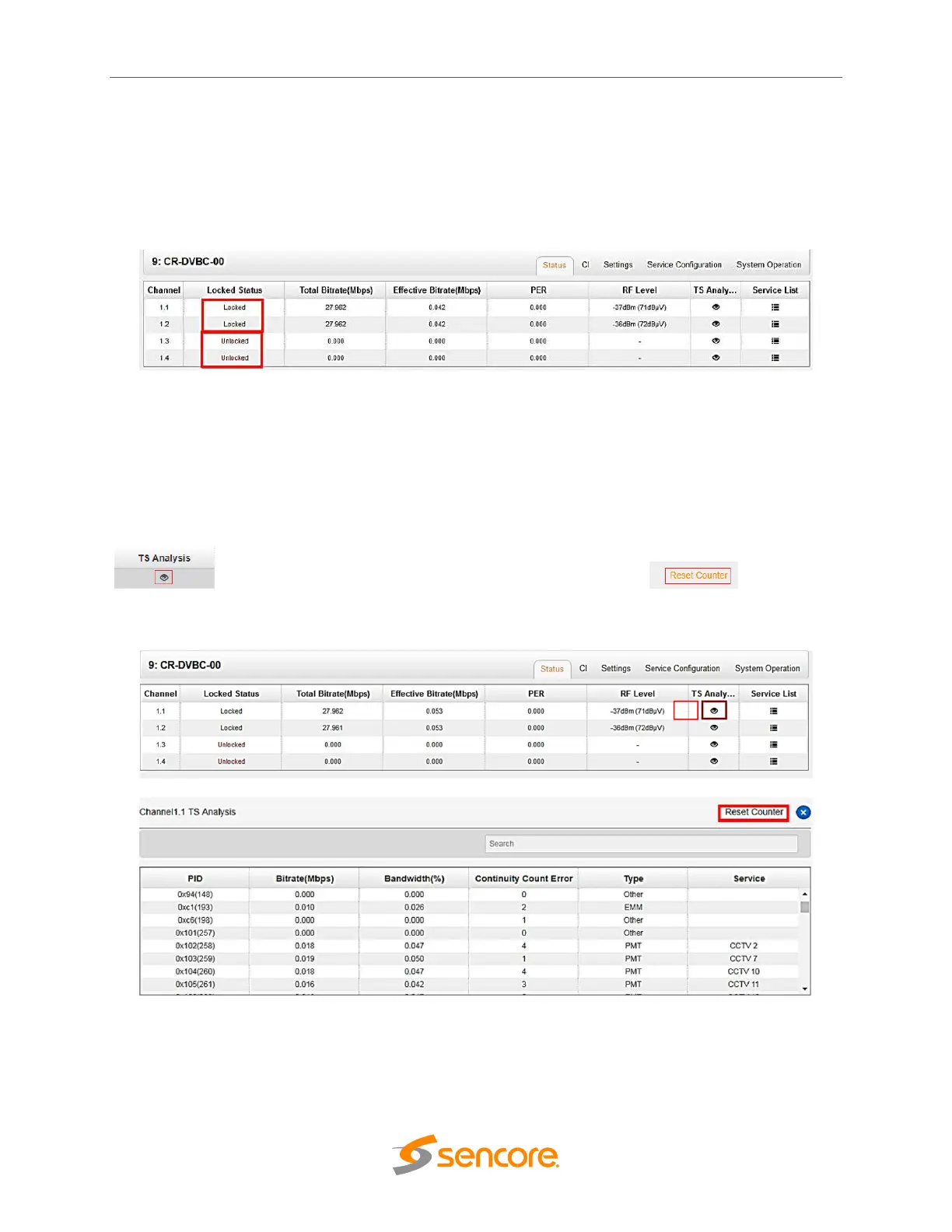

3.3.1.1 Module Status
By selecting the CR2-DVBC-00 on the module list, you will be automatically redirect to the
Status page. There will be a table with seven columns on the status page. It shows the Channel
from 1.1 to 1.4 that correspond for the 4 channel input of the module. Locked Status show the
status on each channel, the Status will show Unlocked if there are no input or wrong parameters
and show locked signal if there is signal input and correct parameters.
Total Bit rate in Mbps show the bitrate on each channel with received signal with LOCKED
status and Effective Bit Rate in Mbps which show the actual bitrate on each received Channel.
RF Level or the signal on the input will show you the level on each locked channel,
The TS Analysis is same for Baseboard IP input Status and All modules Status. This can show
you the details like PID, of the received channel, and last is Service List that show the list of
services on the received Channel.
Here, you can check the PID and other details on the channel under TS Analysis. You can click
of each channel, you can see TS Bit rate Analysis. Click to reset the
Continuity Count Error counter. In Search bar, you can input key words or numbers for a quickly
finding such as PIDs, Type or Service.
You can also check the service details in each channel under Service info. Click the icon under
Service List to check service information of all the inputs. You can also check program details
by clicking the Service Name.
