OmniHub CMP201– User Manual
Page 31 of 103

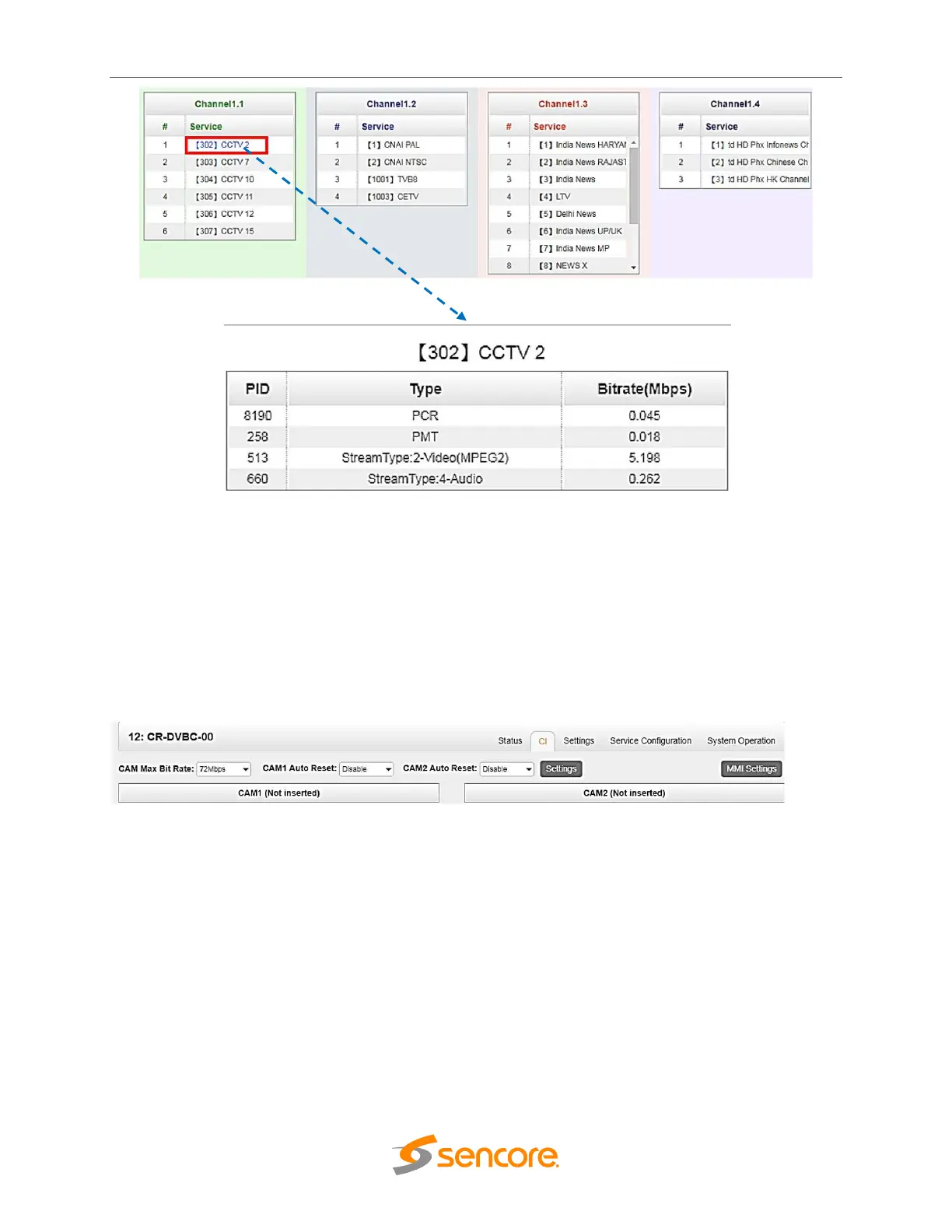

3.3.1.2 Module CI
For the encrypted services on DVBC receiver, CI slot is needed to decrypt the services and to
be able to re-broadcast the services. The CR2-DVBC-00 have 2 CAM slot and can decrypt
services depending on the capability of the Smart Card. You can select the CAM Max Bit Rate
from 48 Mbps to 108 Mbps which you can choose in pull-down list.
3.3.1.3 Module Settings
Setting is the page where we input the Parameter of the received signal. For DVBC input, it only
needs to have the Frequency and Symbol Rate of the source. The range of the Frequency and
Symbol Rate to be input on this page is show on the table below. Once the parameters are
encoded, click on apply and check the signal status of the channel in Status page and see if the
corresponding channel status is LOCKED or UNLOCKED.
