OmniHub CMP201– User Manual
Page 32 of 103
Frequency (KHz) 48000~862000
Symbol Rate (KBaud) 3000~7000

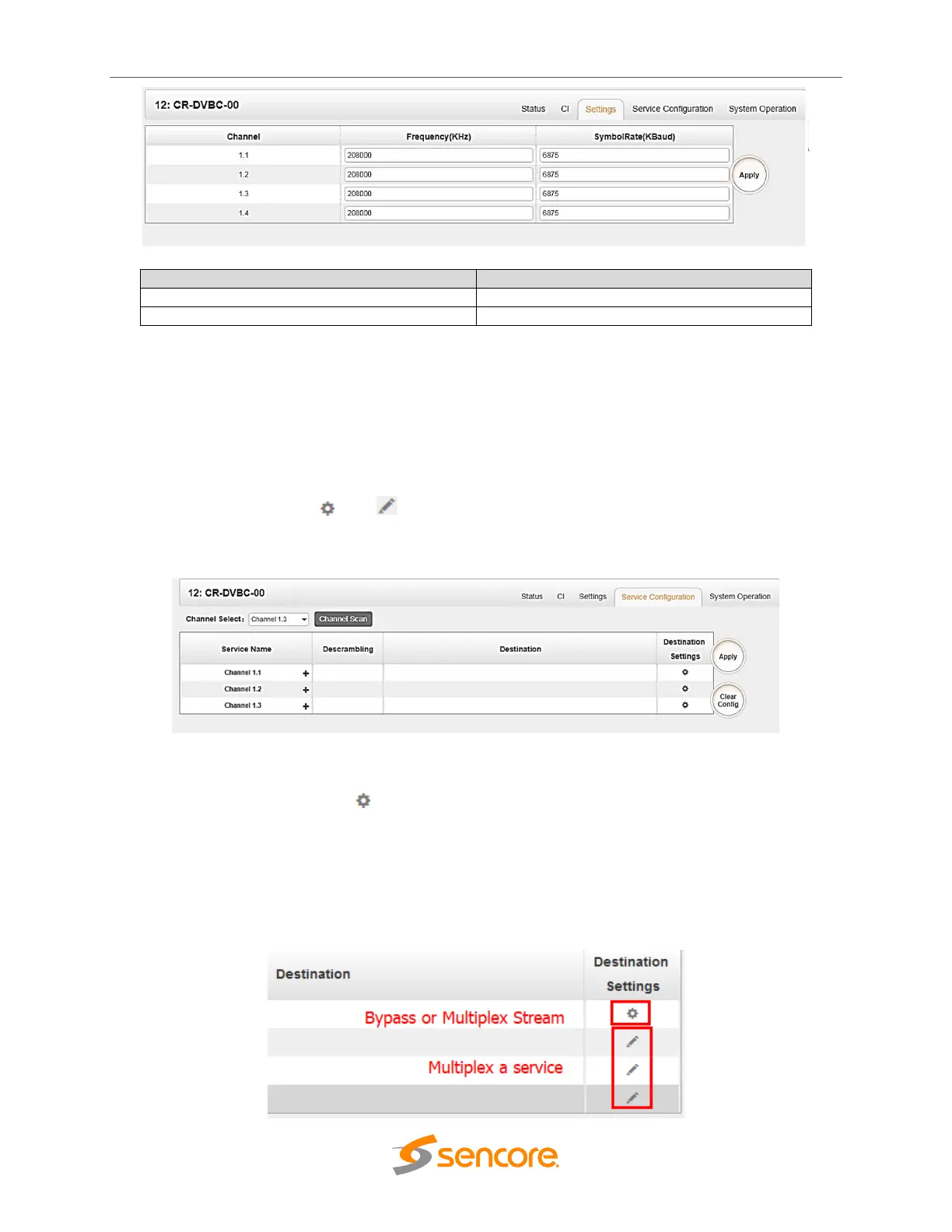

3.3.1.4 Module Service Configurations
Service Configuration page is where you manage the received service and output them to their
designated interface. The configuration for all module in CMP201 is mostly same. First, you
need to scan the port on each TS with LOCKED status. Each port might be scanned
automatically or need to scan one by one. After scanning each channel, you can output each
service by clicking the icon and below “destination Settings”. You can route a whole
stream or a service/s from the input channel toward the available output channel (IP or RF).
Two type of routing are possible;
1. Bypass mode routes whole input transport stream towards IP or RF output. Bypass
mode activation cause output channel will be occupied only by this stream. Any attempt
of routing other stream/service towards this channel will show error. This can only be
done when you click the icon on the TS. Bypass cannot be on the single service only.
2. Multiplex mode is the counter part of bypass mode. This mode allows the administrator
to perform the following operations:
a. Routing single service towards output channel will results in SPTS creation
b. Routing services towards single output channel will results in MPTS creation
c. Routing service/s AND stream/s towards single output channel will results in MPTS
creation
