OmniHub CMP201– User Manual
Page 79 of 103
3.3.20.1 Module Settings

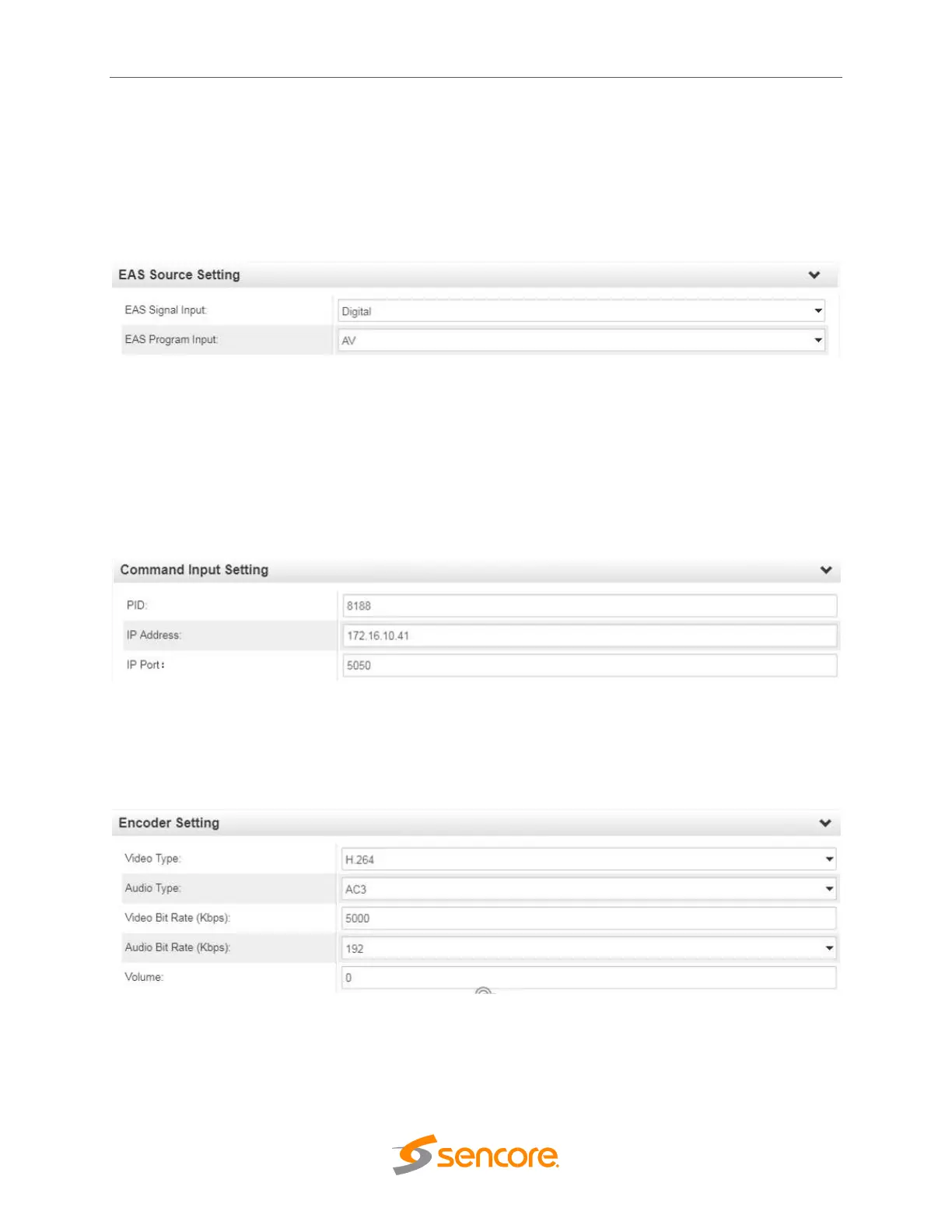

Below is an example of the EAS module configuration settings with some additional des
criptions. Click the Apply button in the right side of the EAS settings page to make the change
take effect.
EAS Signal Input selects how the module will receive a trigger:
• Digital – Trigger is provided via IP (SCTE-18 Broadcast Standard)
• Analog – Trigger is provided as DC voltage to the EAS Control connector
EAS Program Input selects where the content originates from.
• AV – Content is provided as RCA/Analog AV inputs to EAS built in encoder
• ASI – Content is provided as ASI with MPEG Transport Stream
•
Command Input Settings specify the incoming PID, IP, and Port of the SCTE-18 triggers
over Ethernet cable. The IP EAS IN RJ45 Ethernet port on the module is where this
information must be received.
