OmniHub CMP201– User Manual
Page 93 of 103
Input C/Ku Band, 8 channels via 8 RF female
connectors
LNB Power Independent power supplies for LNB-1 & 3,
LNB-5 & LNB-7
LNB Current 13V / 18V
LNB Current Max. 400mA
Constellation QPSK, 8PSK
Frequency Range 950 - 2150MHz
Signal Level -70~-20dBm
Roll-off Factor 0.15, 0.20, 0.25, 0.35
Symbol Rate DVB-S: 1~45Msps
DVB-S2: 1~45Msps
FEC DVB-S: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

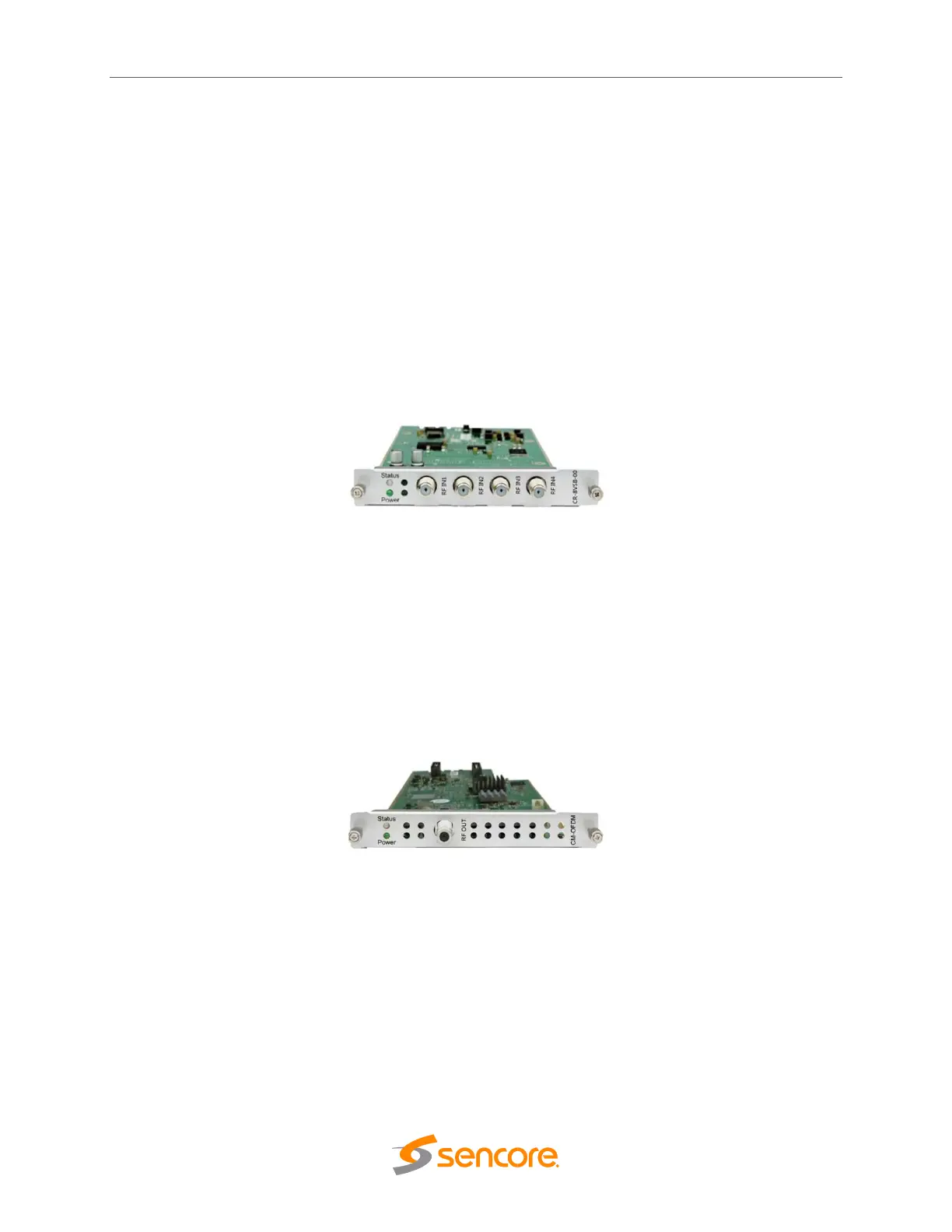

8VSB Receiver
Input 4 channels via 4 RF Female connectors
Frequency Range 50 - 860MHz
Bandwidth 6MHz
Modulation 8VSB
Signal Level -80~-20dBm
Modulator Module Specification
OFDM Modulation
Output 4/8 frequencies via 1 RF female connector
75Ω
Standard ETSI EN 300744
Frequency Range 47 ~ 862MHz
Bandwidth 8MHz
Constellation QPSK / 16QAM / 64QAM
Guard Intervals 1/4, 1/8, 1/16, 1/32
FFT Size 2K, 8K
Code Rates 1/2, 2/3, 3/4, 5/6, 7/8
Output Level Max. 105dBuV
MER ≥32dB
