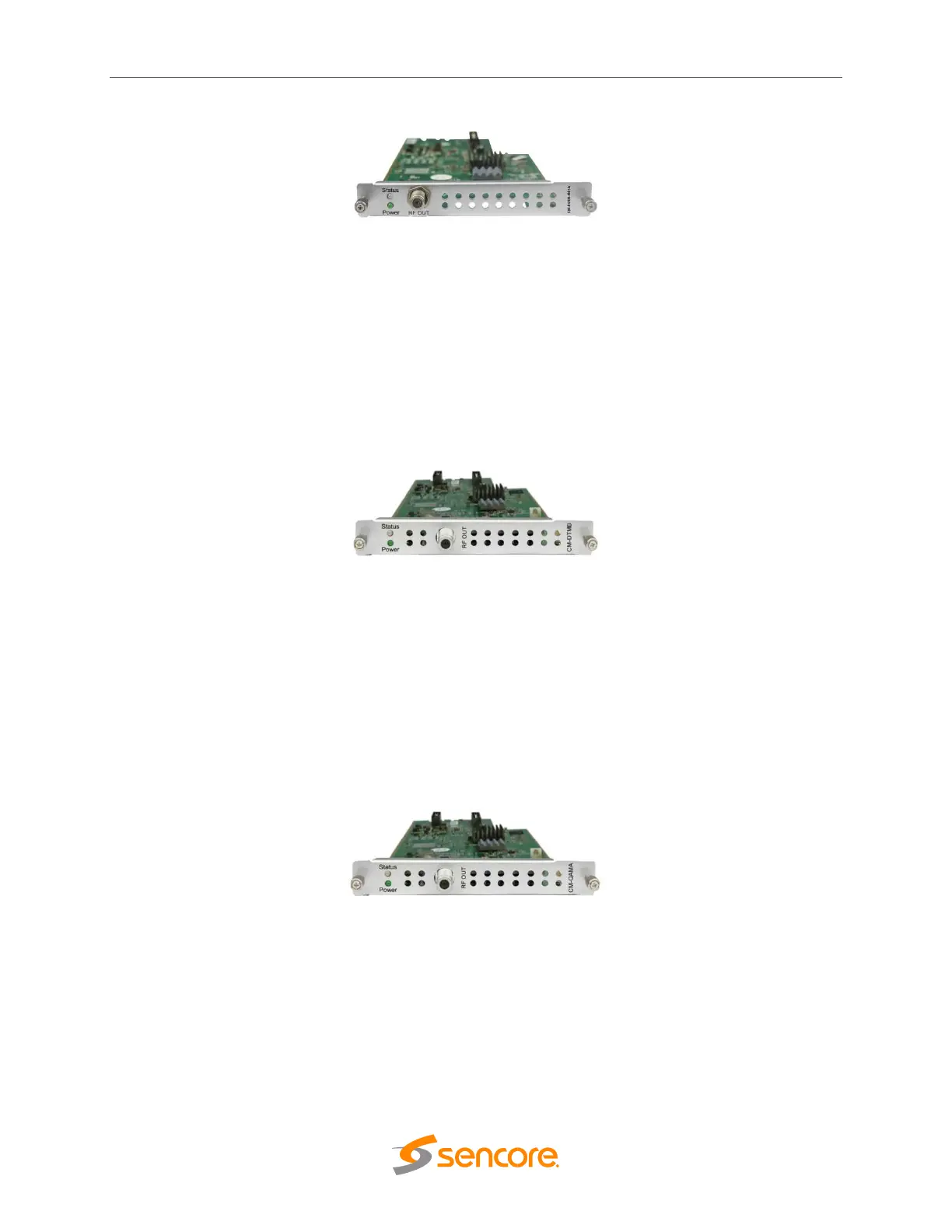

8VSB Modulation
Output 4/8 frequencies via 1 RF female connector
75Ω
Standard ATSC A/35
Frequency Range 50 ~ 860MHz
Bandwidth 6MHz
Constellation 8VSB
Output Level Max. 105dBµV
MER ≥40dB
DTMB Modulation
Output 4/8 frequencies via 1 RF female connector
75Ω
Standard DTMB GB20600-2006
Frequency Range 47 ~ 862MHz
Constellation 4QAM-NR / 4QAM / 16QAM / 32QAM /
64QAM
Output Level Max. 105dBµV
MER >32dB
QAMA Modulation
Output 4/8 frequencies via 1 RF female connector
75Ω
Standard ITU-T J.83 Annex A/C
Frequency Range 47 ~ 862MHz
Bandwidth 6/7/8MHz
Constellation 16QAM / 32QAM / 64QAM / 128QAM /
256QAM
Symbol Rate 3.6~6.9Ms/s
