OmniHub CMP203– User Manual
Page 10 of 109
1.1 Product Overview
OmniHub CMP203 is a new generation of Compact Media Platform in Modular design
which focuses on cost-effective commercial TV market and traditional DTV market. This
is a 1RU chassis with single power supply unit and six hot modules at the back and one
modulator output in front of the unit. Thanks to the benefit of high-density, strong-
performance and large-flexibility, OmniHub CMP203 product can meet all the major
video delivery requirements or signal receiving, descrambling, encoding, multiplexing,
modulation and IP processing depending on variety of model.
With powerful embedded Gigabit switch, optional commercial/broadcast encoder and
multi-mode receiver and modulator modules, it can be configured flexibly to meet any
video delivery requirements .Due to its compact design and powerful function, it can be
widely used at hotel, hospital, community, club, campus and DTV headend room where
massive programs are required to be processed in a cost-effective way. CMP203 also
provides a straight-forward web interface accessible via all major browsers and
complete control of the unit. Every CMP203 ships with the software suite pre-loaded on
appropriate hardware. The physical connectors available on the back of the chassis will
be depending on the optional input/output configuration.

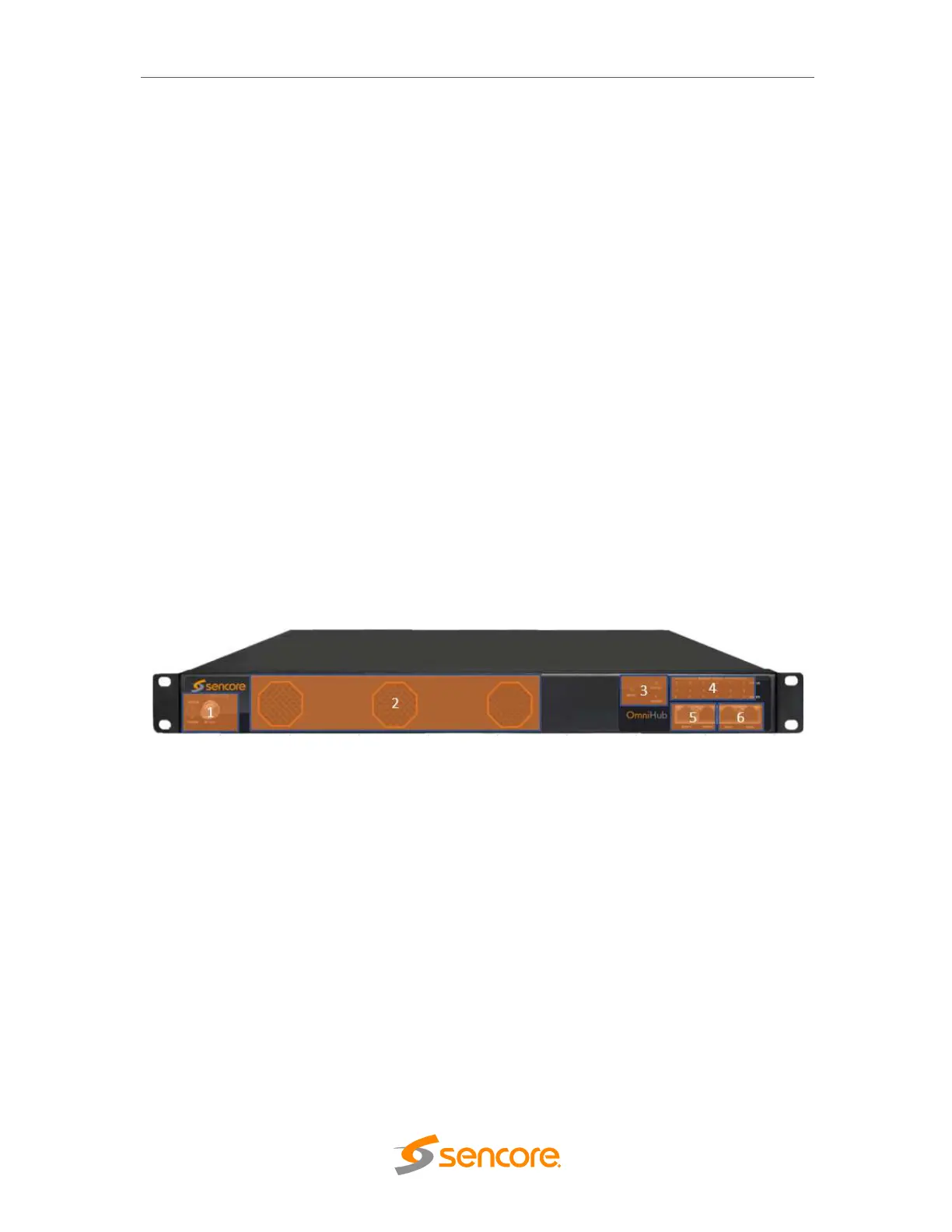

1.2 Front Panel Overview
1. Modulation Status and Modulation Power Indicators, Modulation Output Tuner
(Only be embedded in Encoder Modulator, Receiver Modulator)
2. Cooling Air Intake
3. Reset button and Power LED indicator
4. Status LED indicator
5. 2 RJ45 Management ports
6. 2 RJ45 Data ports
1.3 Rear Panel Overview
The OmniHub CMP203 have exhaust fans at the top of the unit. Please mind not to
obstruct the air intake at the front and air exhaust at the top.
