OmniHub CMP203– User Manual
Page 37 of 109

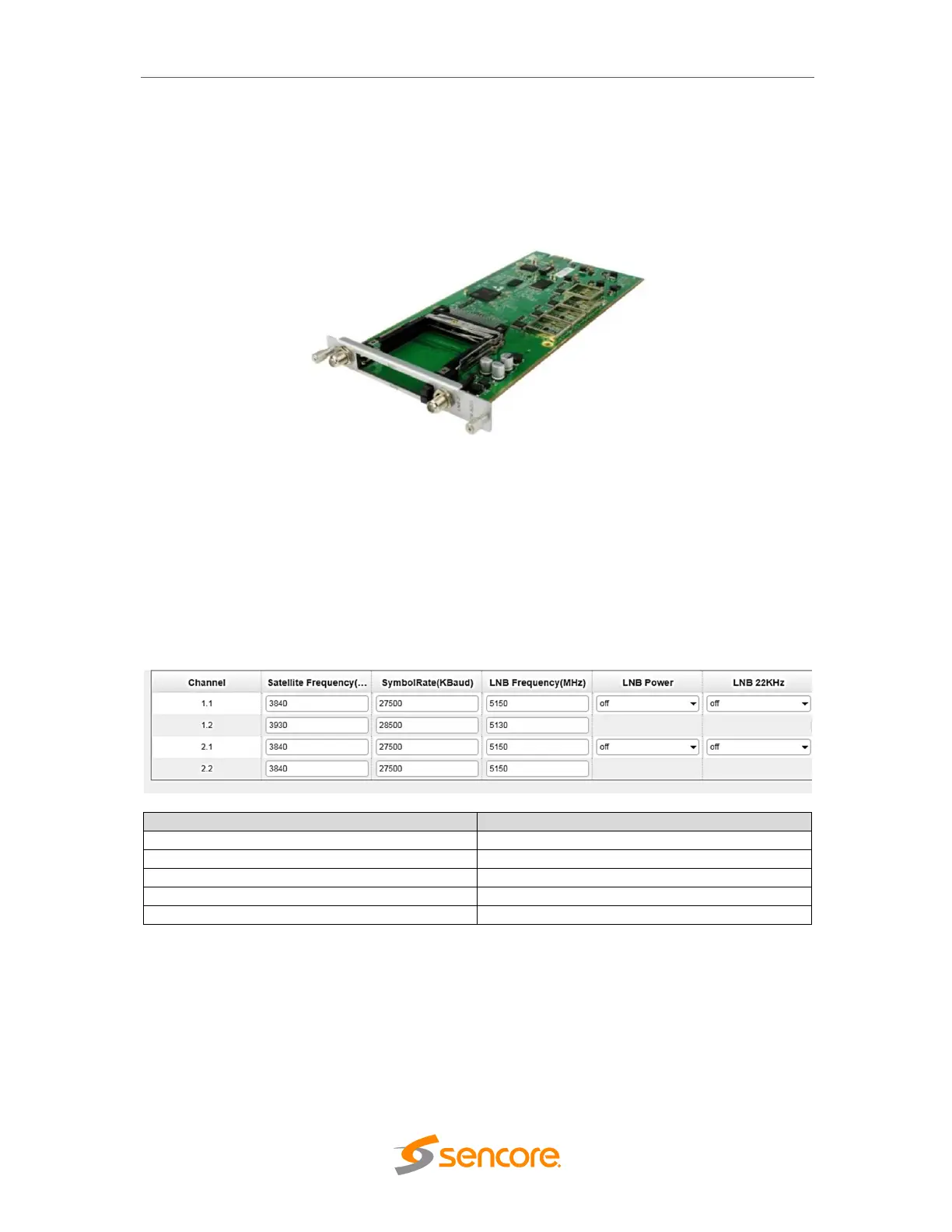

3.3.3 CR2-DVBS2CI-00
CR2-DVB S2 CI-00 is a 4-channel DVB-S/S2 receiving and descrambling module with 2
RF connectors and 2 CI slots, each RF connector can connect with 2 transponders. Status
and CI pages refer to CR2-DVBC-00 module section at page 32 to 34.
3.3.3.1 Module Settings
Parameter Setting of DVBS2CI show where you input the information of the source signal.
The table below show the parameter range on each field. For the LNB power, channel 1.1
and 1.2 both via LNB-1 share power with each other, channel 2.1 and 2.2 both via LNB-
2 share power with each other.
Satellite Frequency (KHz) 950000~2150000
Symbol Rate (KBaud) 1000~45000
LNB Frequency (KHz) 950000~21500000
LNB Power Off/13V/18V
LNB 22KHz Off/22KHz
