OmniHub CMP203– User Manual
Page 36 of 109

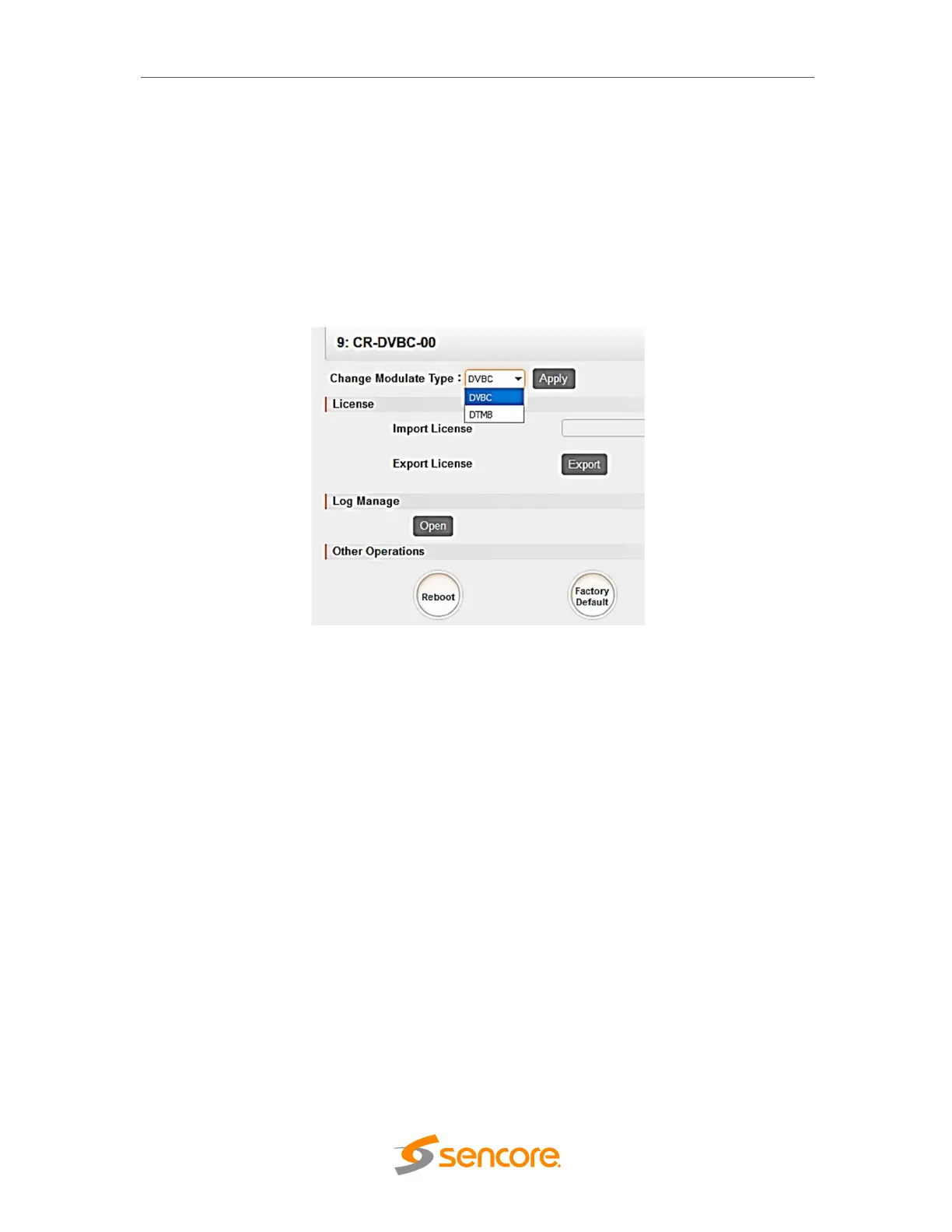

3.3.1.5 Module System Operation
In System Operation page you can change into DVBC Mode or DTMB Mode, reboot the
module, Factory Reset, and Log Export. System Tab also allows to perform the following
tasks:
• Import / Export License
• Log Manage
• Reboot
• Factory Default the unit
3.3.2 CR2-DVBC-01
CR2-DVBC-01 is a 4-channel DVBC Annex B/ISDBT receiving and descrambling
module with 1 RF female connector and 2 CI slots. It can receive 4 RF channels signal
simultaneously and support 2 CAM cards descrambling. Configuration of the module is
very much similar with CR2-DVBC-00, please refer to this module for the configuration
procedures at page 31 to 35.
