OmniHub CMP203– User Manual
Page 11 of 109

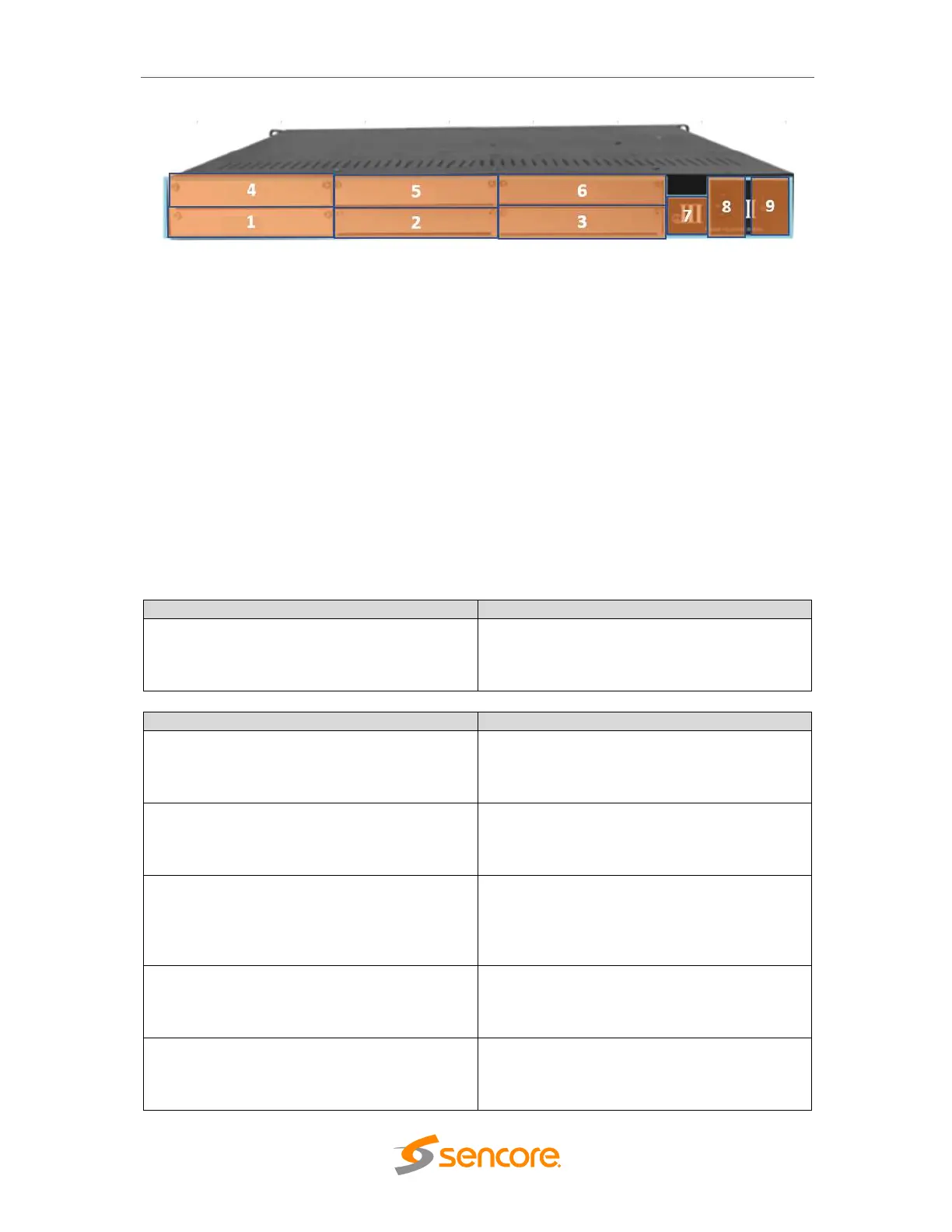

1. Slot 1 for Option Module
2. Slot 2 for Option Module
3. Slot 3 for Option Module
4. Slot 4 for Option Module
5. Slot 5 for Option Module
6. Slot 6 for Option Module
7. Chassis ground
8. Power Supply
9. On/Off switch
1.4 Option Module Overview
This describe the CMP203 platform and all available modules that can expand the
functionality of the CMP203 platform.
Baseboard CMP203-SEN 1RU chassis, Single PSU, 4xGbE ports, 14
LEDs and six hot swappable slots with 1
Modulator output in front panel
CR2-DVBC-00 4 channel DVB-C Annex A/C/DTMB
receiving module, 1 RF input connector with
4 tuners and 2 CI slots
CR2-DVBC-01 4 channel DVB-C Annex B/ISDBT receiving
module, 1 RF input connected with 4 tuners
and 2 CI slots
CR2-DVBS2CI-00 4 channel DVB-S2 receiving module, 2 input
connectors each with 2 transponders
receiving, with 2 CI slots and independent
power supplies for each LNB.
CR2-DVBS2FTA-00 4 channel DVB-S2 receiving module, 4 input
connectors. Independent power supplies for
LNB 1 and 3 only.
CR2-DVBS2FTA-00A 8 channel DVB-S2 receiving module,
another interface card added on CR2-
DVBS2FTA-00, each module occupies 2
slots.
