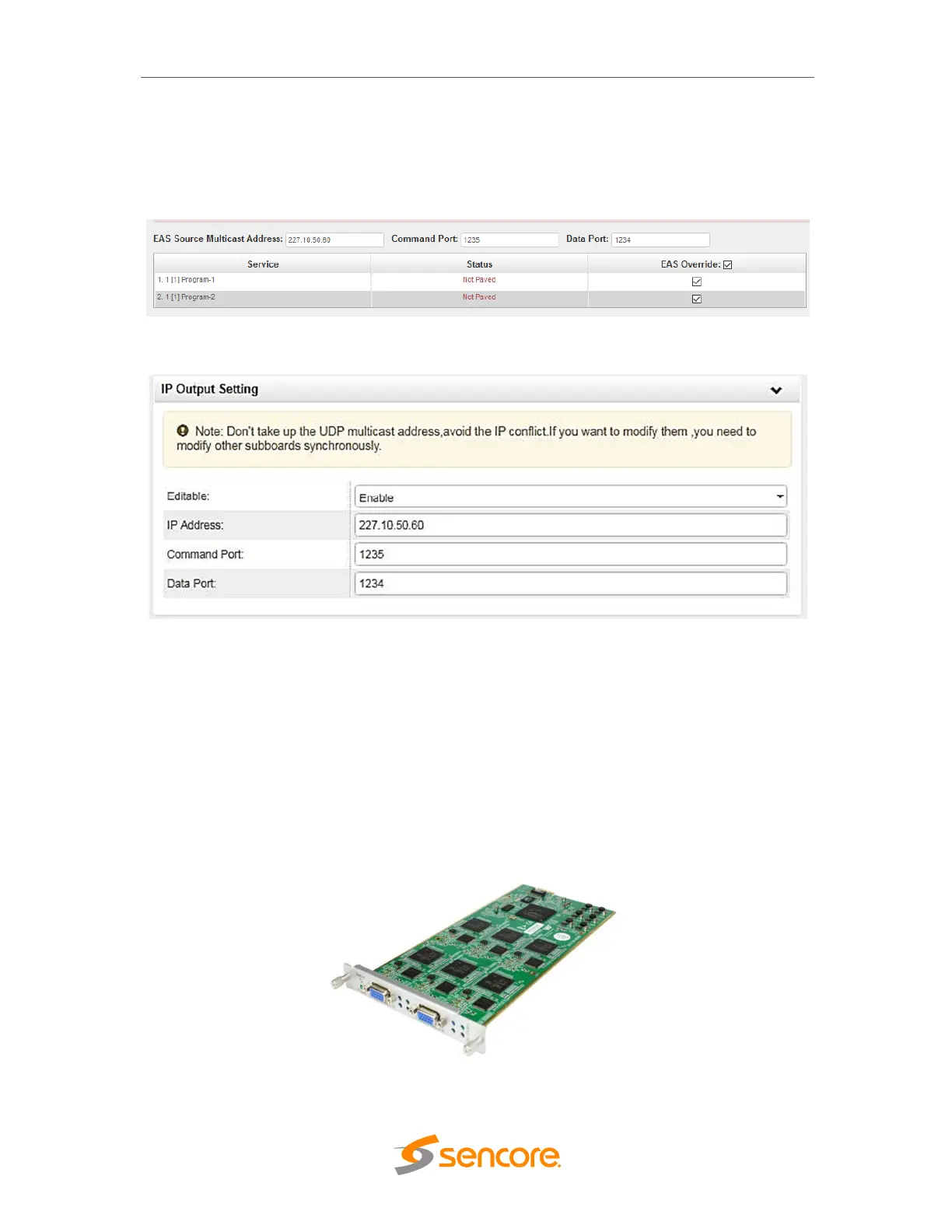

EAS will ask you the Source Multicast Address, Command port and Data port. This
information can be seen in the EAS page
SDI Encoder EAS setting
EAS Module settings
3.3.11.5 Service Configuration and System Operation
Please see CR2-DVBC-00 module at page 33 to 35 for the reference.
3.3.12 CE2-CVBS-00/R01/R01A
CE2-CVBS-00/R01/R01A is the 6/8/16-channel CVBS encoder with 2/2/4 DB15
connectors each for 3/4/4 channels. It supports H.264/MPEG-2 SD encoding and
MPEG1-L2 audio.
CE2-CVBS-00/R01(6/8 CH)
