OmniHub CMP203– User Manual
Page 31 of 109

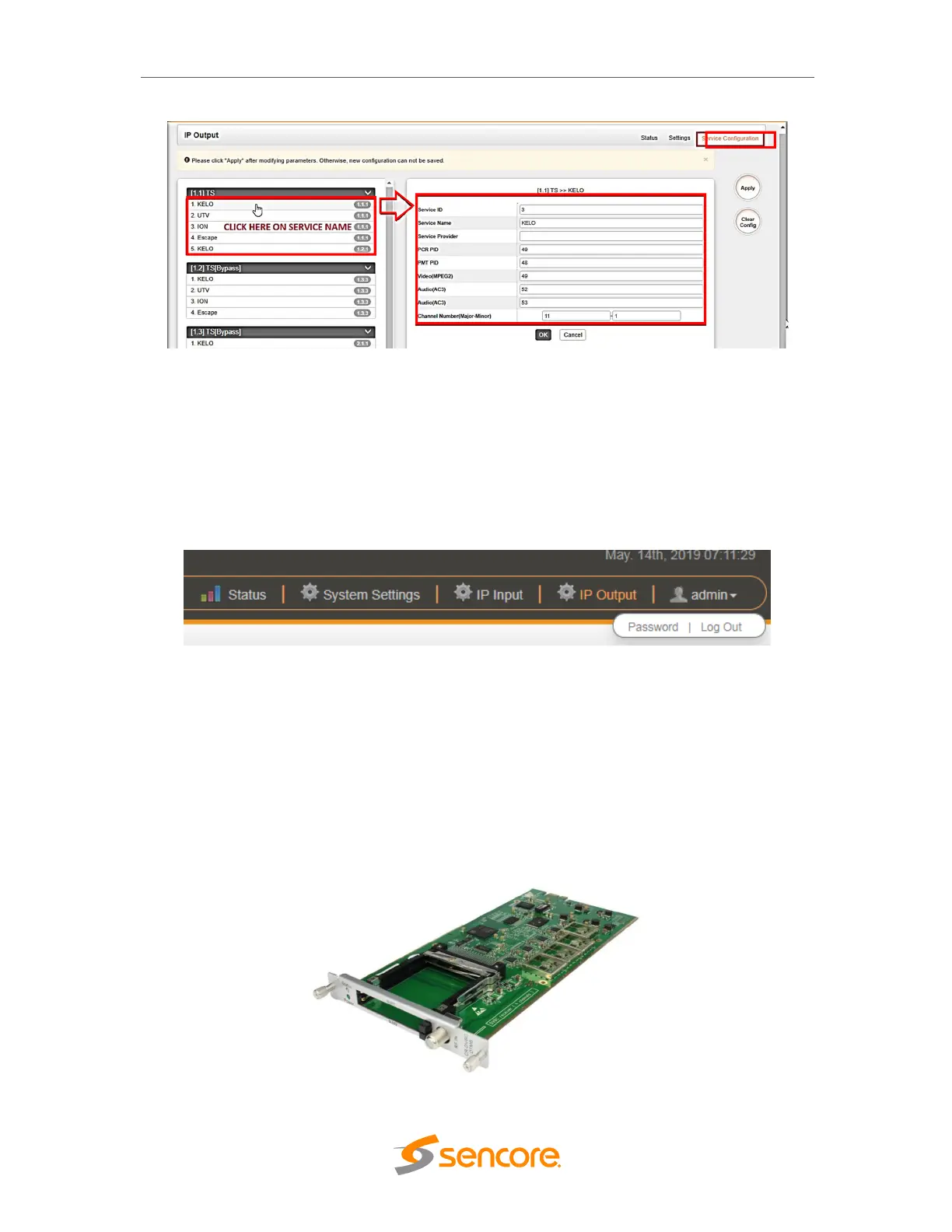

*As you notice, the Status on IP input and IP output are similar in comes on TS analysis
and Service List. These 2 tab are all available in All modules status page. Same goes
to Service Configuration when we output service to other output modules like QAMA,
QAMB, OFDM, IP, etc.,
3.2.5 Admin
Click Admin you can choose to go into Password setting page or Log Out.
3.3 Module Configuration
Receiver Modules
3.3.1 CR2-DVBC-00
CR2-DVBC-00 is a 4-channel DVBC receiving and descrambling module with 1 RF
female connector and 2 CI slots. It can receive 4 RF channels signal simultaneously and
support 2 CAM cards for descrambling.
