OmniHub CMP203– User Manual
Page 53 of 109

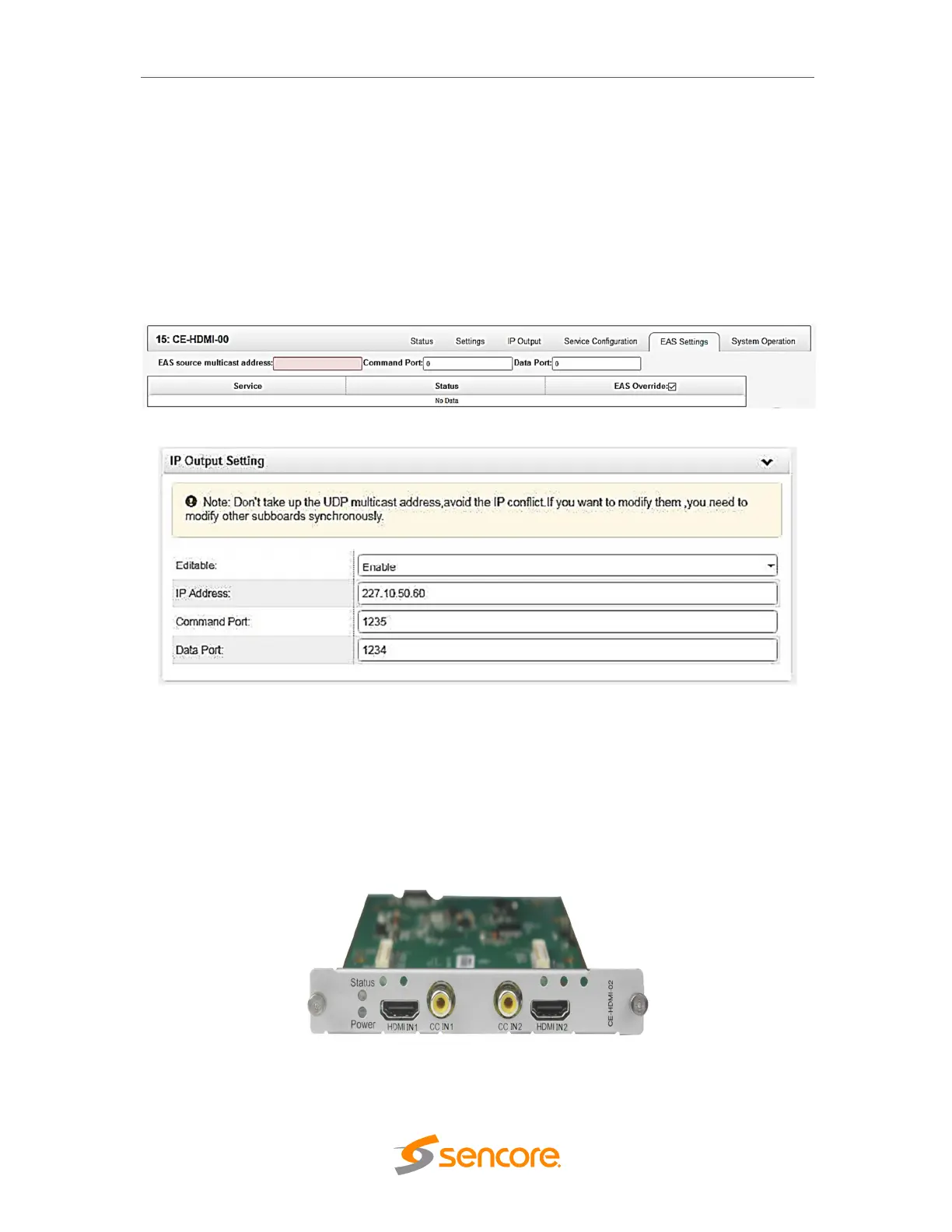

3.3.7.6 EAS Settings
Settings for the EAS feature need to be made on the encoder module so that when the
EAS source is triggered, the Audio and Video from the encoder will be replace by the
Audio and Video from AES module.
EAS will ask you the Source Multicast Address, Command port and Data port. This
information can be seen in the EAS page
HDMI encoder EAS setting
EAS module settings
3.3.8 CE2-HDMI-02
CE2-HDMI-02 is a 2-channel HDMI encoder which supports H.264 HD/SD or MPEG-2
HD/SD encoding with 2-channel RCA for CC input. The module supports MPEG1-L2,
AAC and AC3 audio encoding.
