Modulation Modules
3.3.13 CM2-QAMA-00/R00

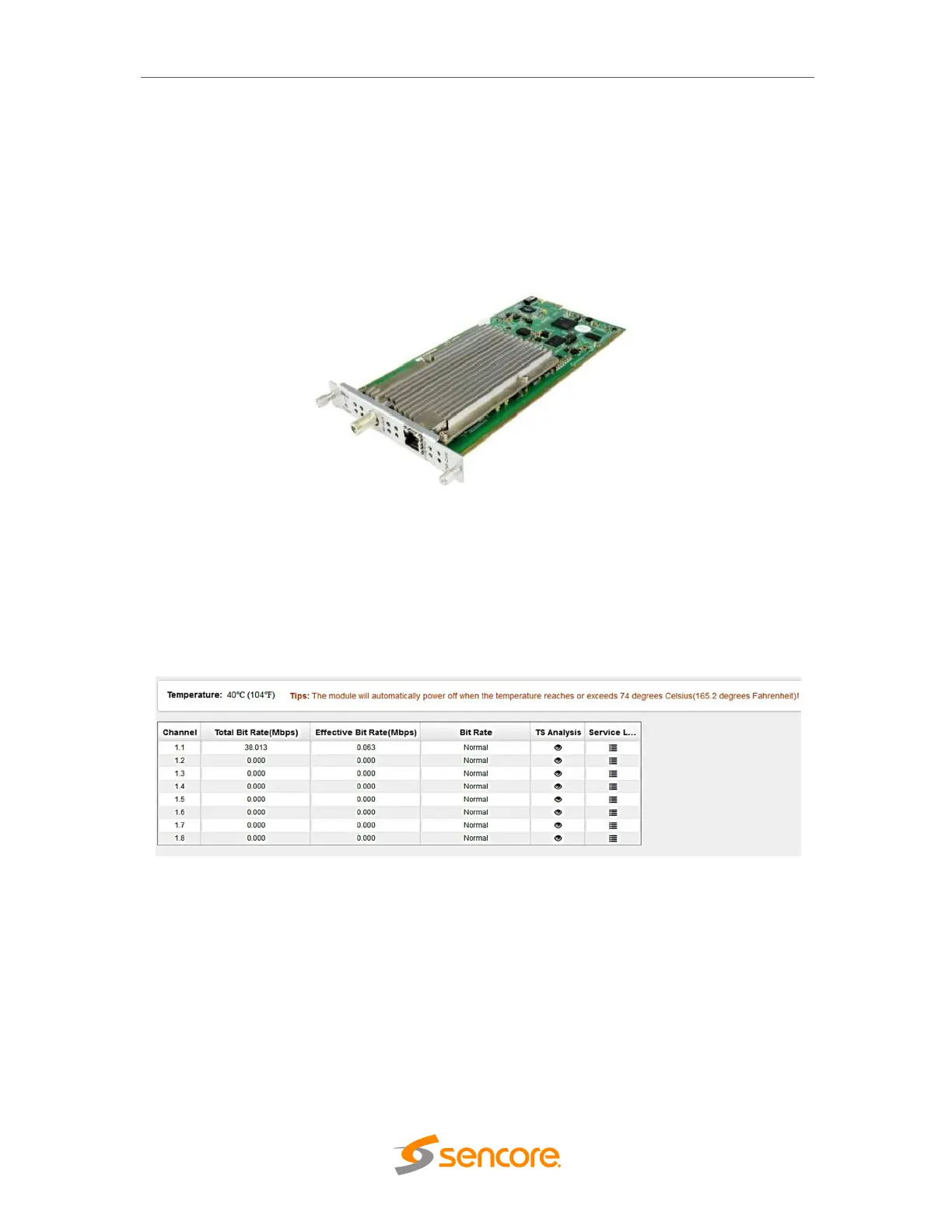

CM2-QAM-00 / R00 / R01 / R01A module supports modulating 16 non-adjacent
channels with 1 RF port and 1 RJ45 network port that is reserved for future use. QAM A
and B share the same Hardware but Different Software. If you need to change the
Module from A to B. Please contact your local support for assistance.
3.3.13.1 Module Status
For the Status of QAMA-00. This show the Total Bitrate of a TS and the Effective bitrate,
with this, you can monitor if the output programs will overflow on a certain TS. Since the
Modulator produce a lot of heat, the Module is also designed to automatically power off
when the temperature is higher than 74 degree Celsius (165.2-degree Fahrenheit).
3.3.13.2 Module Settings
This page is where we can modify or SET the frequency, we will use for the RF
modulation. CM2-QAMA-R00 have 16 non-adjacent channels while CM2-QAMA-R01
have 4 adjacent channel both at single port.
