OmniHub CMP203– User Manual

Page 80 of 109

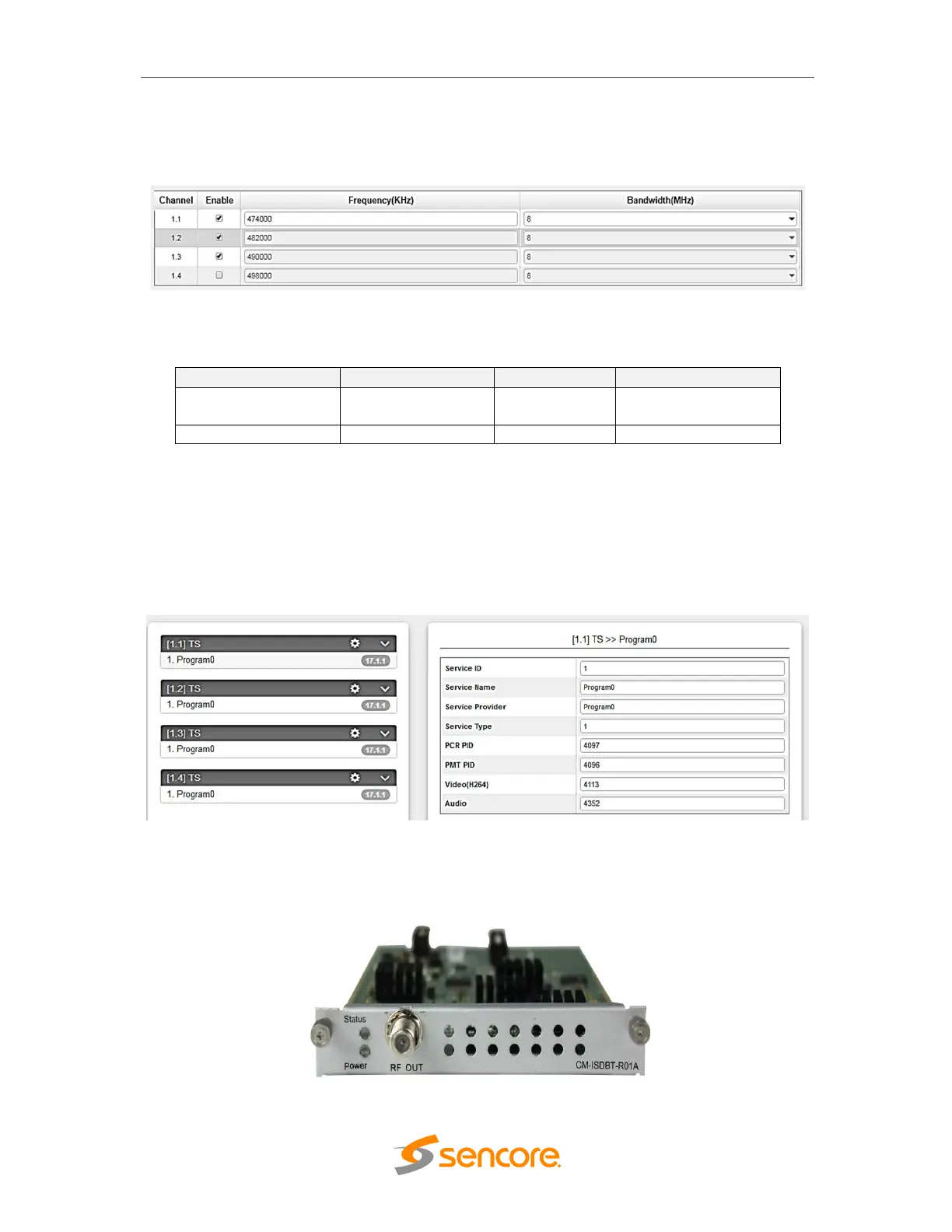

3.3.18.1 Module Settings

For the Settings of CM2-OFDM-R01

Module Settings is where we input the source parameters. Once done, click on apply for

the changes to take effect and check on the status in the channel signal is Locked.

Name

Range

Name

Range

Bandwidth

6M, 7M, 8M

RF level

0~31.5 (dBmV)

60~91.5 (dBuV)

Frequency (KHz)

48000~862000

3.3.18.2 Service Configuration

For the Configuration of the OFDM module. This is like the configuration of CM2-QAMA-

00/R00. You can also change the Original Network ID, TSID, Service Name, PID and

create LCN Descriptor and Cable Descriptor. For more details, please check CM2-

QAMA-00 at page 69 to 72 for reference.

3.3.19 CM2-ISDBT-R01/R01A

CM2-ISDBT-R01/R01A module supports up to 4/8 adjacent frequencies modulating with

1 RF female connector for output.
