OmniHub CMP203– User Manual
Page 16 of 109
2.1 Rack Installation
The OmniHub CMP203 is designed to be mounted in a standard 19” rack. It takes 1RU
of rack space. To install it into a rack, please use the following steps:

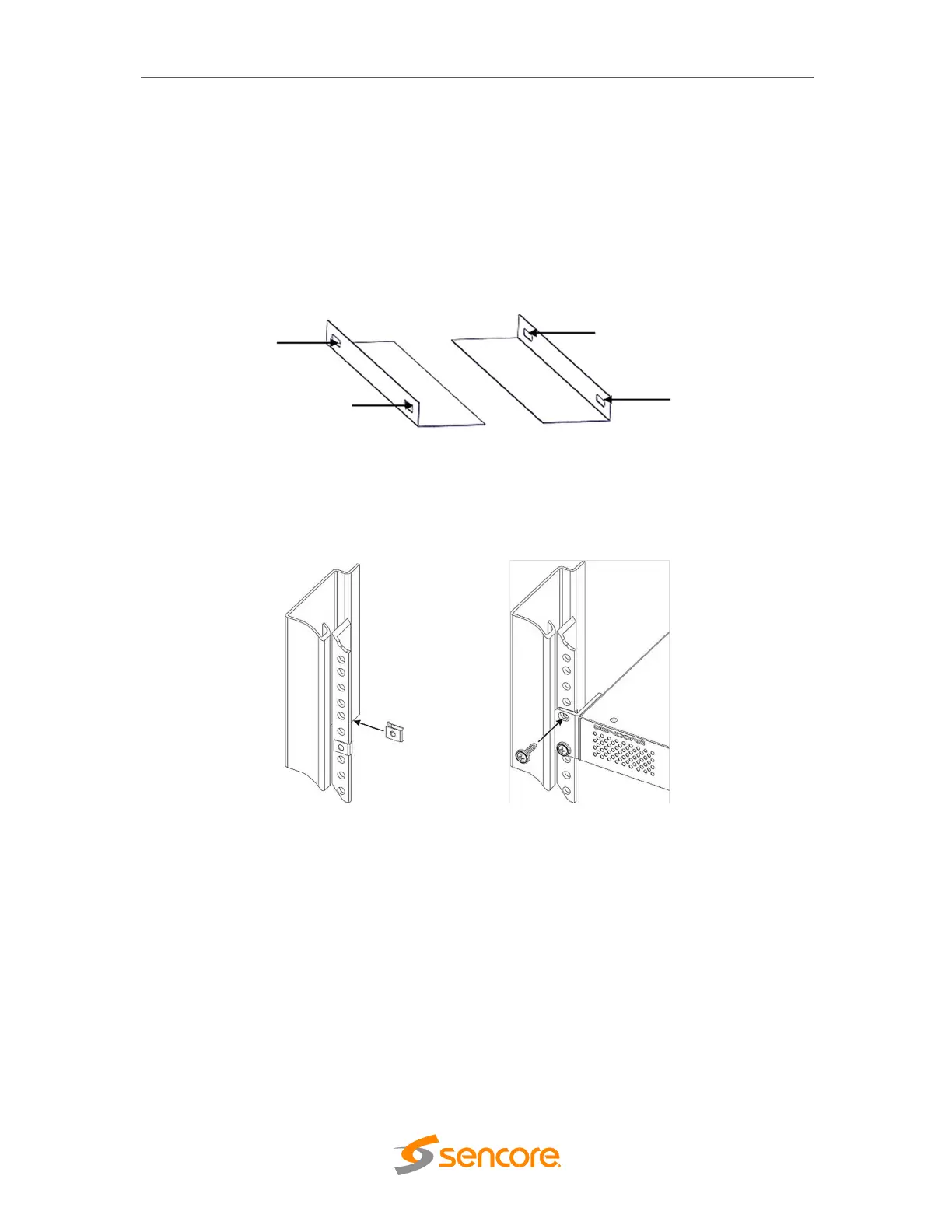

• Determine the desired position in the rack for the CMP203. Make sure that the air
intake on the front of the unit and the exhausts on the back of the unit will not be
blocked.
• Install the brackets at desired position if there’s no supporting plate in the rack.
• Insert the rack mount clips into place over the mounting holes in the rack.
• Slide the CMP203 into the position in the rack.
• Secure the chassis to the rack by installing the four supplied screws through the
front mounting holes and tightening.
2.2 AC Power Connection
The OmniHub CMP203 to be powered by supplies with operating 120V or 240V systems.
The power supply will automatically detect the system it is connected to. To hook up the
power use the following steps:
• Locate the power cords that are included. Please only use the supplied 3-prong
power connector or one with equal specifications. NEVER tamper with or remove
the grounding pin. This could cause damage to CMP203, personnel, or property.
• Plug the female end of the power cords into the front of the unit.
• Locate a protected outlet to plug the male ends of the power cables into.
To Next Page
