OmniHub CMP203– User Manual
Page 54 of 109

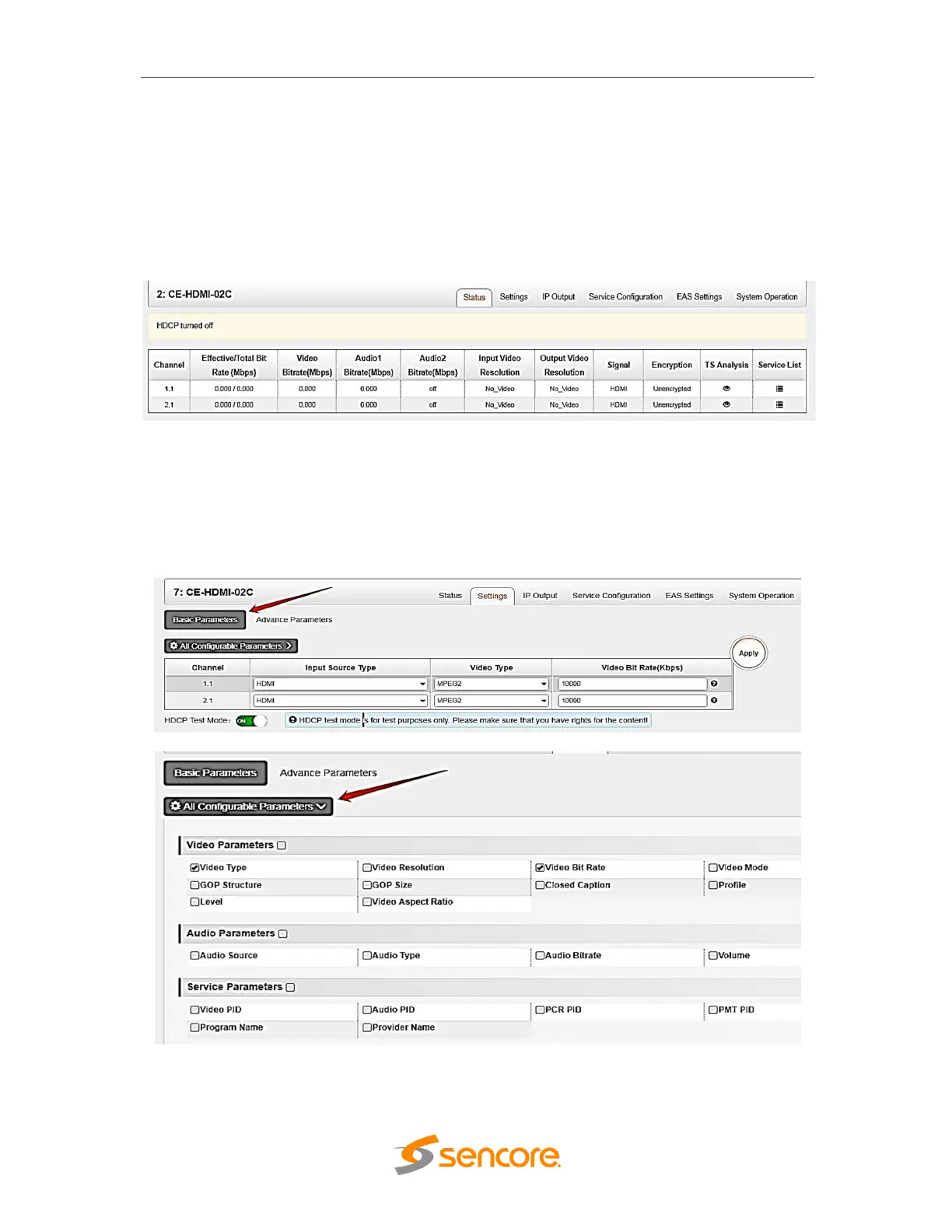

3.3.8.1 Module Status
Module Status for HDMI encoder show the Bitrate on each port when HDMI source is
connected. The Status for CE-HDMI-02 is same with CE-HDMI-00. The diferece are the
number of channel shown in the status and some other parameters not in CE-HDMI-00
like Audio2 Bitrate and the input/output video resolution.
3.3.8.2 Module Settings
Click All Configurable Parameters to see all parameters you can modify and check
what specific parameters you want to set and see. Click the Apply button in the right
side to make the change take effect.
Click All Configurable parameters in the line to set encoding parameters.
