3.3.1.1 Module Status

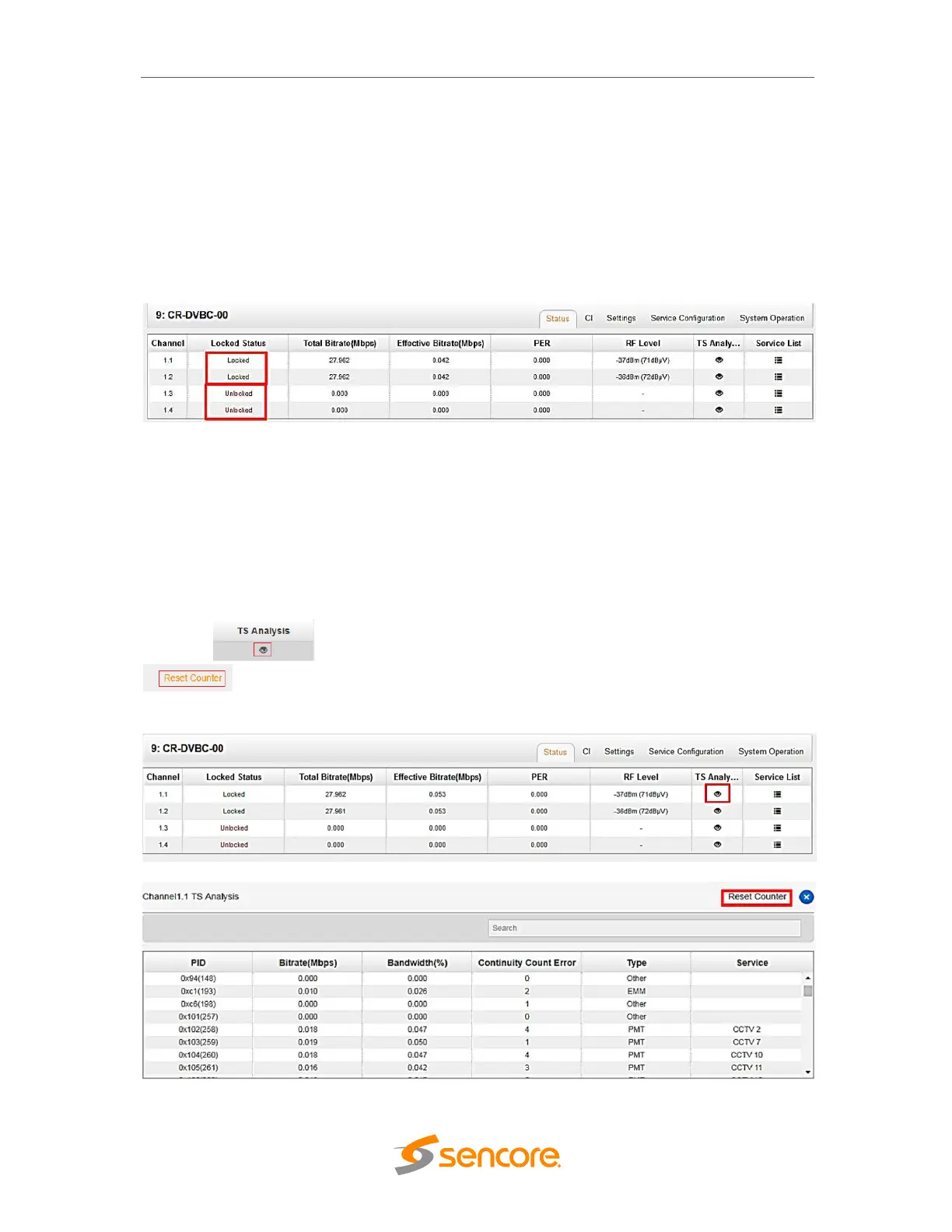

By selecting the CR2-DVBC-00 on the module list, you will be automatically redirect to
the Status page. There will be a table with seven columns on the status page. It shows
the Channel from 1.1 to 1.4 that correspond for the 4 channel input of the module.
Locked Status show the status on each channel, the Status will show Unlocked if there
are no input or wrong parameters and show locked signal if there is signal input and
correct parameters.
Total Bit rate in Mbps show the bitrate on each channel with received signal with
LOCKED status and Effective Bit Rate in Mbps which show the actual bitrate on each
received Channel. RF Level or the signal on the input will show you the level on each
locked channel,
The TS Analysis is same for Baseboard IP input Status and All modules Status. This
can show you the details like PID, of the received channel, and last is Service List that
show the list of services on the received Channel.
Here, you can check the PID and other details on the channel under TS Analysis. You
can click of each channel, you can see TS Bit rate Analysis. Click
to reset the Continuity Count Error counter. In Search bar, you can input key
words or numbers for a quickly finding such as PIDs, Type or Service.
