OmniHub CMP203– User Manual
Page 101 of 109
Constellation 16QAM / 32QAM / 64QAM / 128QAM /
256QAM
Symbol Rate 3.6~6.9Ms/s
Output Level Max. 106dBuV
MER >40dB

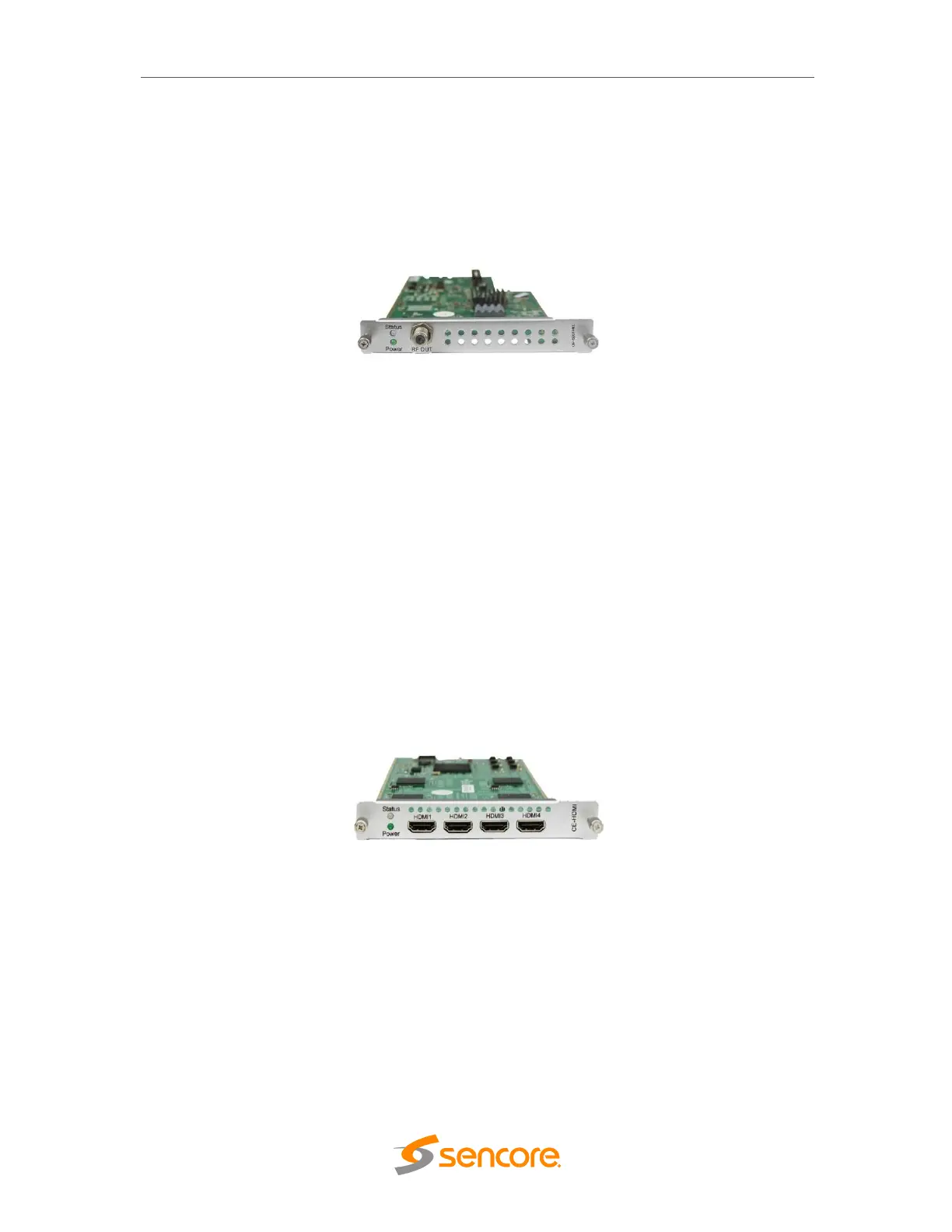

ISDB-T Modulation
Output 4/8 frequencies via 1 RF female
connector, 75Ω
Standard ARIB STD-B31
Frequency Range 57 - 860MHz
Bandwidth 6MHz
Constellation QPSK, 16QAM / 64QAM
Transmission Mode 2K
RS Code RS (204.188)
FEC 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval 1/4, 1/8, 1/16, 1/32
Hierarchy Mode Layer A
Segment Mode Full Seg
Output Level Max. 104dBµV
MER ≥40dB
Encoder Module Specification
HDMI Encoder (Commercial)
Input 4 channels via 4 HDMI female
connectors (HDMI 1.4)
Video H.264/AVC HD: MP/HP@L4.0/4.1/4.2
SD: MP/HP@L3.0/3.1/3.2
Resolution SD: 576i50,
480i59.94
HD: 1080p@25/30,
1080i@50/59.94/60,
720p@50/60
*Output supports progressive format
