OmniHub CMP203– User Manual
Page 103 of 109
HDMI Encoder with YPbPr/CC
Input 2 channels via 2 HDMI or 2
component female connectors (HDMI
1.4)
CC/Component input via DB15 port
Video H.264/AVC HD: MP/HP@L4.0,
SD: MP/HP@L3.0 MPEG-2
SD: MP@ML HD: MP@HL
Resolution SD: 576i50,
480i59.94f
HD: 1080p25/30/50/59.94/60,
1080i50/60,
720p50/60
*The maximum output resolution is
1080i60
Bitrate Control CBR
Video Bitrate 1000 ~ 18,000Kbps
GOP Structure IBBP, IPPP, IBP
GOP Size 6~63
Audio MPEG-1 Layer II, AAC , AC3 . Support
AC2 pass-through and dual audio
encoding.
Audio Mode Stereo (2.0, including downmix)
Sampling Rate 48KHz

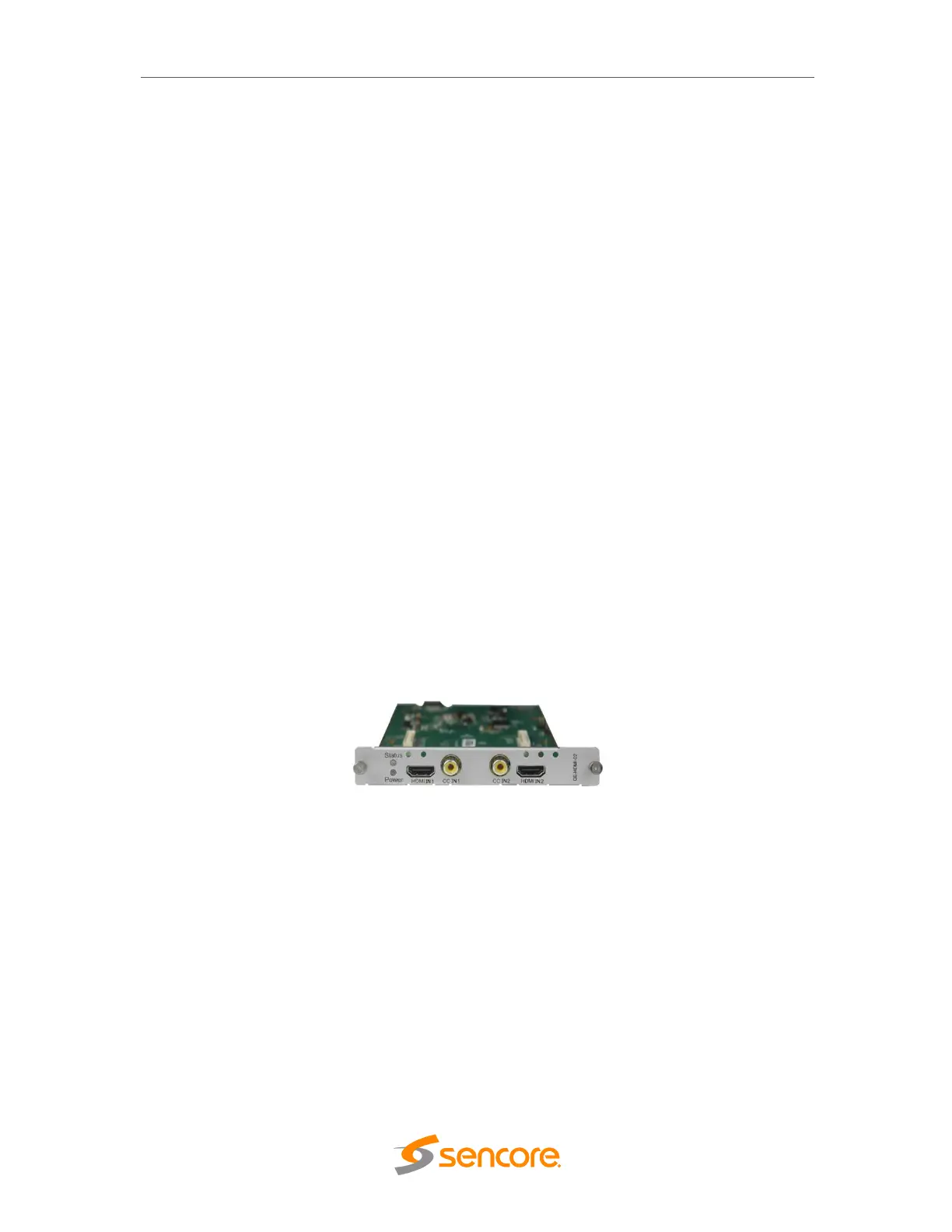

HDMI Encoder with CC
Input 2 channels via 2 HDMI female
connectors (HDMI 1.4)
CC via RCA connector
Video H.264/AVC HD: MP/HP@L4.0
SD: MP/HP@L3.0 MPEG-2 SD:
MP@ML HD: MP@HL
Resolution SD: 576i50,
480i59.94
HD: 1080p@25/30/50/59.94/60,
1080i@50/60,
720p@50/60
*The maximum output resolution is
1080i60
Bitrate Control CBR
