OmniHub CMP203– User Manual
Page 50 of 109
• Enable Destination MAC: Generally, you do not need to enable this option. This
is reserved for exceptional case when the unicast stream cannot be received by
using unicast IP addresses, you can enable destination MAC and streaming out
by setting Destination MAC.

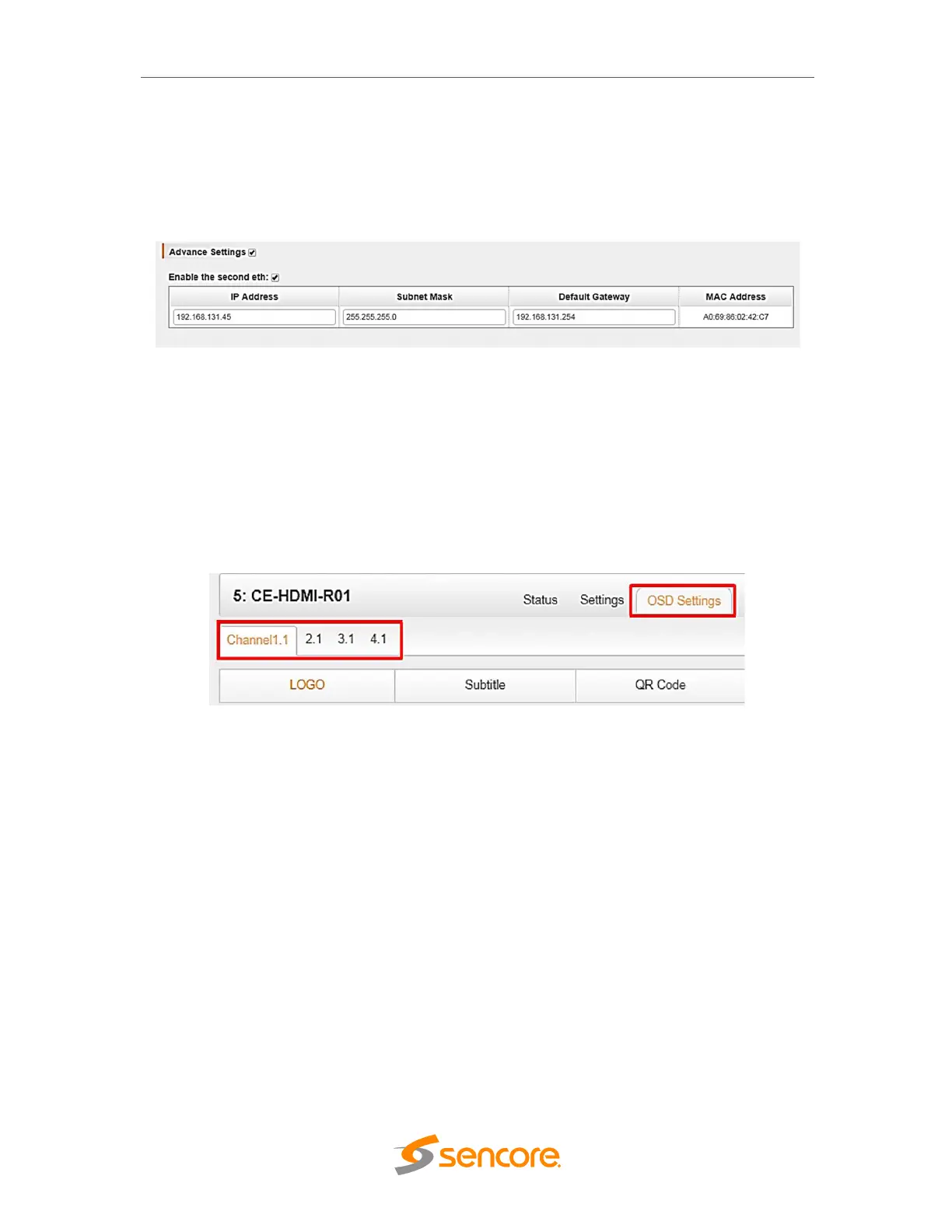

• Advance Setting (only available in CE2-HDMI-00):
The second eth is reserved for you to output IP stream in an another different VLAN,
enable the second eth and set IP Address, Subnet Mask, Default Gateway in the
same segment of the Unicast IP (the another different VLAN), you can output Unicast
stream to the another VLAN.
3.3.7.4 OSD Settings
(only available in the CE2-HDMI-R01 module)
You should choose channel first before you set OSD.
• LOGO setting: you can upload several pictures at the same time, and pick one to
show on the screen, when you click the one you want to show that picture field will
turn to green.
