OmniHub CMP203– User Manual
Page 62 of 109
3.3.10.1 Module Status

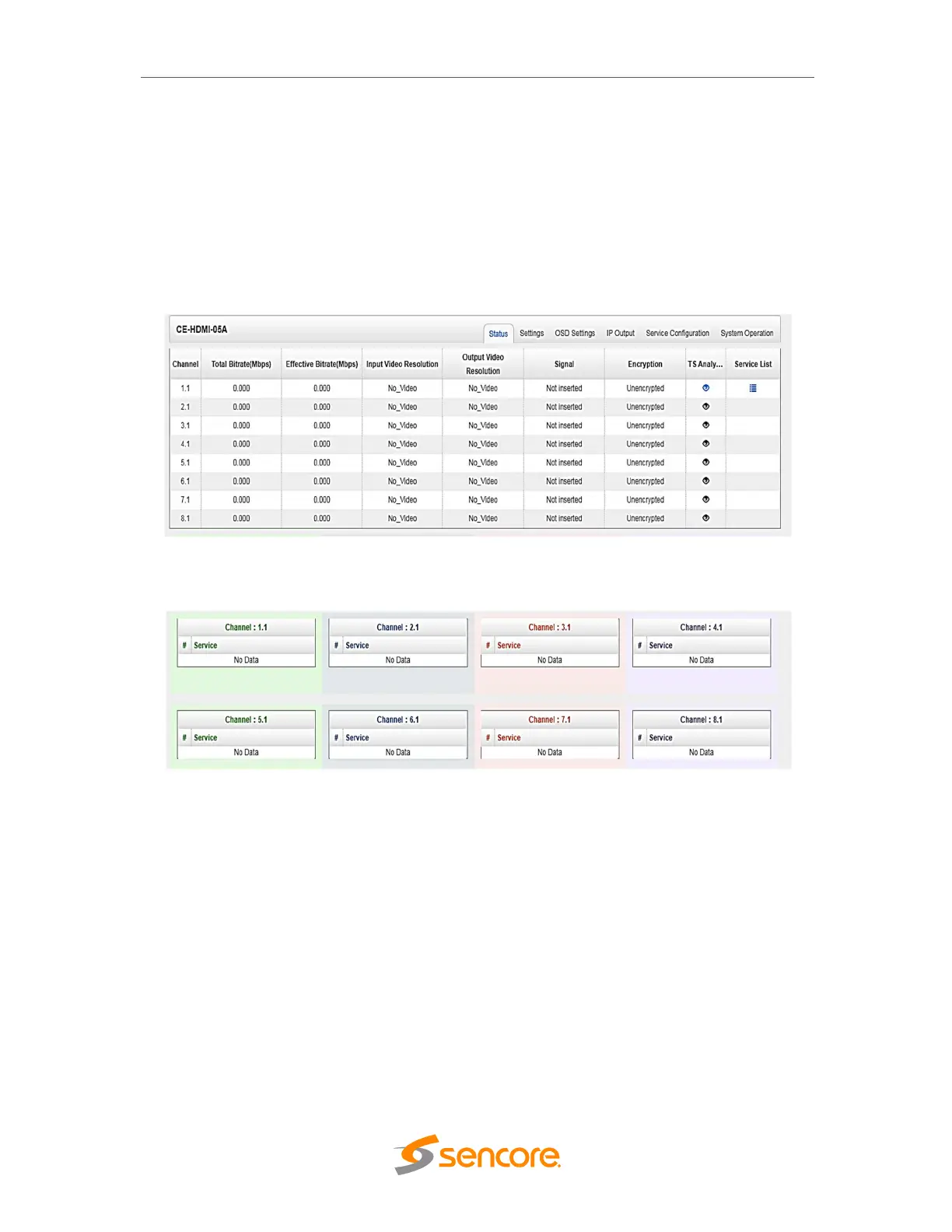

Like the other Hdmi encoder module. The Status of CE2-HDMI-05/05A show the Bitrate,
input and output Resolution, TS analysis and Service list in each channel as shown in
the image below.
3.3.10.2 Module Settings
For the Module Setting, please refer to CE2-HDMI-01 at page 45 for reference. See
below screenshot of the module Setting page.
