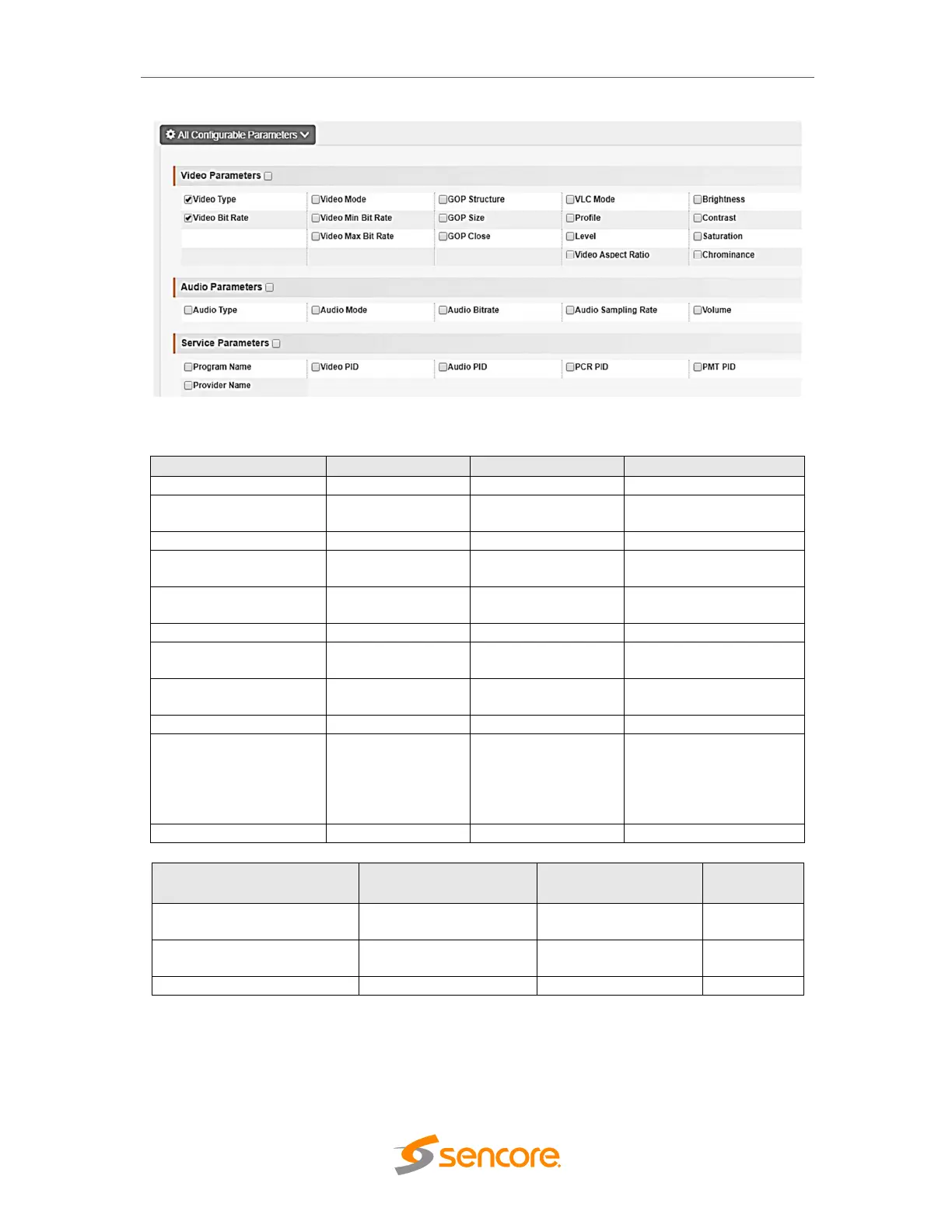

Click All Configurable Parameters in the line to set encoding parameters.
Name
Ra
nge
Name
Range
Video Type
H264, MPEG2
Service Name
Length is 1~16
Video Bitrate (Kbps)
600~20000
Service Provider
Name
Length is 1~16
Video Mode
CBR, VBR
Brightness
0~255
Video Max Bitrate
(Kbps)
0
Contrast
0~255
Video Min Bitrate
(Kbps)
20000
Saturation
0~255
Video PID
32~8190
Hue
-180~180
GOP Structure
IPPB, IPPP, IBP
VLC Mode
CABAC
CAVLC
GOP Size
6~63
Profile
HIGH / MAIN (H.264)
MAIN (MPEG-2)
GOP Close
Disable, Enable
Level
3.0,3.1,3.2
PCR PID
32~8190
Video Aspect
Ratio
Auto
16x9_LetterBox
16x9_CutOff
4x3_PillarBox
4x3_CutOff
PMT PID
32~8190
Audio Encoder Details
Range
Audio Encoder
Details
Range
Encoding Type
MPEG1_Layer2
Audio Sampling
Bitrate (KHz)
48
Audio Mode (AC3)
Dual Channel/Mono/
Stereo
Audio PID
32~8190
Encoding Bitrate (Kbps)
64~384
Volume Setting
0.00~8.00
CE2-CVBS-R01 /R01A>Settings
CE2-CVBS-R01 module has 8 channels with 2 DB15 connectors and CE2-CVBS-R01A
module has 16 channels with 4 DB15 connectors. The configuring of them are similar to
CE2-CVBS-00, there are a few differences on parameter setting range.
