SP395 SoundPro Audio Integrator Form7492 Operation Manual
10

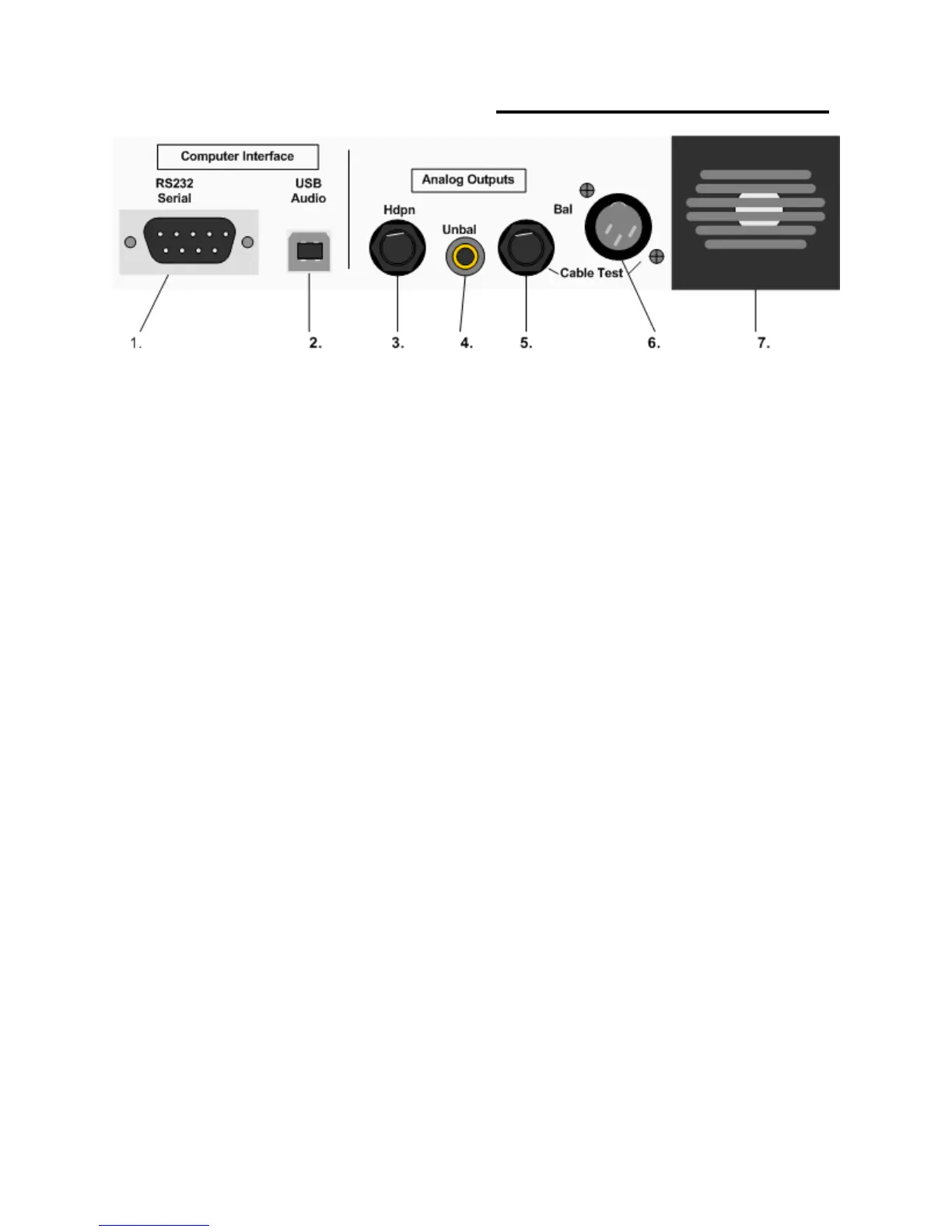

Left Side Panel – Output Description
1. RS232 Computer Interface Connector: Serial DE-9 connector. Interfaces instrument to
computer for use with automation software and for the purpose of updating unit firmware
to factory changes.
2. USB Audio Connector: Provides USB connection for digital audio signals.
3. Stereo Headphone (Hdpn) Output Jack: ¼ inch headphone jack. Provides stereo audio
monitoring with headphone.
4. RCA Phono Audio Output Jack: Provides unbalanced audio output through female
RCA phono jack.
5. Balanced mono Audio Output Jack: Provides balanced audio output through a ¼ inch
headphone jack (TRS).
6. Balanced XLR Audio output: XLR jack male, Provides a balanced mono audio output.
Jack also used for Cable Test output.
7. Internal Speaker: Provides audio output to monitor input audio to instrument or audio
generated and output by instrument.
