SP395 SoundPro Audio Integrator Form7492 Operation Manual
92
TOOLS
The Tools menu of the SP395 incorporates a full-function two-
way USB audio interface. This allows routing the audio from the
mic/line inputs of the SP395 to a computer through a USB port
connection. It further provides receiving USB audio from a
computer, and routing it to the main output of the SP395.

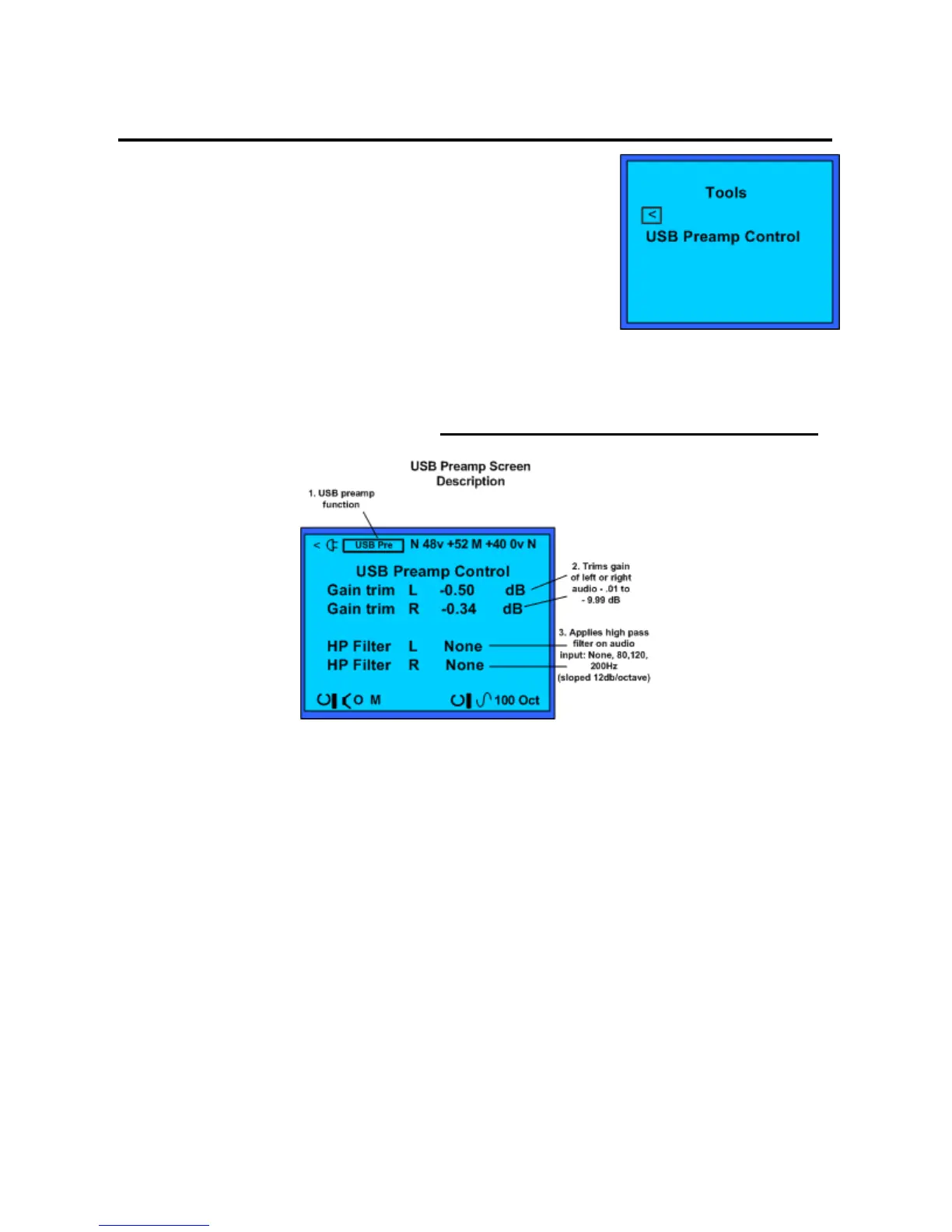

USB Preamp Display & Control
1. USB Preamp Function – Indicates USB Preamp display screen with control fields.
2. Left & Right Audio USB Level Attenuator Control – Decreases the level of the left
and right USB audio.
3. Left & Right Channel High Pass Filter Select – Selects None, 80 Hz, 120 Hz or 200
Hz high pass filter in the USB audio signal path.
