8 Appendix
HB-005615-j
84

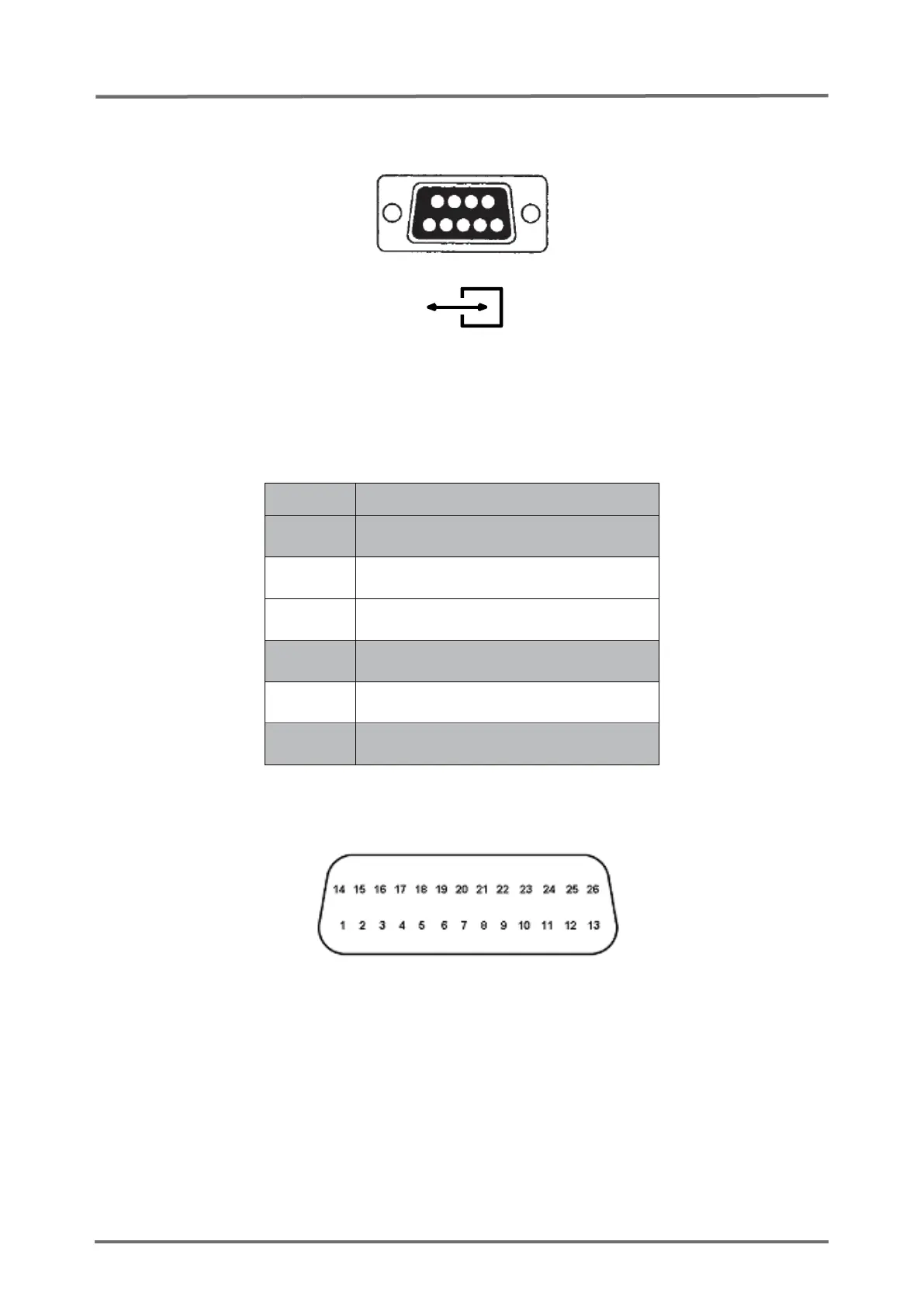

8.9.2 The Serial Data Port (RS-232)
1 5
6 9
Figure 19 Serial Data Port (RS-232)
Table 12 Pin Assignment, Serial Data Port (RS-232)
Pin(s)
Signal
1
(reserved)
2
Transmitted Data (TX, from SDM)
3
Received Data (RX, to SDM)
4
(reserved)
5
Signal Ground
6 – 9
(reserved)
8.9.3 Multipurpose I/O Port
Figure 20 Multipurpose I/O Port
