2.4

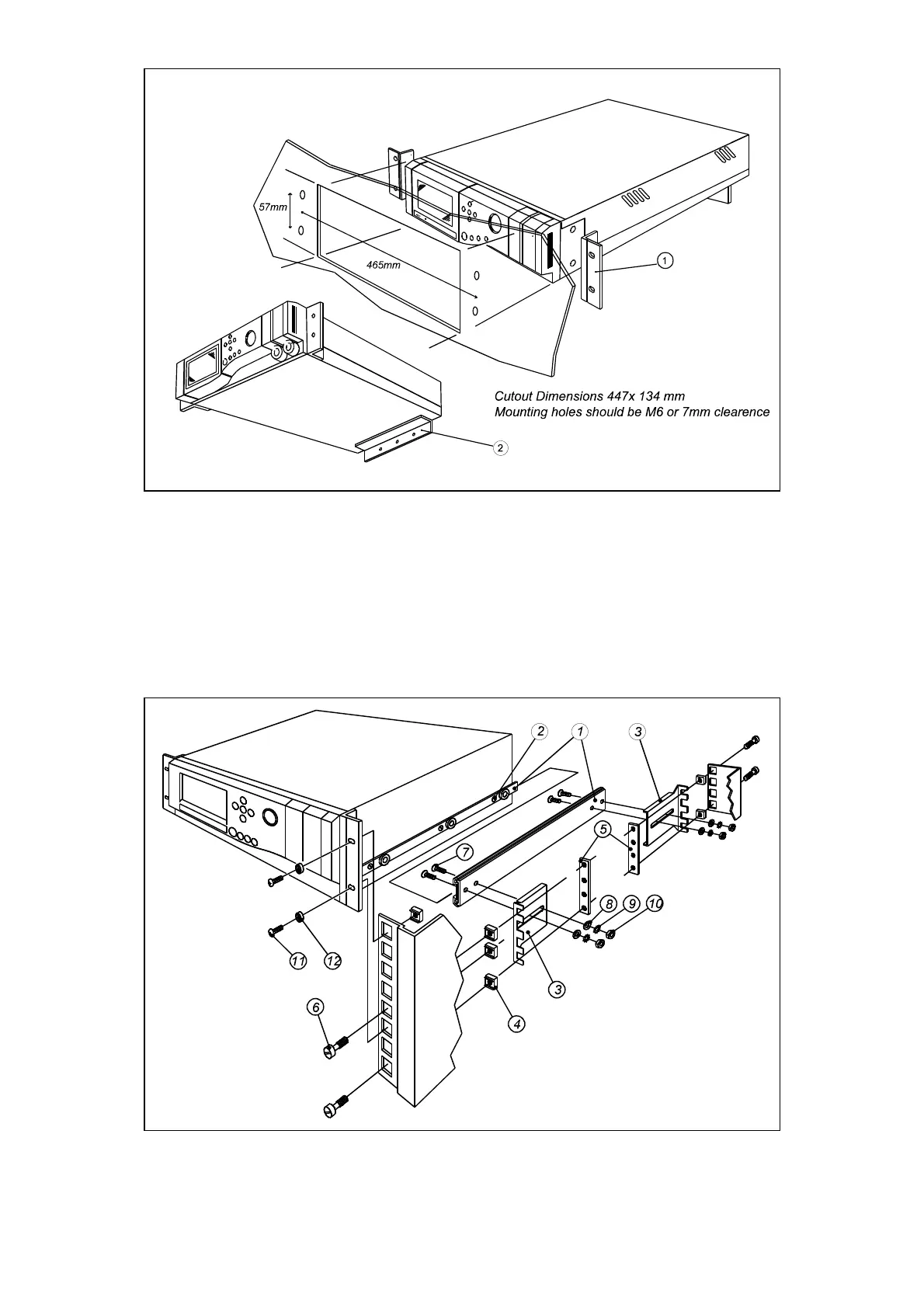

Figure 2.2 Panel mounting detail.

Figure 2.3 Rack installation exploded view

2.4 Rack slide mounting installation

See Figure 2.3 and Table 2.1. The 19" optional rack slide mount version is supplied

with a mounting kit which includes either long or short slides and rack mounting

brackets. Do not attempt to support or carry the analyser by the rack mount brackets.

The analyser is suitable for installation in most standard rack types including Schroff

and Rittall
