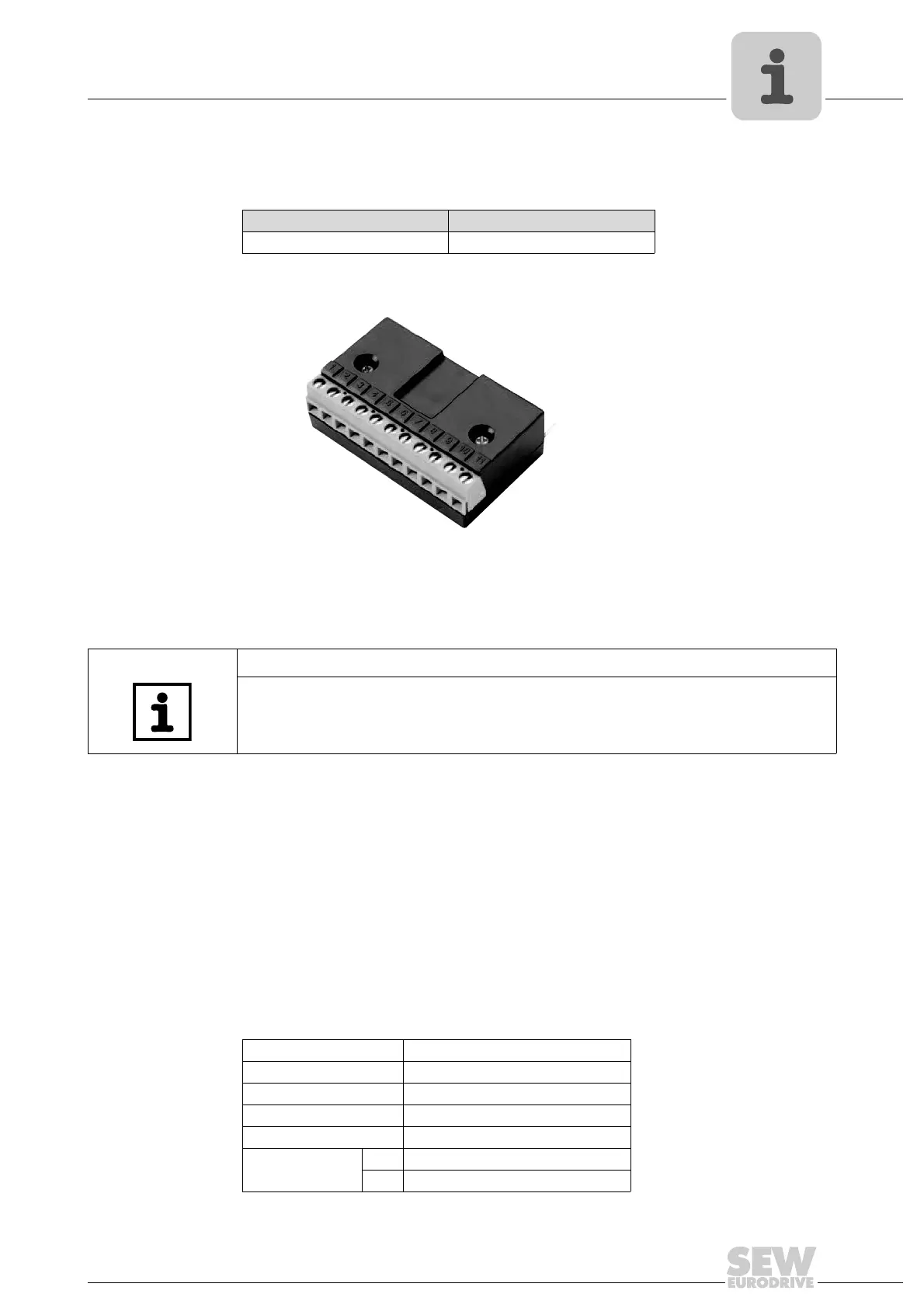

Supported unit types
Second Analog Input
4 Second Analog Input
4.1 Supported unit types
4.2 Overview
The second analog input can be used in applications where the speed reference for the
drive is required to be switched between 2 analog references.
The typical application is where a drive is controlled remotely using a current reference
but needs to have a local option of control, usually with a potentiometer.
4.3 Technical data
Type Part number
OB LT 2ANIN 1820 1547
64759AXX
TIP
This option is only available for MOVITRAC
®
LTE-A.
Analog input 1 DC ±10 V, 4 – 20 mA
Analog input 1 DC
±10 V, 4 – 20 mA
Maximum input voltage DC
±50 V
Ambient temperature –10 – +50 °C
Conformity IP00, UL94V-0
Dimensions [mm] 56 × 24 (not pins) × 14
[in] 2.20 × 0.98 (not pins) × 0.56
