Supported unit types
Converter card
9 Converter card
9.1 Supported unit types
This option is available for the following products:
• MOVITRAC
®
LTE-B
• MOVITRAC
®
LTP
9.2 Overview
There are 2 versions of the module:
• 110 V version for voltages ranging from AC 100 – 120 V
• 230 V version for voltages ranging from AC 200 – 240 V
The converter card allows the digital inputs of the drive to be controlled directly from a
110 V or 240 V control supply without the need for interfacing relays.
Type Part number Description
OB LT VCON A 1821 7672 110 V / 24 V converter
OB LT VCON B 1822 1947 240 V / 24 V converter

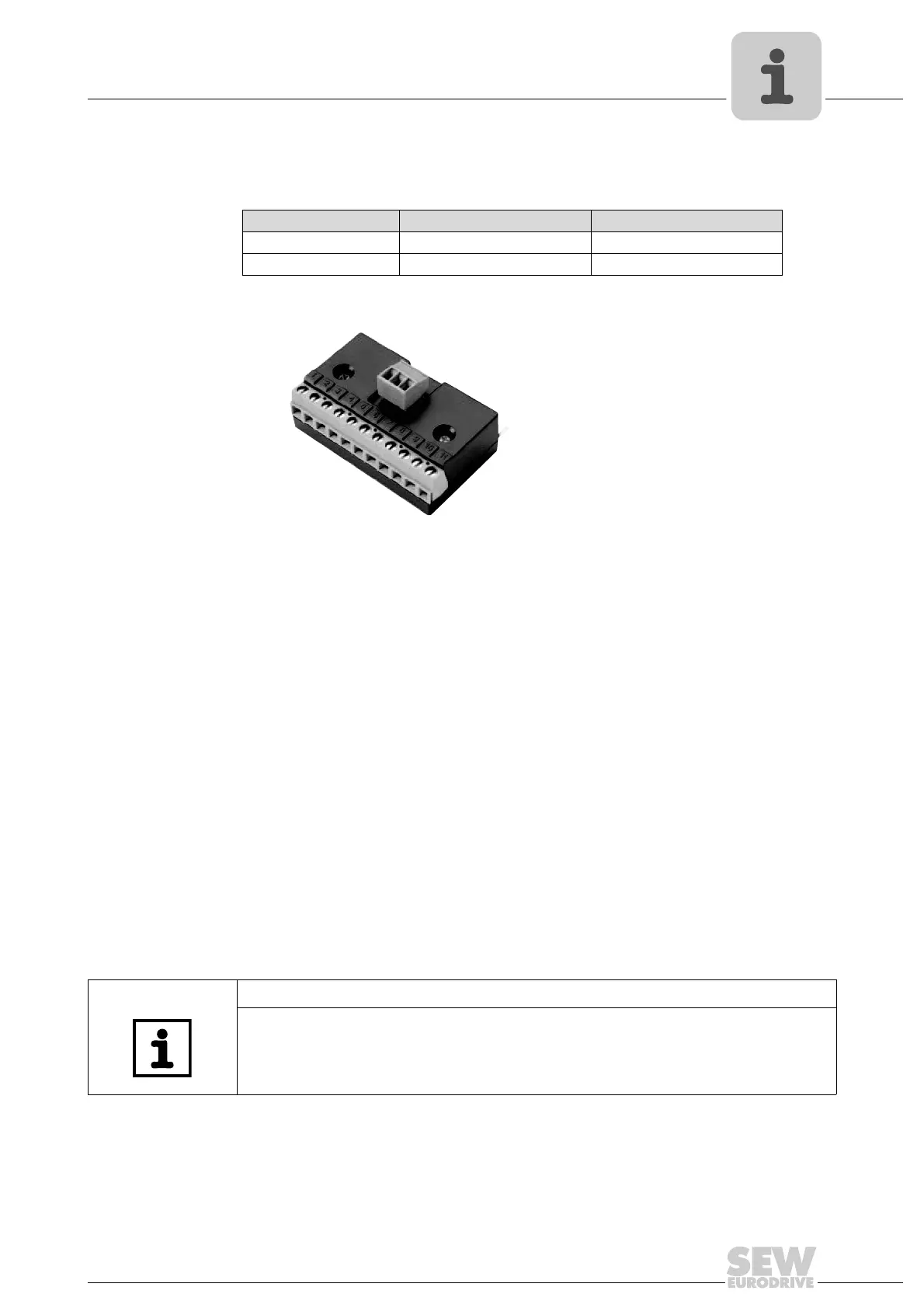

64760AXX
TIP
The existing analog input can still be used by connecting the analog signal input on
terminal 6. Alternatively a 4th AC 110 V or AC 230 V digital input can be connected via
the removable plug. All other inputs and outputs to the drive are not affected.
Analog input and digital input 4 cannot be used simultaneously.
