26
Operating Instructions – MOVITRAC® LT Option Cards
7
Electrical interface
Two indicator relay

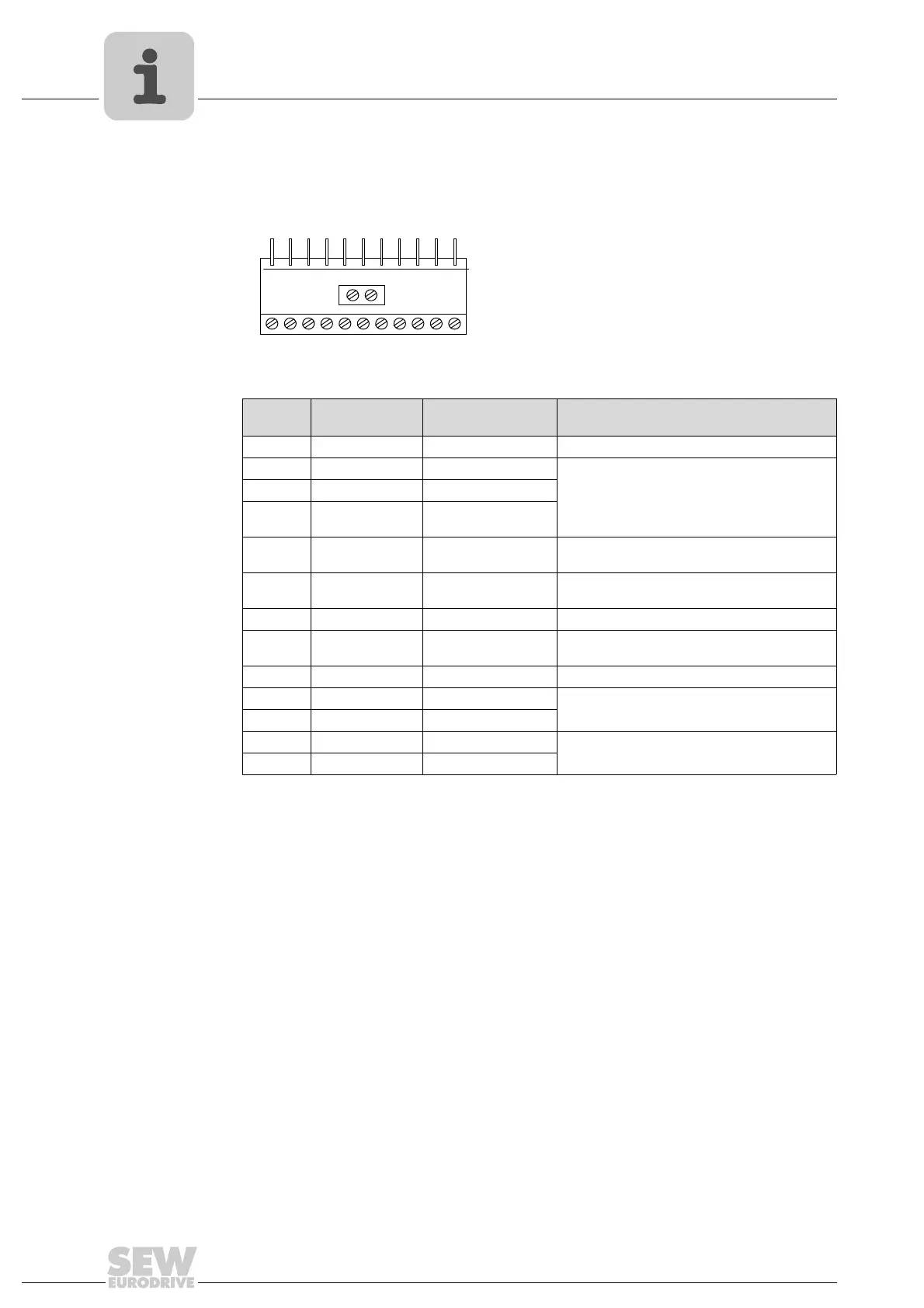

7.3 Electrical interface
64748AXX
Terminal
no.
Signal Connection Description
1 +24 V +24 V ref out Ref. to activate DI1 – DI3 (100 mA max.)
2 DI 1 Digital input 1 Positive logic
"Logic 1" input voltage range: DC 8 – 30 V
"Logic 0" input voltage range: DC 0 – 2 V
Compatible with PLC requirement when 0 V is
connected.
3 DI 2 Digital input 2
4 DI 3 Digital input 3 /
thermistor contact
5 +10 V +10 V ref out 10 V ref for analog input
(pot supply +, 10 mA max., 1 K Ω min.)
6 AI / DI Analog input (12 bit)
Digital input 4
0–10 V, 0–20mA, 4–20 mA
"Logic 1" input voltage range: DC 8 – 30 V
7 0 V 0 V common 0 V ref for analog input (pot supply –)
8 AO / DO Analog output (10 bit)
Digital output
0–10V, 20mA analog
24 V / 20 mA digital
9 0 V 0 V common 0 V ref for analog output
10 Relay 1 contact Relay contact N.O. relay contact (AC 250 V / DC 30 V @ 1 A)
11 Relay 1 common Relay common
12 Relay 2 contact Relay contact N.O. relay contact (AC 250 V / DC 30 V @ 1 A)
13 Relay 2 common Relay common
12
3456
12 13
7891011
