6.1 Supported unit types
This option is only available for MOVITRAC
®
LTP.
6.2 Overview
This plug-in module provides 2 additional relay outputs. Relay 1 and 2 can be
programmed via parameters (see following list).
The function of the 3rd relay output is fixed to represent "Drive healthy". By using the
N.O. / N.C. contacts the 3rd relay output can represent both "Drive healthy" or "Drive
fault".
The functions of the 1st and 2nd relay output are programmable in the drive and can be
any of the following (set in parameters P2-11 & P2-13):
• Drive enabled
• Drive healthy
• Motor at target speed
• Motor speed >0
• Motor speed > limit
• Motor torque or motor current > limit
• 2nd analog input > limit
Type Part number

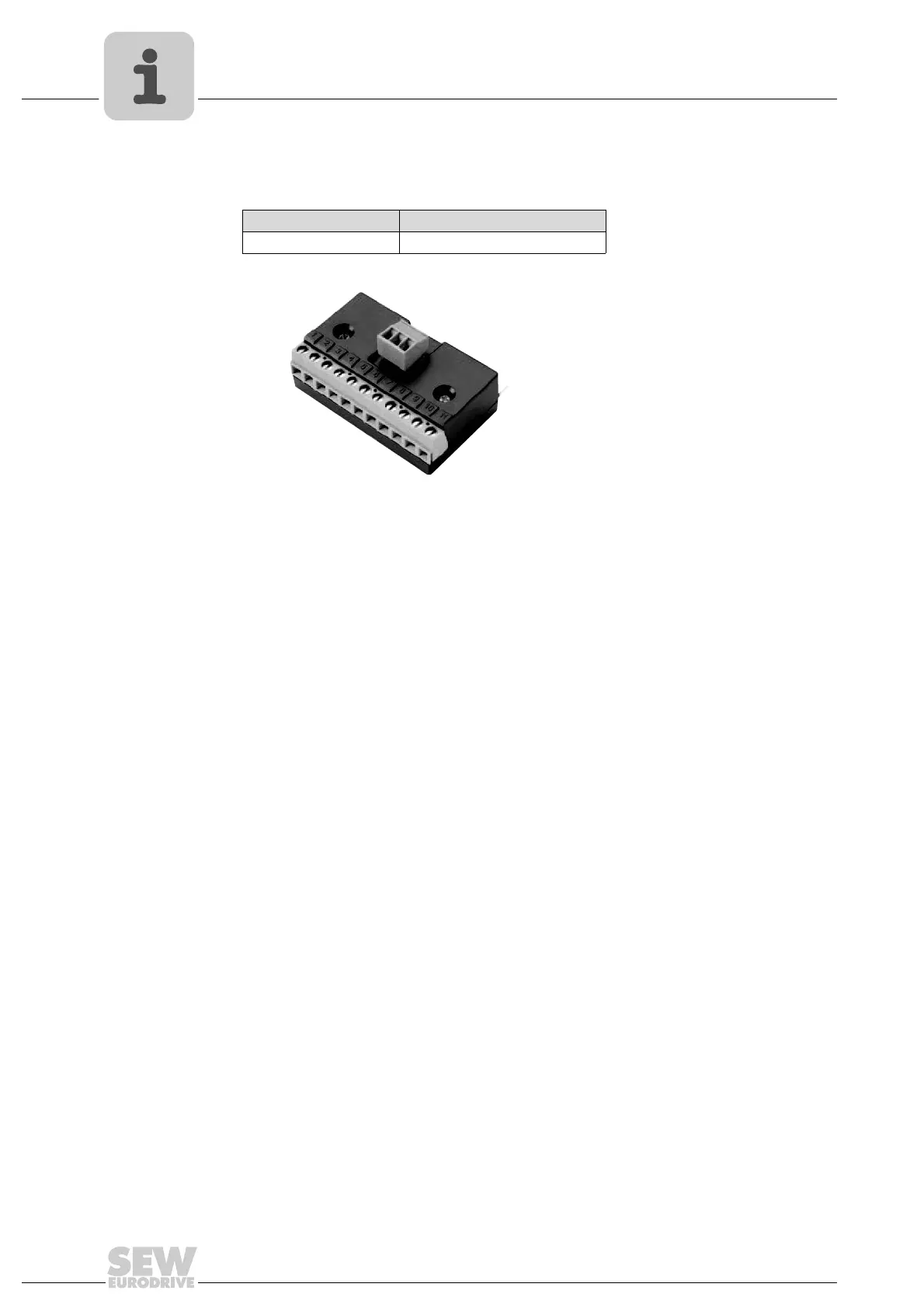

LT 3RO 00A 18208762
64760AXX
