Manual – MOVI-PLC® advanced DHE41B/DHF41B/DHR41B Controller
15
4
Mounting MOVI-PLC® advanced DH.41B in MOVIDRIVE® MDX61B
Mounting/Installation Instructions

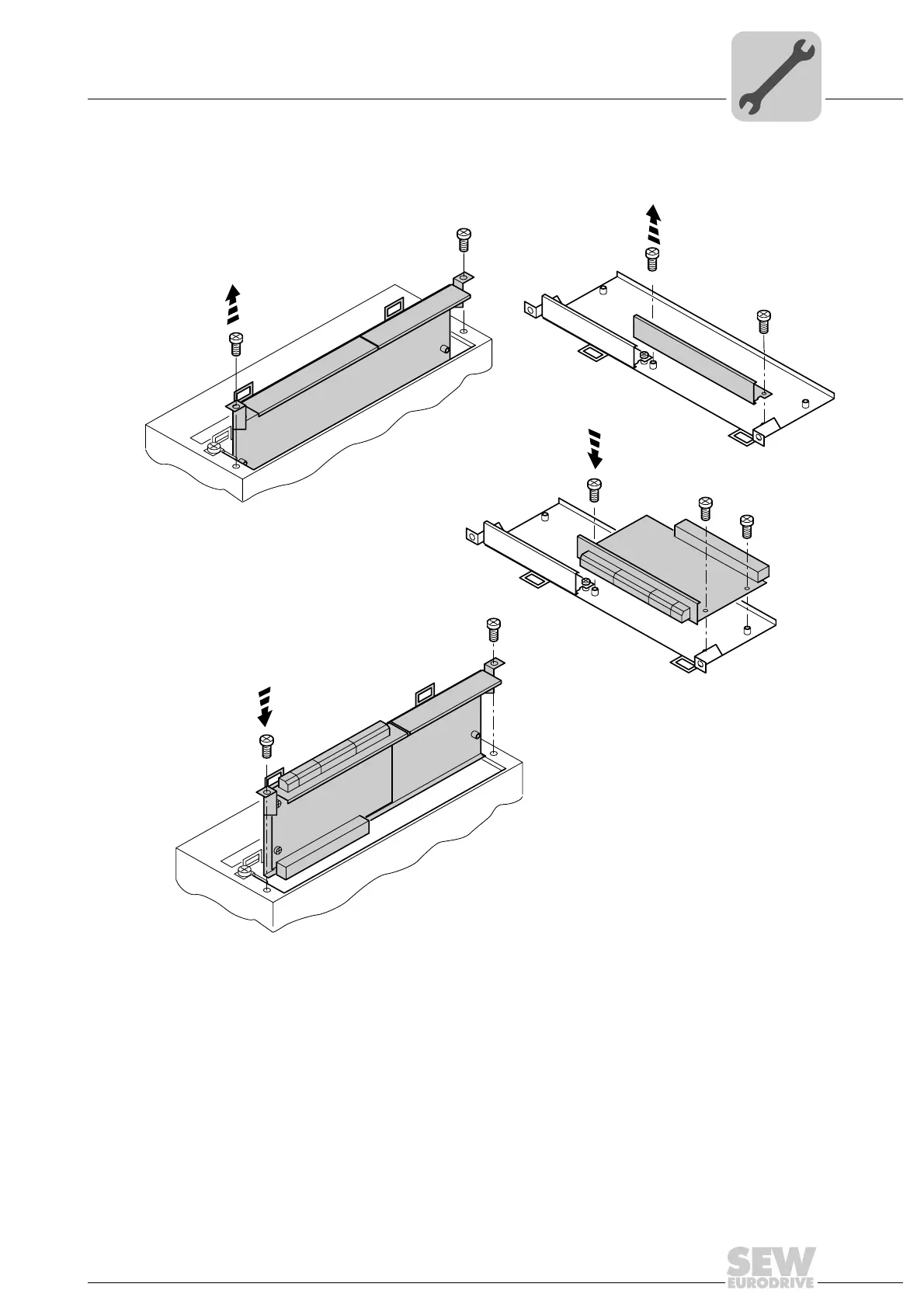

Basic procedure for installing and removing an option card in/from MOVIDRIVE
®
MDX61B
1. Remove the retaining screws holding the card retaining bracket. Pull the card retain-
ing bracket out evenly from the slot (do not twist).
2. Remove the retaining screws of the black cover plate on the card retaining bracket.
Remove the black cover plate.
3. Position the option card onto the retaining bracket so that the retaining screws fit into
the corresponding bores on the card retaining bracket.
4. Insert the retaining bracket with installed option card into the slot, pressing slightly so
it is seated properly. Secure the card retaining bracket with the retaining screws.
5. Follow the instructions in reverse order when removing the option card.
53001AXX
1.
4.
3.
2.
